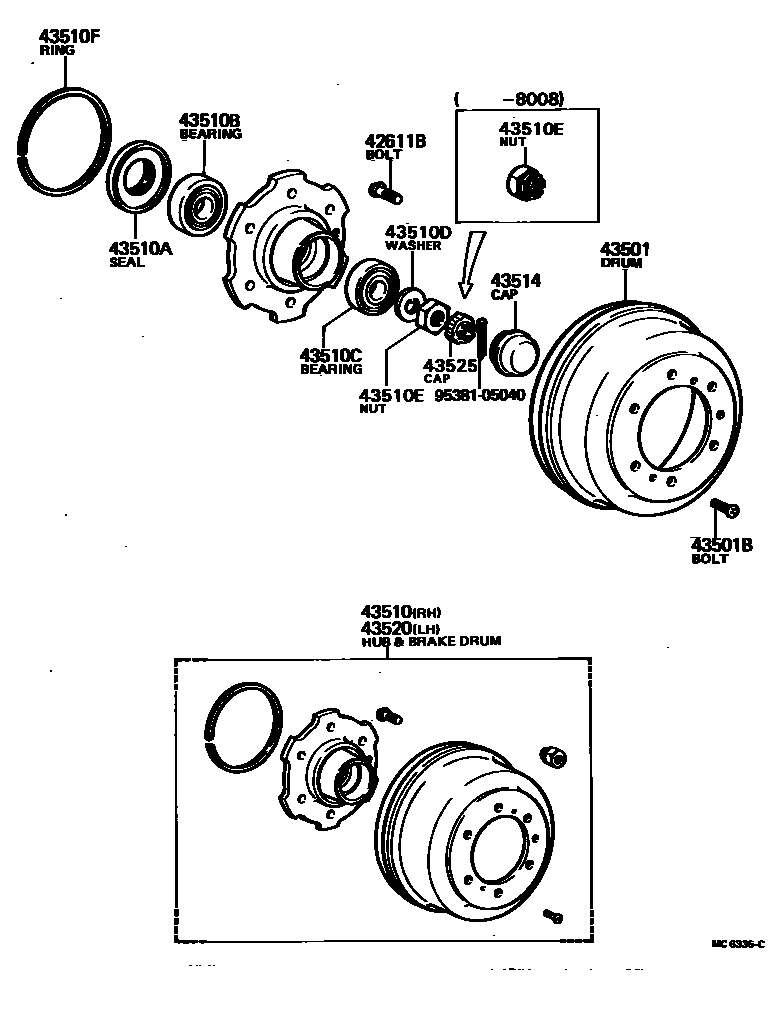

Toyota DYNA — FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90039-12003iBU40,41,5#¥720198204-198408

RH

main90039-12004iBU40,41,5#¥720198204-198408

LH

main90942-02024iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50¥590197708-198408

RH

main90942-02025iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50¥590197708-198408

LH

main90942-02039iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥620197708-198008

RH

main90942-02040iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥620197708-198008

LH

main90942-02045iBU2#,30,32,34,35,36,37,45,46..H50¥300198008-198408

RH

main90942-02046iBU2#,30,32,34,35,36,37,45,46..H50¥300198008-198408

LH

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36020iBU20..ST;BU30..M50;BU20..T2,TW2¥16,500197708-198006

main43512-36030iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥19,700197708-198008

main43512-36040iBU2#,30,32,34,35,36,37,45,46..H50¥18,500198008-198309

sub43512-36041¥18,500

main43512-36041iBU2#,34,37,46..H50¥18,500198309-198408

main43512-36060iBU20,22,30,33,35,36,37..H51,M50¥18,000198006-198408

main43512-36080iBU40,41,5#¥26,800198204-198304

sub43512-36081¥26,800

main43512-36081iBU41,51¥26,800198304-198408

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10015iBU20..ST;BU20..T2,TW2;BU30,36..H51,M50¥200197708-198206

sub90113-10035¥110

main90113-10035iBU20,22,30,33,36,37..H51,M50¥110198206-198408

main91111-51016iBU40,41,5#¥160198204-198408

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36050iBU20..ST;BU30..M50;BU20..T2,TW2¥39,900197708-198006

sub43510-36051¥40,000

main43510-36051iBU20,22,30,33,35,36,37..H51,M50¥40,000198006-198408

sub43510-36110¥44,300

main43510-36060iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL197708-198008

main43510-36070iBU2#,30,32,34,35,36,37,45,46..H50¥51,300198008-198309

sub43510-36071¥51,200

main43510-36071iBU2#,34,37,46..H50¥51,200198309-198408

main43510-36100iBU40,41,5#¥63,900198204-198304

sub43510-36101

main43510-36101iBU41,51198304-198408

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001iBU40,41,5#¥820198204-198408

main90311-68001iBU2#,3#,45,46¥810197708-198408

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU2#,3#,45,46¥3,450197708-198408

main90368-50001iBU40,41,5#¥4,580198204-198408

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU2#,3#,45,46¥1,920197708-198408

main90368-35001iBU40,41,5#¥2,420198204-198408

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU2#,3#,45,46¥220197708-198408

main90214-33001iBU40,41,5#¥330198204-198408

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU2#,3#,45,46¥410198008-198408

main90171-26001iBU2#,3#¥540197708-198008

main90171-33001iBU40,41,5#¥500198204-198408

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iBU20..ST;BU20..T2,TW2;BU22,30,33,36,37..H51,M50¥320197708-198408

43514CAP, FRONT HUB GREASE

main43514-36030iBU2#,3#,45,46¥600197708-198408

main43514-37020iBU40,41,5#¥390198204-198408

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36050iBU20..ST;BU30..M50;BU20..T2,TW2¥39,900197708-198006

sub43520-36051¥40,000

main43520-36051iBU20,22,30,33,35,36,37..H51,M50¥40,000198006-198408

sub43520-36110¥44,300

main43520-36060iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL197708-198008

main43520-36070iBU2#,30,32,34,35,36,37,45,46..H50¥51,300198008-198309

sub43520-36071¥51,100

main43520-36071iBU2#,34,37,46..H50¥51,100198309-198408

main43520-36100iBU40,41,5#¥63,900198204-198304

sub43520-36101

main43520-36101iBU41,51198304-198408

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU2#,3#,45,46¥570198008-198408

9538105040

main95381-05040¥80

14 parts on this diagram · 4 diagrams in section
