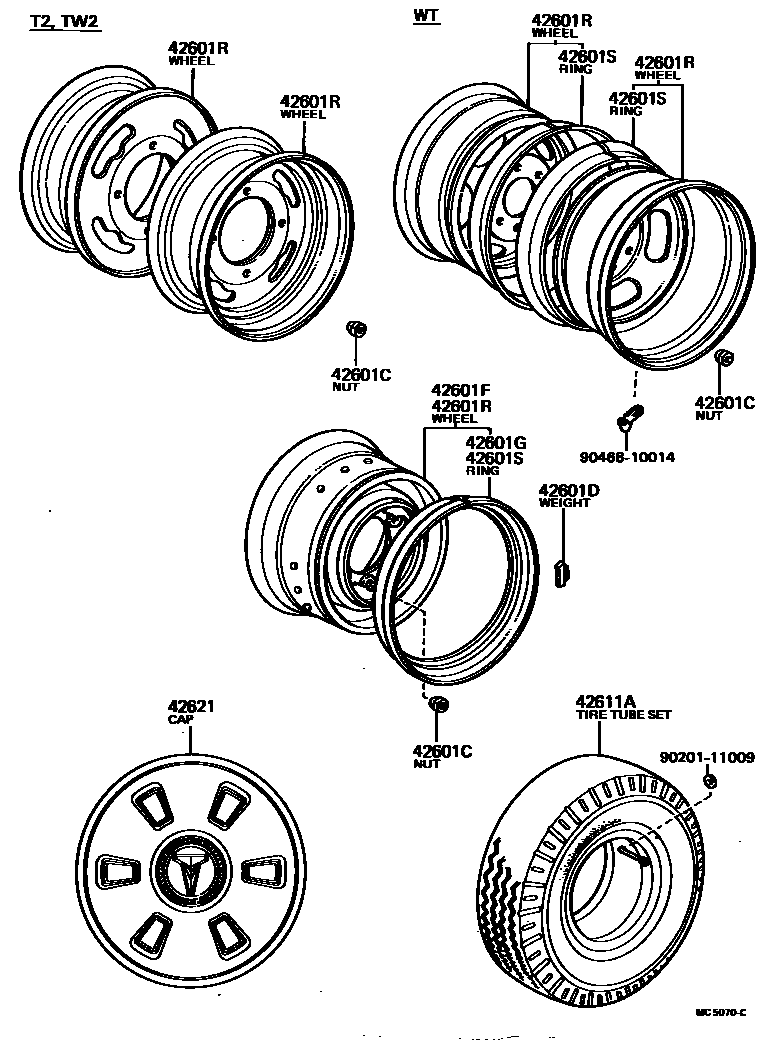

Toyota DYNA — DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main42633-37010iBU40,41,5#¥710198204-198408

RR,RH

main42633-55030iBU2#,30,32,34,35,36,37,45,46..H50¥710198008-198408

RR,RH

main42634-37010iBU40,41,5#¥710198204-198408

RR,LH

main42634-55030iBU2#,30,32,34,35,36,37,45,46..H50¥710198008-198408

RR,LH

main90039-11002iBU40,41,5#¥470198204-198408

RH

main90039-11003iBU40,41,5#¥470198204-198408

LH

main90942-01010iBU2#,3#..WT¥350197708-198008

RR,RH

main90942-01010iBU20,22,30,33,35,36,37..(H51,M50)..WT¥350198008-198408

RR,RH

main90942-01011iBU20,22,30,33,35,36,37..(H51,M50)..WT¥350198008-198408

RR,LH

main90942-01011iBU2#,3#..WT¥350197708-198008

RR,LH

main90942-01012iBU2#,3#¥400197708-198008

FR,RH

main90942-01012iBU20,22,30..ST¥400197708-198408

RR,RH

main90942-01012iBU20,22,30,33,35,36,37..H51,M50¥400198008-198408

FR,RH

main90942-01013iBU20,22,30..ST¥400197708-198408

RR,LH

main90942-01013iBU20,22,30,33,35,36,37..H51,M50¥400198008-198408

FR,LH

main90942-01013iBU2#,3#¥400197708-198008

FR,LH

main90942-01023iBU2#,30,32,34,35,36,37,45,46..H50¥850198008-198408

FR,RH

main90942-01024iBU2#,30,32,34,35,36,37,45,46..H50¥850198008-198408

FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iBU2#,3#,45,46¥230197708-198408

�Q�O�f,20G

sub90942-03079¥370

main90942-03047iBU2#,3#,45,46¥250197708-198408

�S�O�f,40G

sub90942-03081¥430

main90942-03049iBU2#,3#,45,46¥300197708-198408

�U�O�f,60G

sub90942-03083¥480

main90942-03050iBU2#,3#,45,46¥240197708-198408

�R�O�f,30G

sub90942-03080¥380

main90942-03051iBU2#,3#,45,46¥320197708-198408

�W�O�f,80G

sub90942-03085¥540

main90942-03052iBU2#,3#,45,46¥270197708-198408

�T�O�f,50G

sub90942-03082¥450

main90942-03053iBU2#,3#,45,46¥350197708-198408

�P�O�O�f,100G

sub90942-03086

main90942-03064iBU2#,3#,45,46¥310197708-198408

�V�O�f,70G

sub90942-03084¥520

main90942-03067iBU40,41,5#¥260198204-198408

�T�O�f,50G

main90942-03068iBU40,41,5#¥350198204-198408

�P�O�O�f,100G

main90942-03069iBU40,41,5#¥470198204-198408

�P�T�O�f,150G

main90942-03070iBU40,41,5#¥620198204-198408

200G

main90942-03071iBU40,41,5#¥710198204-198408

250G

42601FWHEEL, DISC (FOR FRONT)

main42610-36040iBU31¥13,000197708-198008

5.50F-16,TOPY

main42610-36130iBU2#,30..H50;BU20..T3..03S..WT..ATP..DSL¥13,000197708-198008

5.50F-16,TOPY

main42610-36140iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50¥12,800197708-198408

�T�D�T�O�e�w�P�T,5.50F-15,TOPY

main42610-36220iBU36,37..GTP¥13,000198204-198408

�T�D�T�e�|�P�U,5.50F-16,TOPY

main42610-36220iBU2#,30,32,34,35..H50¥13,000198008-198408

�T�D�T�e�|�P�U,5.50F-16-108,TOPY

main42610-36230iBU21,23..FTP¥13,000198204-198408

�`�e�i�@�P�U�w�T�D�T�O�e,5.50F-16-115,TOPY

main42610-36230iBU45,46;BU36,37..275,30T¥13,000198009-198408

�`�e�i�@�P�U�w�T�D�T�O�e,5.50F-16,TOPY

main42610-36270iBU40,41,5#¥17,500198204-198408

6.00GS-16

sub42610-36272¥17,400

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-35010iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50¥2,320197708-198408

5.50F-15,TOPY

main42613-36010iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥2,130197708-198008

5.50F-16,TOPY,GRAY

sub42613-36080¥3,370

main42613-36020iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥4,130197708-198008

5.50F-16,CHUOSEIKI

sub42613-60080¥2,610

main42613-36060iBU20,22,30..ST¥3,330197708-198408

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36080iBU2#,30,32,34,35,36,37,45,46..H50¥3,370198008-198408

5.50F-16,TOPY,BLACK

main42613-37020iBU40,41,5#¥6,500198204-198408

42601RWHEEL, DISC (FOR REAR)

main42601-25140iBU20,22,30,33,35,36,37..(H51,M50)..WT¥13,100198008-198408

4.5J-14,TOPY

main42601-36210iBU20,22,30,33,35,36,37..T2,TW2¥12,200197708-198408

�P�R�w�S�D�T�i,4.5J-13,TOPY

main42610-36040iBU31¥13,000197708-198204

5.50F-16,TOPY

main42610-36130iBU2#,30..H50;BU20..T3..03S..WT..ATP..DSL¥13,000197708-198008

5.50F-16,TOPY

main42610-36140iBU20..ST..20T¥12,800197708-198204

�T�D�T�O�e�w�P�T,5.50F-15,TOPY

main42610-36140iBU20,22..ST¥12,800198204-198408

�T�D�T�O�e�w�P�T,5.50F-15,TOPY

main42610-36160iBU20,22,30..ST¥18,100197708-198408

�U�D�O�O�f�r�w�P�T,6.00-GS-15,TOPY

main42610-36220iBU36,37..GTP¥13,000198204-198408

�T�D�T�e�|�P�U,5.50F-16,TOPY

main42610-36220iBU20..CTP;BU23..BTP;BU23..20T,275;BU20,21..KKT,TSK;BU20,21,22,30,32,34,35..TB..H50¥13,000198008-198408

�T�D�T�e�|�P�U,5.50F-16,TOPY

main42610-36230iBU45,46;BU36,37..275,30T¥13,000198009-198408

�`�e�i�@�P�U�w�T�D�T�O�e,5.50F-16,TOPY

main42610-36230iBU20,21,23..FTP¥13,000198008-198408

�`�e�i�@�P�U�w�T�D�T�O�e,5.50F-16,TOPY

main42610-36270iBU40,41,5#¥17,500198204-198408

6.00GS-16

sub42610-36272¥17,400

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-35010iBU20,22..ST¥2,320198204-198408

5.50F-15,TOPY

main42613-35010iBU20..ST..20T¥2,320197708-198204

5.50F-15,TOPY

main42613-35020iBU20,22,30..ST¥5,400197708-198408

6.00GS-15,TOPY

main42613-36010iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL¥2,130197708-198008

5.50F-16,TOPY,GRAY

sub42613-36080¥3,370

main42613-36020iBU2#,30..H50;BU20..T3..03S..WT..ATP..DSL¥4,130197708-198204

5.50F-16,CHUOSEIKI

sub42613-60080¥2,610

main42613-36060iBU20,22..ST¥3,330198204-198408

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36060iBU20..ST..20T¥3,330197708-198204

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36070iBU20,22,30..ST¥4,270197708-198408

6.00GS-15,CHUOSEIKI

sub42613-35020¥5,400

main42613-36080iBU2#,30,32,34,35,36,37,45,46..H50¥3,370198008-198408

5.50F-16,TOPY,BLACK

main42613-37020iBU40,41,5#¥6,500198204-198408

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-25120iBU20,22,30,33,35,36,37198008-198408

FR,7.00R15-8

main42605-36130iBU36,37,45,46198009-198408

7.00R16-10

main42605-36140iBU36,37198009-198408

7.00-16-10

main42605-36150iBU20,22,30,35,36,37198008-198408

FR,7.00-15-8

main42605-36160iBU2#,30,32,34,35,36,37198008-198408

6.50-16-10

main42605-36180iBU2#,30,32,34,35,36,37198008-198408

6.50R16-10

main42605-36190iBU20,22,30,33,35,36,37198008-198408

RR,175R14-8

main42605-36280iBU40,41,5#198204-198408

7.50-16-10,RIB

main42605-36290iBU40,41,5#198204-198408

7.50-16-12,RIB

main42605-36300iBU40,41,5#198204-198408

7.50R16-10

main42605-36310iBU40,41,5#198204-198408

7.50-16-10,GRIP

main42605-36320iBU41,51198211-198408

7.50-16-12,GRIP

main42605-36330iBU41,51198302-198408

7.50-16-14,GRIP

main98061-60134iBU20,22,30,33,35,36,37197708-198408

RR,6.00-13-8,RIB

main98061-70153iBU20,22197708-198408

FR,7.00-15-6,RIB

main98061-70155iBU20,30197708-198008

FR,7.00-15-10,RIB

main98061-70155iBU20,22198008-198408

FR,7.00-15-10,RIB

main98061-75155iBU20,22197708-198408

RR,7.50-15-10,RIB

main98061-75156iBU20,30197708-198008

RR,7.50-15-12,RIB

main98061-75156iBU20,22198008-198408

RR,7.50-15-12,RIB

main98061-75157iBU20,22198008-198408

RR,7.50-15-14,RIB

main98061-75157iBU20,30197708-198008

FR,7.50-15-14,RIB

main98066-75165iBU40,41,5#198208-198408

7.50-16-10,LUG

main98066-75166iBU40,41,5#198208-198408

7.50-16-12,LUG

main98661-70154iBU20,22198008-198408

FR,7.00-15-8,RIB

main98661-70154iBU20,30197708-198008

FR,7.00-15-8,RIB

main98961-65164iBU2#¥15,500197708-198008

RR,6.50-16-8,RIB

main98961-65164iBU2#¥15,500197708-198408

FR16.50-16-8,RIB

main98961-65164iBU2#,32¥15,500198204-198408

RR,6.50-16-8,RIB

main98961-65165iBU2#,30,32,34,35,36,37197708-198408

FR,6.50-16-10,RIB

main98961-65165iBU2#,30197708-198008

RR,6.50-16-10,RIB

main98961-65165iBU2#,32,34,36,37198204-198408

RR,6.50-16-10,RIB

main98961-70165iBU20,21,23,36,37,45,46198008-198408

RR,7.00-16-10,RIB

main98961-70165iBU21,23,36,37,45,46198204-198408

FR,7.00-16-10,RIB

main98961-70165iBU31197708-198008

7.00-16-10,RIB

main98961-70166iBU31197708-198008

7.00-16-12,RIB

main98961-70166iBU20,21,23,36,37,45,46198008-198408

RR,7.00-16-12,RIB

main98961-70166iBU21,23,36,37,45,46198204-198408

FR,7.00-16-12,RIB

main98964-65164iBU2#,30197708-198008

FR,6.50-16-8,SNOW

main98964-65164iBU2#197708-198408

RR,6.50-16-8,SNOW

main98964-65164iBU2#198008-198408

FR,6.50-16-8,SNOW

main98964-65165iBU2#,30,32,34197708-198408

RR,6.50-16-10,SNOW

main98964-65165iBU2#,30,32,34197708-198408

FR,6.50-16-10,SNOW

main98966-65164iBU2#197708-198408

RR,6.50-16-8,LUG

main98966-65164iBU2#198008-198408

FR,6.50-16-8,LUG

main98966-65164iBU2#,30197708-198008

FR,6.50-16-8,LUG

main98966-65165iBU2#,30,32,34,35,36,37197708-198408

6.50-16-10,LUG

42621CAP, WHEEL

main42621-36110iBU20,22,30..ST¥1,960197708-198408

sub42621-35200¥2,080

9020111009

main90201-11009¥100

9046810014

main90468-10014¥120

10 parts on this diagram · 1 diagram in section
