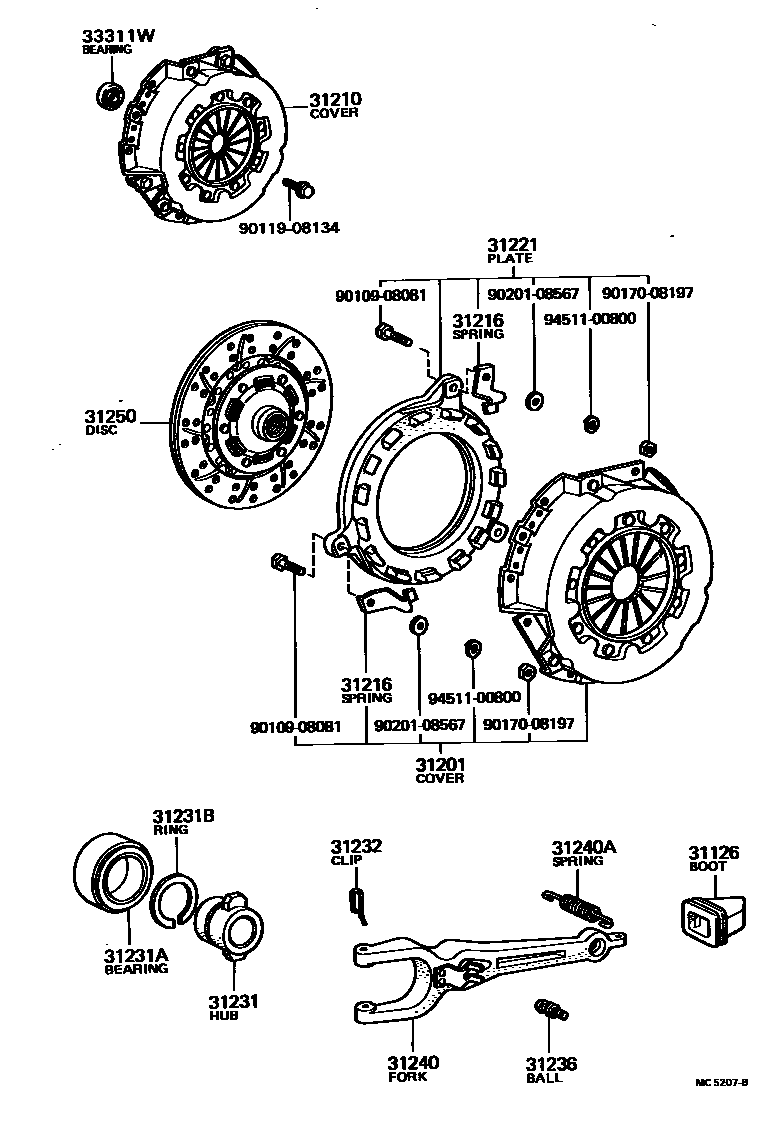

Toyota DYNA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBU2#,3#,4#,5#¥940197708-198408

31201COVER SUB-ASSY, CLUTCH

main31201-39085iBU2#,30¥26,700197708-197804

sub31210-36072¥21,100

main31201-39095iBU2#,3#¥28,300197804-197907

sub31201-39096¥28,300

main31201-39096iBU2#,3#¥28,300197907-198003

sub31201-39097¥31,500

main31201-39097iBU2#,30,35¥31,500198003-198107

sub31210-36072¥21,100

main31201-39115iBU36¥26,200198009-198408

31210COVER ASSY, CLUTCH

main31210-36060iBU2#,30¥23,100197708-197804

sub31210-36070¥23,100

main31210-36070iBU2#,3#¥23,100197804-197907

sub31210-36071¥23,200

main31210-36071iBU2#,3#¥23,200197907-198003

sub31210-36072¥21,100

main31210-36072iBU2#,30,31,35¥21,100198003-198107

sub31210-36073

main31210-36090iBU36¥20,100198009-198408

main31210-36100iBU2#,3#,4#,51¥21,200198408-198408

31216SPRING, CLUTCH RETRACTING

main31216-36010iBU2#,3#,4#,5#¥370197708-198408

31221PLATE, CLUTCH PRESSURE

main31221-39075iBU2#,30¥7,900197708-197804

sub31210-36100¥21,200

main31221-39085iBU2#,30,35¥9,500197804-198107

sub31221-39145¥9,500

main31221-39125iBU36¥9,400198009-198408

sub31221-36090¥6,300

31231HUB, CLUTCH RELEASE BEARING

main31231-36060iBU2#,30¥1,470197708-197903

sub31231-36061¥1,480

main31231-36061iBU2#,3#¥1,480197903-198008

main31231-36062iBU2#,3#,4#,5#¥2,930198008-198408

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45001iBU2#,3#¥2,750197708-198110

main90363-45002iBU2#,3#,4#,5#¥2,750198110-198408

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main96152-00450iBU2#,3#¥200197708-198008

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010iBU2#,3#,4#,5#¥270197708-198408

31236BALL, RELEASE FORK

main31236-20040iBU20,3#¥800198008-198111

main31236-30030iBU2#,3#¥730197708-198008

main31236-30040iBU2#,3#,4#,5#¥740198111-198408

31240FORK ASSY, CLUTCH RELEASE

main31204-25010iBU2#,3#,4#,5#¥3,010198111-198408

main31204-36030iBU2#,3#¥3,010197708-198008

main31204-36031iBU20,3#¥3,270198008-198111

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iBU2#,3#,4#,5#¥210197708-198408

31250DISC ASSY, CLUTCH

main31250-36110iBU2#,30¥17,200197708-197810

sub31250-36111¥17,300

main31250-36111iBU2#,3#¥17,300197810-198002

sub31250-36112¥17,300

main31250-36112iBU2#,3#¥17,300198002-198008

sub31250-36114

main31250-36113iBU2#,3#,4#,50¥15,800198008-198210

sub31250-60090

main31250-36161iBU2#,3#,4#,5#¥15,800198210-198408

sub31250-36230¥16,700

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU2#,3#,4#,5#¥520198008-198408

6201 2NK

sub90363-12024¥520

main97143-06201iBU2#,3#¥520197708-198008

6201 VV C3

9010908081

main90109-08081¥270

9011908134

main90119-08134¥80

9017008197

main90170-08197¥210

9020108567

main90201-08567¥230

9451100800

main94511-00800¥100

19 parts on this diagram · 1 diagram in section
