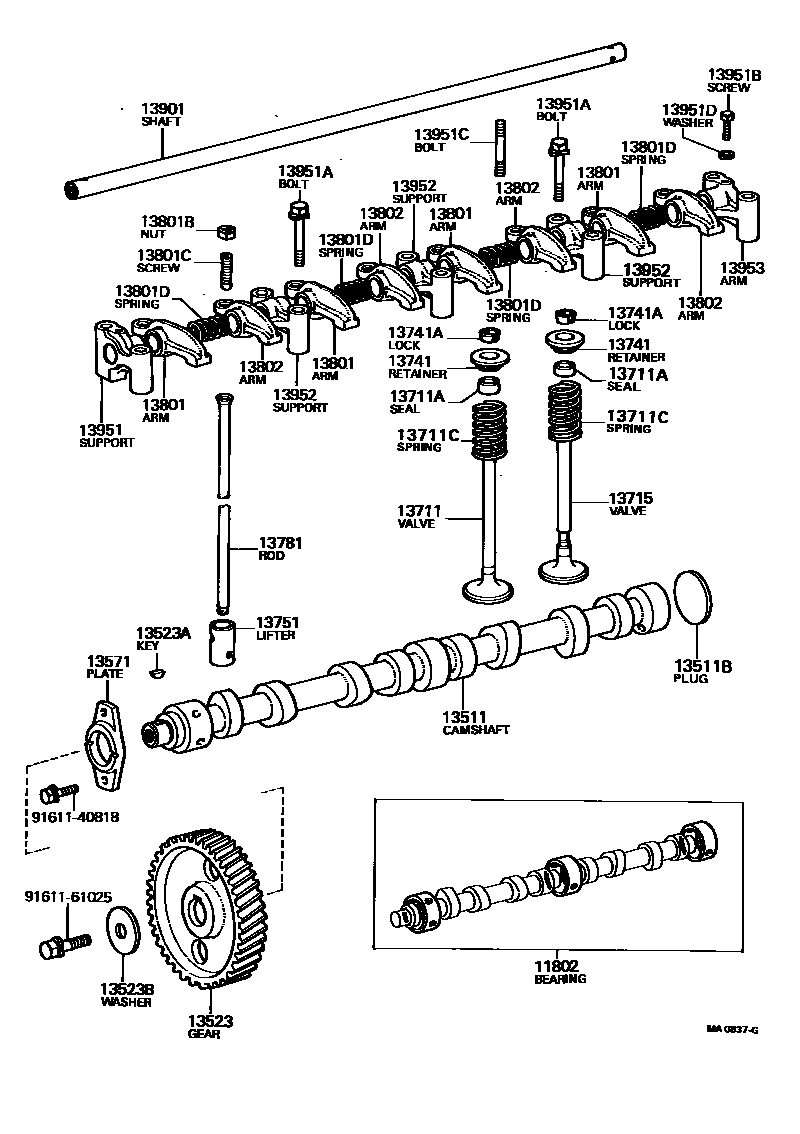

Toyota DYNA — CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-56010iB,2B..BU2#,3#197708-198008

STD

sub11802-56011¥4,800

main11802-56011iB,3B..BU2#,3#,4#,5#¥4,800198008-198408

STD

13511CAMSHAFT

main13511-56010iB,2B,3B..BU2#,3#,4#,5#¥46,900197708-198408

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-51032iB,2B,3B..BU2#,3#,4#,5#¥370197708-198408

OD=51

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-56020iB,2B..BU2#,3#¥17,000197708-198008

N=44

sub13523-56030¥16,200

main13523-56030iB,3B..BU2#,3#,4#,5#¥16,200198008-198408

N=44

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05010iB,2B..BU2#,3#¥260197708-198008

main95161-10519iB,3B..BU2#,3#,4#,5#¥260198008-198408

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227iB,2B,3B..BU2#,3#,4#,5#¥260197708-198408

OD=40,ID=10.5

13571PLATE, CAMSHAFT THRUST

main13571-56010iB,2B,3B..BU2#,3#,4#,5#¥1,590197708-198408

13711VALVE, INTAKE

main13711-56020iB,2B..BU2#,3#¥2,660197708-198008

sub13711-56030¥4,600

sub90913-03019¥190

main13711-56030iB..BU20,22,30,33,35¥4,600198008-198408

main13711-58010i3B..BU21,23,32,34,36,37,4#,5#¥3,130198009-198408

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02028iB,2B..BU2#,3#¥470197708-198008

main90913-02051iB,3B..BU2#,3#,4#,5#¥460198008-198408

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-47003iB,2B,3B..BU2#,3#,4#,5#¥590197708-198408

13715VALVE, EXHAUST

main13715-56020iB,2B..BU2#,3#¥3,670197708-198008

sub13715-56030¥4,030

sub90913-03019¥190

main13715-56030iB..BU20,22,30,33,35¥4,030198008-198408

sub13715-56031¥4,800

main13715-58010i3B..BU21,23,32,34,36,37,4#,5#¥4,030198009-198408

sub13715-58011¥3,860

13741RETAINER, VALVE SPRING

main13741-56011iB,2B..BU2#,3#¥770197708-198008

sub13741-56020¥750

main13741-56020iB,3B..BU2#,3#,4#,5#¥750198008-198408

13741ALOCK, VALVE SPRING RETAINER

main90913-03003iB,2B..BU2#,3#¥250197708-198008

main90913-03019iB,3B..BU2#,3#,4#,5#¥190198008-198408

13751LIFTER, VALVE

main13751-56010iB,2B..BU2#,3#¥2,380197708-198008

sub13751-56011¥2,320

main13751-56011iB,3B..BU2#,3#,4#,5#¥2,320198008-198307

sub13751-56012¥2,280

main13751-56012iB,3B..BU2#,3#,4#,51¥2,280198307-198408

13781ROD, VALVE PUSH

main13781-31011iB,2B,3B..BU2#,3#,4#,5#¥810197708-198408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-56010iB,2B..BU2#,3#¥2,190197708-198008

sub13811-56020¥2,420

main13811-56020iB,3B..BU2#,3#,4#,5#¥2,420198008-198408

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-10074iB,2B,3B..BU2#,3#,4#,5#¥220197708-198408

13801CSCREW, VALVE ADJUSTING

main90913-05007iB,2B,3B..BU2#,3#,4#,5#¥580197708-198408

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16163iB,2B,3B..BU2#,3#,4#,5#¥180197708-198408

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-56010iB,2B..BU2#,3#¥2,190197708-198008

sub13812-56020¥2,420

main13812-56020iB,3B..BU2#,3#,4#,5#¥2,420198008-198408

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56010iB,2B..BU2#,3#¥4,480197708-198008

sub13901-56020¥4,950

main13901-56020iB,3B..BU2#,3#,4#,5#¥4,950198008-198408

sub13901-56030¥3,310

13951SUPPORT, VALVE ROCKER, NO.1

main13951-56010iB,2B,3B..BU2#,3#,4#,5#¥2,530197708-198408

sub13951-56011¥2,380

13951ABOLT(FOR ROCKER SUPPORT SET)

main91611-40850iB,2B..BU2#,3#¥130197708-197906

*8-1.25PX50-30

sub91611-60850¥120

main91611-40860iB,2B..BU2#,3#¥180197708-197906

*8-1.25PX60-30

sub91611-60860¥100

main91611-60850iB,2B..BU2#,3#¥120197906-198008

*8-1.25PX50-30

main91611-60855iB,3B..BU2#,3#,4#,5#¥100198008-198408

*8-1.25PX55-30

main91611-60860iB,2B..BU2#,3#¥100197906-198008

*8-1.25PX60-30

main91611-60865iB,3B..BU2#,3#,4#,5#¥120198008-198408

*8-1.25PX65-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main90109-06014iB,2B..BU2#,3#¥140197801-198008

main90149-60001iB,3B..BU2#,3#,4#,5#¥120197708-198408

sub90109-06014¥140

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90116-08087iB,2B..BU2#,3#¥250197708-198003

L=81,S=9&26

main90116-08123iB,2B,3B..BU2#,3#,4#,5#¥260198003-198408

L=84,S=9&29

13951DWASHER, SEAL(FOR HEAD COVER SET)

main90201-06177iB,2B,3B..BU2#,3#,4#,5#¥120197708-198408

13952SUPPORT, VALVE ROCKER, NO.2

main13952-56010iB,2B,3B..BU2#,3#,4#,5#¥2,760197708-198408

sub13952-56011¥2,560

13953SUPPORT, VALVE ROCKER, NO.3

main13953-56010iB,2B,3B..BU2#,3#,4#,5#¥2,530197708-198408

sub13953-56011¥2,380

9161140818

main91611-40818¥130

9161161025

main91611-61025¥240

30 parts on this diagram · 2 diagrams in section
