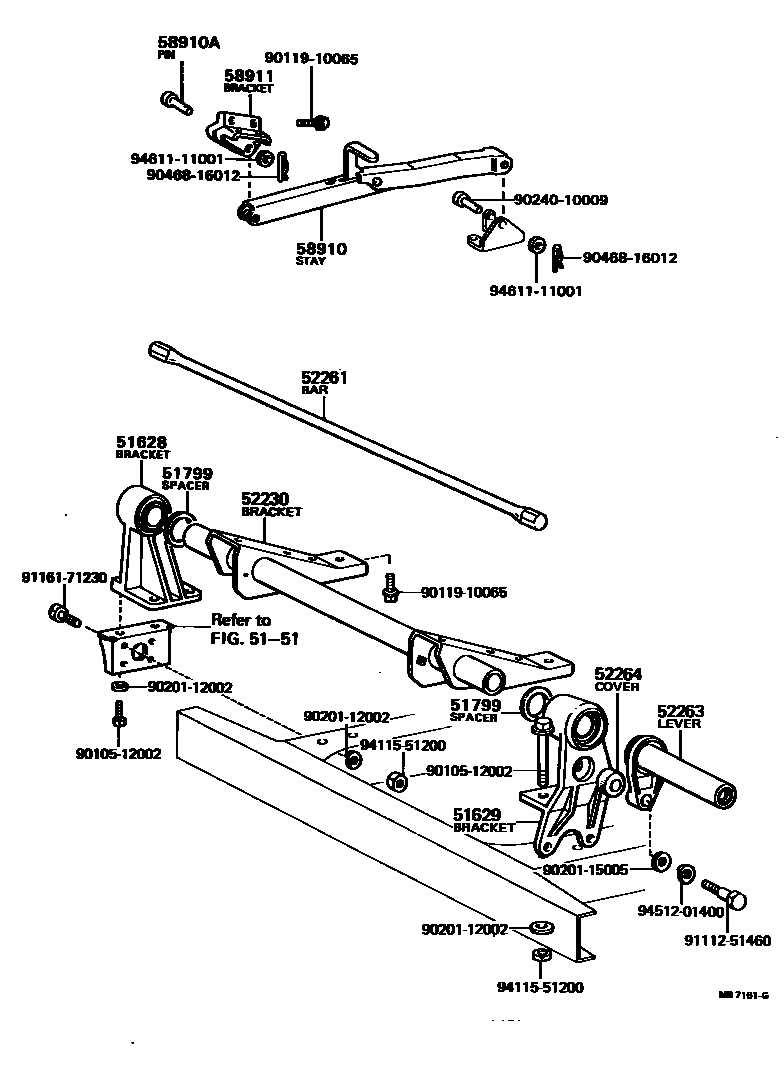

Toyota DYNA — CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

5151

51628BRACKET, TORSION BAR, RH

main51708-36010iBU2#,30,31,32,33,34¥15,400197708-198408

main51708-36040iBU35,36¥26,100198008-198204

sub51708-36041

main51708-36041iBU36,37,4#,5#198204-198408

51629BRACKET, TORSION BAR, LH

main51709-36010iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,33,34..02S,03S197708-198408

main51709-36030iBU20,22,30,34..HRF,SRF,TW1,TW2¥19,300197708-198408

main51709-36040iBU35,36¥29,600198008-198204

sub51709-36041¥29,600

main51709-36041iBU36,37,4#,5#¥29,600198204-198408

51799SPACER, FRONT MOUNTING

main51799-95400iBU2#,3#197708-198008

main51799-95401iBU2#,3#,4#,5#198008-198408

52230BRACKET ASSY, FRONT MOUNTING

main52220-95400iBU20..DTP;BU20..ST..20T;BU25,3#..02S,03S;BU20..(02S,03S)..WT¥30,000197708-198001

sub52220-95404

main52220-95404iBU20..DTP;BU20..ST..20T;BU25,30,31..02S,03S;BU20..(02S,03S)..WT198001-198010

sub52220-95407

sub51799-95401

main52220-95406iBU35,36198008-198010

sub52220-95409¥33,100

sub51799-95401

main52220-95407iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU22..(02S,03S)..IV3;BU20,21,23,30,32,33,34..(02S,03S)..WT198010-198408

main52220-95409iBU35,36¥33,100198010-198204

sub52220-95410

main52220-95410iBU36,37,4#,5#198204-198408

main52230-95400iBU20,30..HRF,SRF,TW1,TW2¥21,500197708-198001

sub52230-95404

main52230-95404iBU20,30..HRF,SRF,TW1,TW2198001-198010

sub52230-95406

sub51799-95401

main52230-95406iBU20,22,30,32,34..HRF,SRF,TW1,TW2198010-198408

52261BAR, TILT CAB TORSION

main52261-95400iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S197708-198408

main52261-95403iBU35,36,37,4#,5#198008-198408

FR

main52262-95402iBU35,36,37,4#,5#198008-198408

RR

52263LEVER, TORSION BAR SPRING ANCHOR

main52205-95400iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S197708-198408

52264COVER, TORSION BAR SPRING ANCHOR LEVER

main52265-95400iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S197708-198408

58910STAY ASSY, CAB

main58910-95400iBU20..DTP;BU20..ST..20T;BU25,30,31..02S,03S;BU20..(02S,03S)..WT¥7,900197708-198106

sub58910-95402¥7,700

main58910-95401iBU35,36¥8,200198008-198106

sub58910-95403

main58910-95402iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU22..(02S,03S)..IV3;BU20,21,23,30,32,33,34..(02S,03S)..WT¥7,700198106-198408

main58910-95403iBU35,36,37,4#,5#198106-198408

58910APIN, W/HOLE (FOR CAB STAY SETTING)

main90240-10008iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S¥280197708-198408

58911BRACKET, TILT CAB STAY

main58066-95400iBU20,21,22,23,36,37..20T,275,30T;BU30,31,32,33,34,35,4#,5#..02S,03S197708-198408

9010512002

main90105-12002¥400

9011910065

main90119-10065¥230

9020112002

main90201-12002¥140

9020115005

main90201-15005

9024010009

main90240-10009¥260

9046816012

main90468-16012¥280

9111251460

main91112-51460¥370

9116171230

main91161-71230¥180

9411551200

main94115-51200¥170

9451201400

main94512-01400¥100

9461111001

main94611-11001¥80

22 parts on this diagram · 4 diagrams in section
