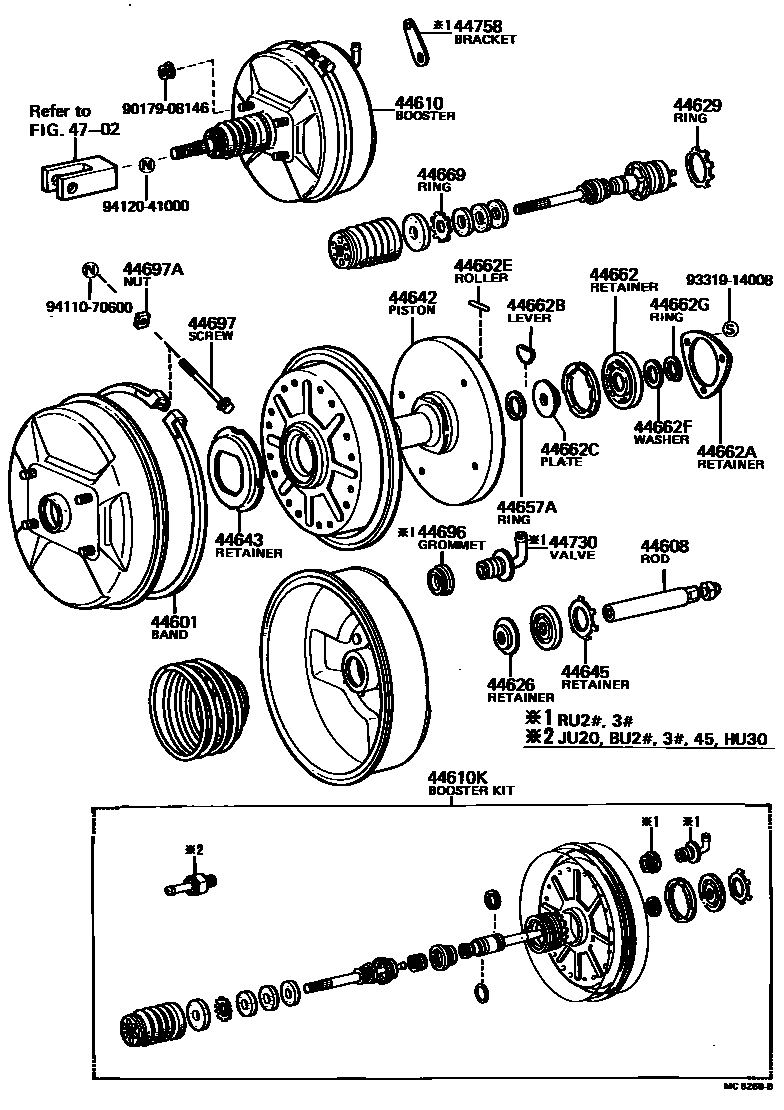

Toyota DYNA — BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44601BAND SUB-ASSY, BOOSTER BODY

main44605-36120iBU2#,3#,45,46¥1,390197708-198408

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-36120iBU2#,3#,45,46197708-198408

main44608-36220iBU40,41,5#198204-198408

44610BOOSTER ASSY, BRAKE

main44610-36160iBU2#,3#¥50,600197708-198204

main44610-36160iBU2#,30,32,33,34¥50,600198204-198408

main44610-36220iBU40,41,5#¥55,900198204-198408

main44610-36230iBU36,37,45,46198204-198408

44610KBOOSTER KIT, BRAKE

main04443-36020iBU2#,3#,45,46¥12,800197708-198408

main04443-36040iBU40,41,5#¥22,300198208-198408

44626RETAINER, BOOSTER ROD CUP

main44626-60010iBU2#,3#,45,46¥160197708-198408

44629RING, CIRCULAR INTERNAL

main44629-30090iBU2#,3#,45,46¥300197708-198408

44642PISTON, BRAKE BOOSTER

main44642-36120iBU2#,30,32,33,34,35,36,37,45,46¥6,800197708-198408

main44642-36220iBU40,41,5#198204-198408

44643RETAINER, DIAPHRAGM

main44643-60010iBU2#,3#,45,46¥620197708-198408

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iBU2#,3#,45,46¥440197708-198408

main44645-36220iBU40,41,5#¥590198204-198408

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iBU2#,3#,45,46¥260197708-198408

44662RETAINER, REACTION, NO.1

main44662-36120iBU2#,3#,45,46197708-198408

44662ARETAINER, REACTION, NO.2

main44663-60010iBU2#,3#,45,46¥680197708-198408

44662BLEVER, REACTION

main44661-60010iBU2#,3#,45,46¥440197708-198408

sub44661-35100¥470

44662CPLATE, REACTION, NO.1

main44653-36160iBU2#,3#197708-198204

main44653-36160iBU2#,30,32,33,34198204-198408

main44653-36230iBU36,37,45,46198204-198408

44662EROLLER(FOR REACTION LEVER)

main44667-36120iBU2#,3#,45,46¥230197708-198408

44662FWASHER(FOR REACTION LEVER)

main90201-19272iBU2#,3#,45,46¥330197708-198408

44662GRING, SNAP(FOR REACTION RETAINER)

main96150-01800iBU2#,3#,45,46¥110197708-198408

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iBU2#,3#,45,46¥270197708-198408

44696GROMMET, CHECK VALVE

44697SCREW, BOOSTER BAND SET

main44681-30170iBU2#,3#,45,46¥280197708-198408

44697ANUT(FOR BOOSTER BAND SET)

main44686-30030iBU2#,3#,45,46¥250197708-198408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60040iBU2#,3#,4#,5#¥5,500197708-198408

44758BRACKET, VACUUM CHECK VALVE

4702

9017908146

main90179-08146¥180

9331914008

main93319-14008¥80

9411070600

main94110-70600¥130

9412041000

main94120-41000¥80

28 parts on this diagram · 3 diagrams in section
