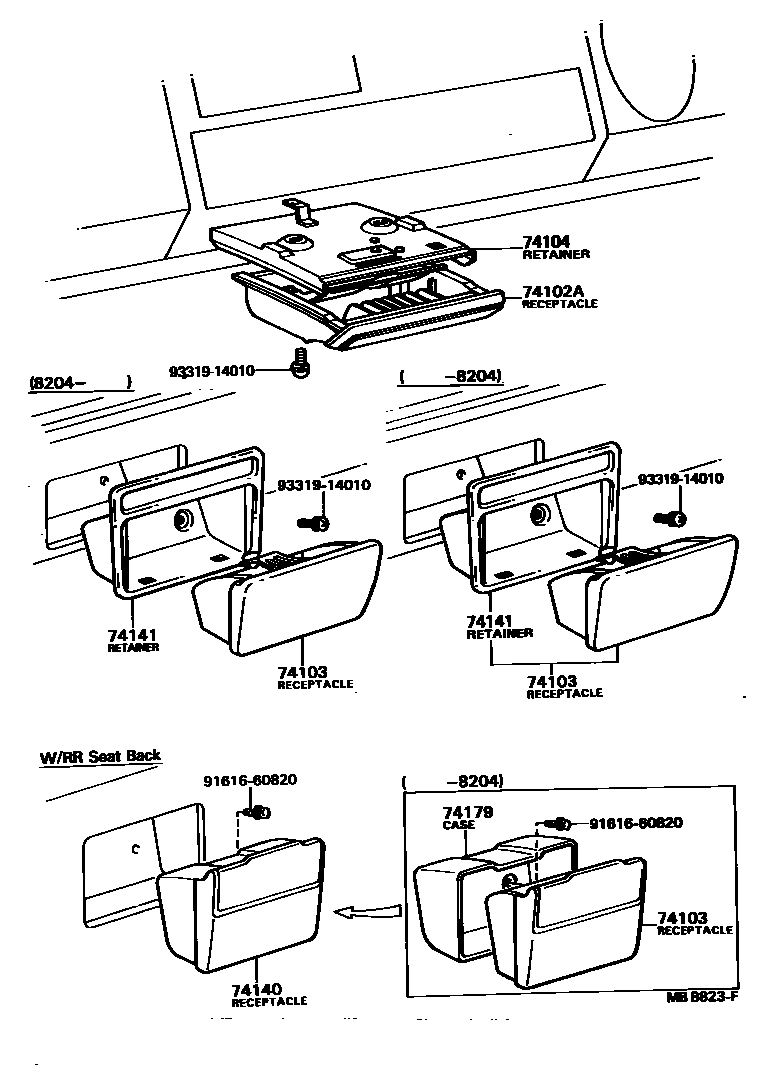

Toyota DYNA — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74101-95403iBU2#,3#¥2,380197708-198008

sub74101-95404¥2,190

main74101-95404iBU20,3#¥2,190198008-198204

main74101-95405iBU2#,3#,4#,5#¥2,870198204-198408

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-95403iBU20,22,32,34..HRF,SRF,TW1,TW2198204-198408

main74140-95700iBU20,30..HRF,SRF,TW1,TW2¥2,170197708-198204

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95405iBU2#,3#,4#,5#¥1,030197708-198408

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74101-90501iBU20..09S¥1,890198008-198204

main74120-95A04iBU20,22..09S198204-198408

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74141-95550iBU20,22,30,32,34..HRF,SRF,TW1,TW2197708-198408

74179CASE, ASH RECEPTACLE

main74121-90501iBU20..09S¥1,740198008-198204

9161660820

main91616-60820¥190

9331914010

main93319-14010¥70

8 parts on this diagram · 1 diagram in section
