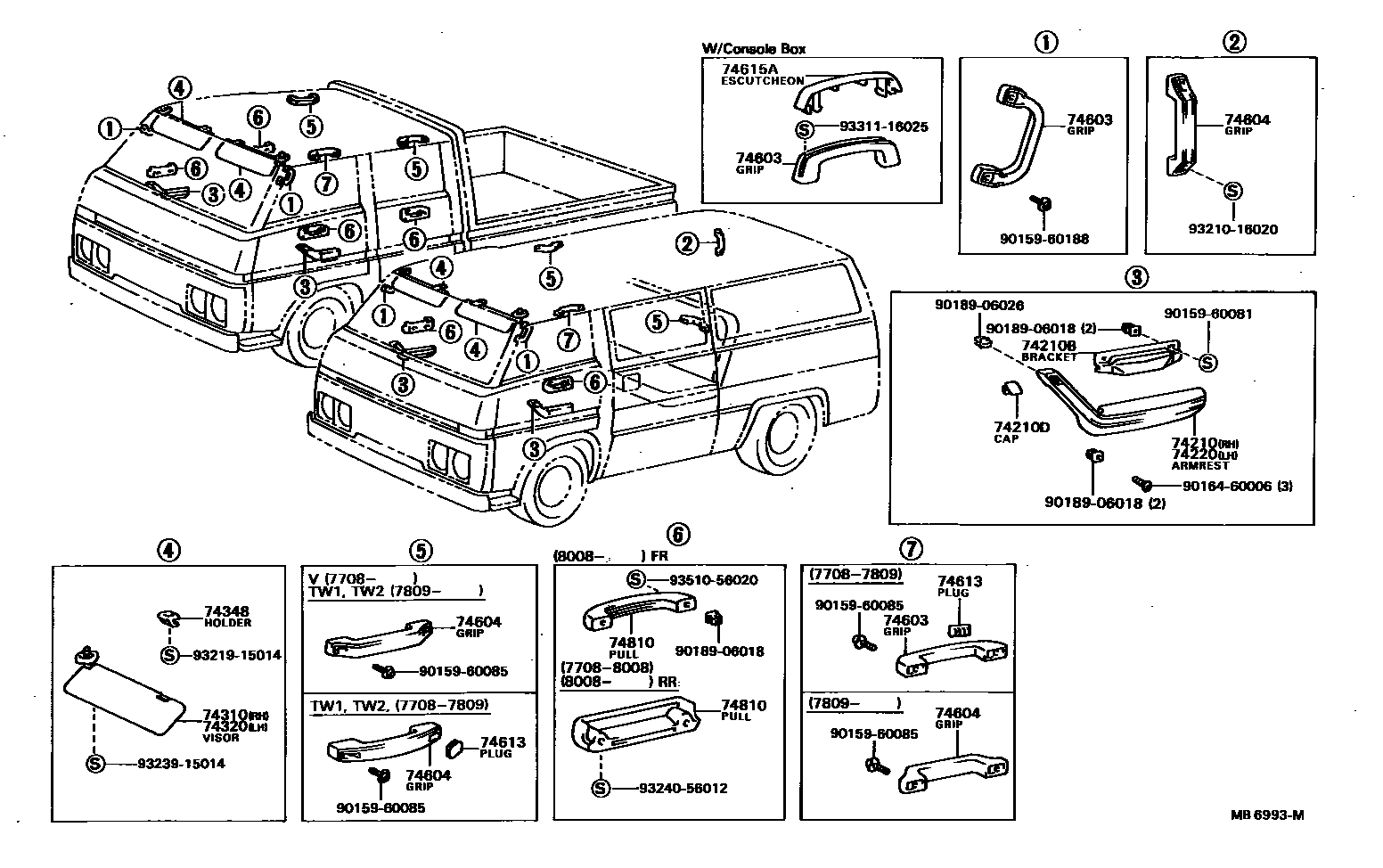

Toyota DYNA — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

CUSTOM PACK

74210BBRACKET, ARMREST SET

main74215-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

CUSTOM PACK

74210DCAP, DOOR ARMREST

main74223-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

CUSTOM PACK,RH

main74224-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

CUSTOM PACK,LH

74220ARMREST ASSY, FRONT, LH

main74220-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

CUSTOM PACK

74310VISOR ASSY, RH

main74310-95413iBU2#,30197708-197812

sub74310-95414¥3,320

main74310-95414iBU2#,3#¥3,320197812-198008

sub74310-95419¥3,460

main74310-95416iBU35,36¥3,920198008-198204

W/HOLDER

sub74310-95424

main74310-95417iBU20,30..TB..03S..WT¥3,950198008-198204

W/HOLDER

sub74310-95422

main74310-95419iBU2#,30,32,33,34¥3,460198008-198408

main74310-95420iBU35,36,37,4#,5#¥3,580198008-198408

main74310-95422iBU2#,30,32,33,34..(DM1,DM4,TB)..03S..WT198204-198408

W/HOLDER

main74310-95424iBU40,41,5#;BU36,37..TB198204-198408

W/HOLDER

74320VISOR ASSY, LH

main74320-95402iBU20,30..02S197708-197812

sub74320-95403¥3,320

main74320-95403iBU20,30..02S¥3,320197812-198008

sub74320-95408¥3,460

main74320-95405iBU35,36198008-198204

main74320-95409iBU20,30..TB..03S..WT198008-198204

main74320-95414iBU40,41,5#;BU36,37..TB198204-198408

main74320-95415iBU2#,30,32,33,34..(DM1,DM4,TB)..03S..WT¥3,420198204-198408

sub74320-95408¥3,460

74348HOLDER, VISOR

main74348-20011-13iBU2#,30197708-197903

GRAY

sub74348-20011¥360

main74348-95010iBU2#,3#197903-198008

main74348-95700iBU2#,3#,4#,5#¥740198008-198408

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-95400iBU2#,30197803-197809

ROOF

main74610-95400iBU2#,3#¥1,160197708-197909

PILLAR

main74610-95401iBU2#,3#¥1,280197909-198204

PILLAR

main74610-95403iBU2#,3#,4#,5#¥1,420198204-198408

PILLAR

sub74620-87001¥2,520

main74611-95404iBU2#,3#,4#,5#¥1,890198204-198408

ROOF

main74611-95A00iBU2#,3#¥1,450197809-198204

ROOF

sub74603-95701¥2,260

sub74617-16010¥180

main74630-95401iBU36,37,4#,5#198204-198408

CONSOLE BOX

sub74630-37010

main74630-95700iBU35,36¥1,290198008-198204

CONSOLE BOX

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-95400iBU20,30..TS..06S197708-197809

main74611-95404iBU20,22..V..03S¥1,890198204-198408

PILLAR

main74611-95A00iBU20..V..06S¥1,450197708-198008

sub74603-95701¥2,260

sub74617-16010¥180

main74611-95A00iBU20..V..03S¥1,450197804-198204

BACK

sub74603-95701¥2,260

sub74617-16010¥180

main74611-95A00iBU20..V..(06S,09S)¥1,450198008-198204

sub74603-95701¥2,260

sub74617-16010¥180

main74611-95A00iBU20,30..TR..06S¥1,450197809-198204

sub74603-95701¥2,260

sub74617-16010¥180

74613PLUG, ASSIST GRIP

main74613-95400iBU20,30..TS..06S197708-197809

RR

main74613-95400iBU2#,30197803-197809

ASSISTANT SIDE

74615AESCUTCHEON, DOOR ASSIST GRIP

main74615-95402iBU36,37,4#,5#¥310198204-198408

sub74615-37010

main74615-95701iBU35,36¥330198008-198204

74810PULL ASSY, DOOR, INSIDE

main69151-95A00iBU20,30..TR..06S¥640197708-198204

RR DOOR

sub69151-95600¥950

main69151-95A01iBU20,22,32,34..TR..06S¥700198204-198408

RR DOOR

sub69151-95600¥950

main69285-95402iBU2#,3#¥700197708-198008

FR DOOR

main69285-95403iBU20,3#¥920198008-198204

FR DOOR

sub69285-95404¥930

main69285-95404iBU2#,3#,4#,5#¥930198204-198408

FR DOOR

9015960081

main90159-60081¥70

9015960085

main90159-60085¥210

9015960188

main90159-60188¥120

9016460006

main90164-60006¥120

9018906018

main90189-06018¥80

9018906026

main90189-06026¥120

9321016020

main93210-16020¥170

9321915014

main93219-15014¥120

9323915014

main93239-15014¥60

9324056012

main93240-56012¥120

9331116025

main93311-16025¥170

9351056020

main93510-56020¥120

24 parts on this diagram · 1 diagram in section
