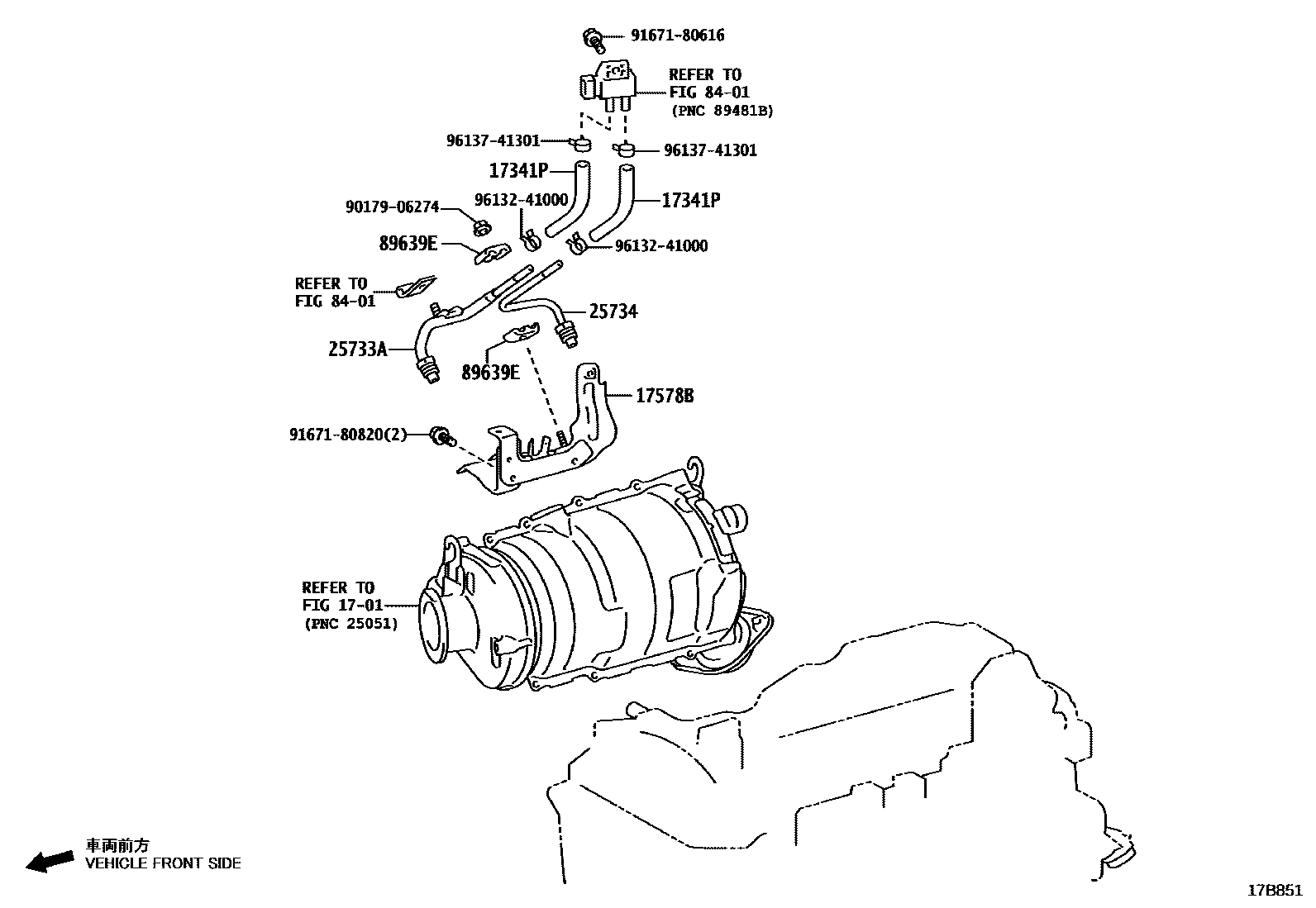

Toyota DYNA — VACUUM PIPING

0001 1 0002 1 0003 1

1701

17341PHOSE, AIR

main17341-11460i1GDFTV..GDY231..CBU¥410202108-202305

17578BCLAMP, PIPE

main17578-11080i1GDFTV..GDY231..CBU¥2,860202108-202305

25733APIPE, VACUUM, NO.1

main25733-0E010i1GDFTV..GDY231..CBU¥2,140202108-202305

(L)

main25733-11010i1GDFTV..GDY231..CBU¥3,070202108-202206

(J)

sub25733-0E010¥2,140

25734PIPE, VACUUM, NO.2

main25734-0E010i1GDFTV..GDY231..CBU¥1,610202206-202305

(J)

main25734-0E010i1GDFTV..GDY231..CBU¥1,610202108-202305

(L)

main25734-11010i1GDFTV..GDY231..CBU¥2,320202108-202206

(J)

sub25734-0E010¥1,610

8401

89639ECLAMP

main89639-26040iGDY231..CBU¥200202108-202305

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

9613241000

main96132-41000¥80

9613741301

main96137-41301¥120

12 parts on this diagram · 3 diagrams in section
