Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 1/2 0002 1ENGINE & TRANSMISSION 2/2 0003 1ENGIN & TRANSMISSION 0004 1RELAY BLOCK 0005 1RELAY BLOCK 0006 1COWL 1/2 0007 1COWL 2/2 0008 1COWL 1/2 0009 1COWL 2/2 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1STEERING 0013 1DOOR,ROOF & FLOOR 0014 1FRAME & REAR BODY

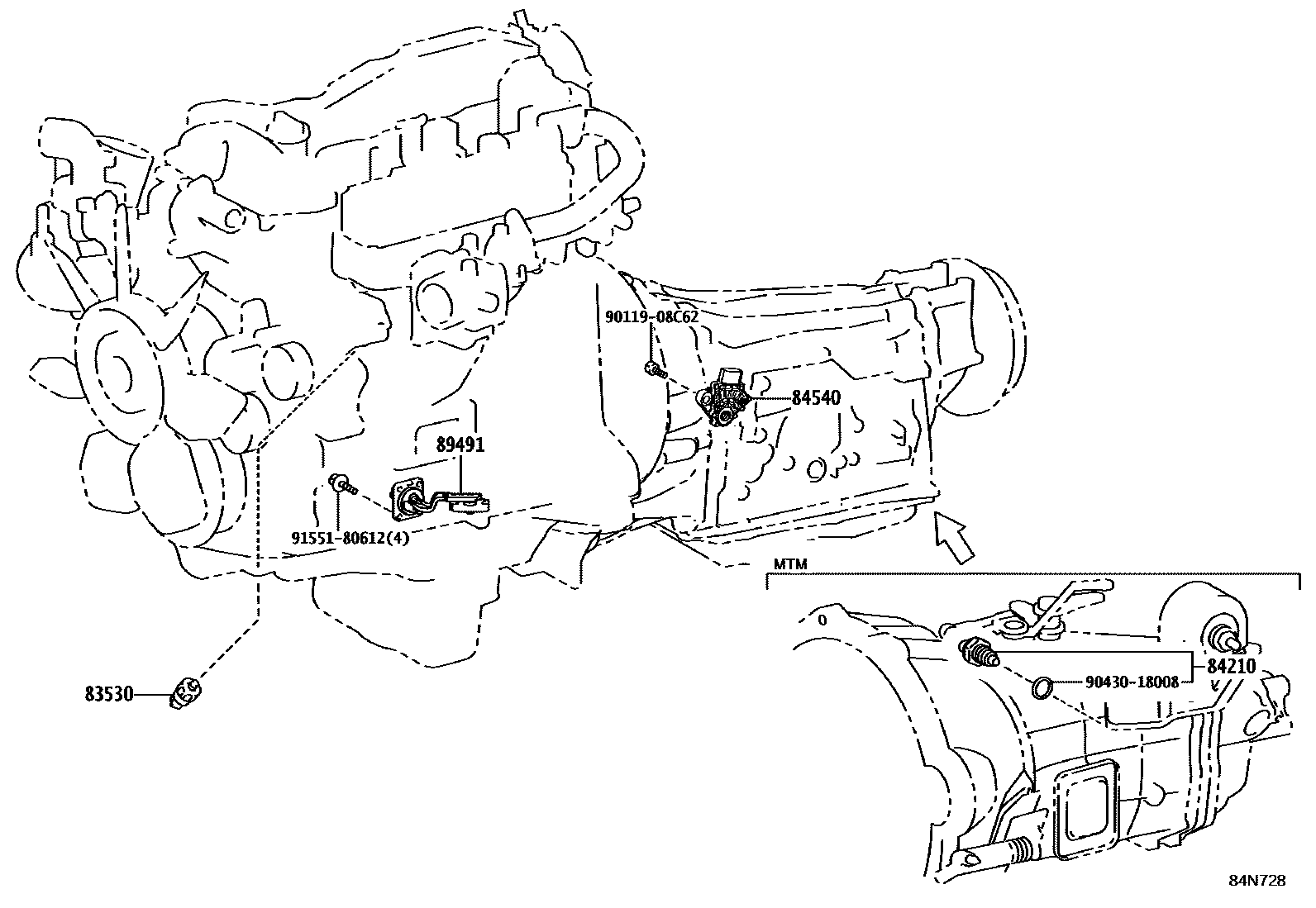

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60010iGDY231..CBU¥1,970202108-202305

main83530-60010iGDY231..IV3¥1,970202108-202405

main83530-60030iLY230¥1,970202202-202503

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iGDY231..5F..CBU¥1,360202108-202305

main84210-52050iGDY231..IV3¥1,360202108-202405

main84210-52050iLY230¥1,360202108-202503

84540SWITCH ASSY, NEUTRAL START

main84540-60050iGDY231..6FC¥7,600202108-202305

89491SENSOR, ENGINE OIL LEVEL

main89491-26160iLY230¥14,200202202-202503

main89491-60180iGDY231..CBU¥7,200202108-202305

main89491-60180iGDY231..IV3¥7,200202108-202405

9011908C62

main90119-08C62¥80

9043018008

main90430-18008¥110

9155180612

main91551-80612¥60

7 parts on this diagram · 14 diagrams in section
