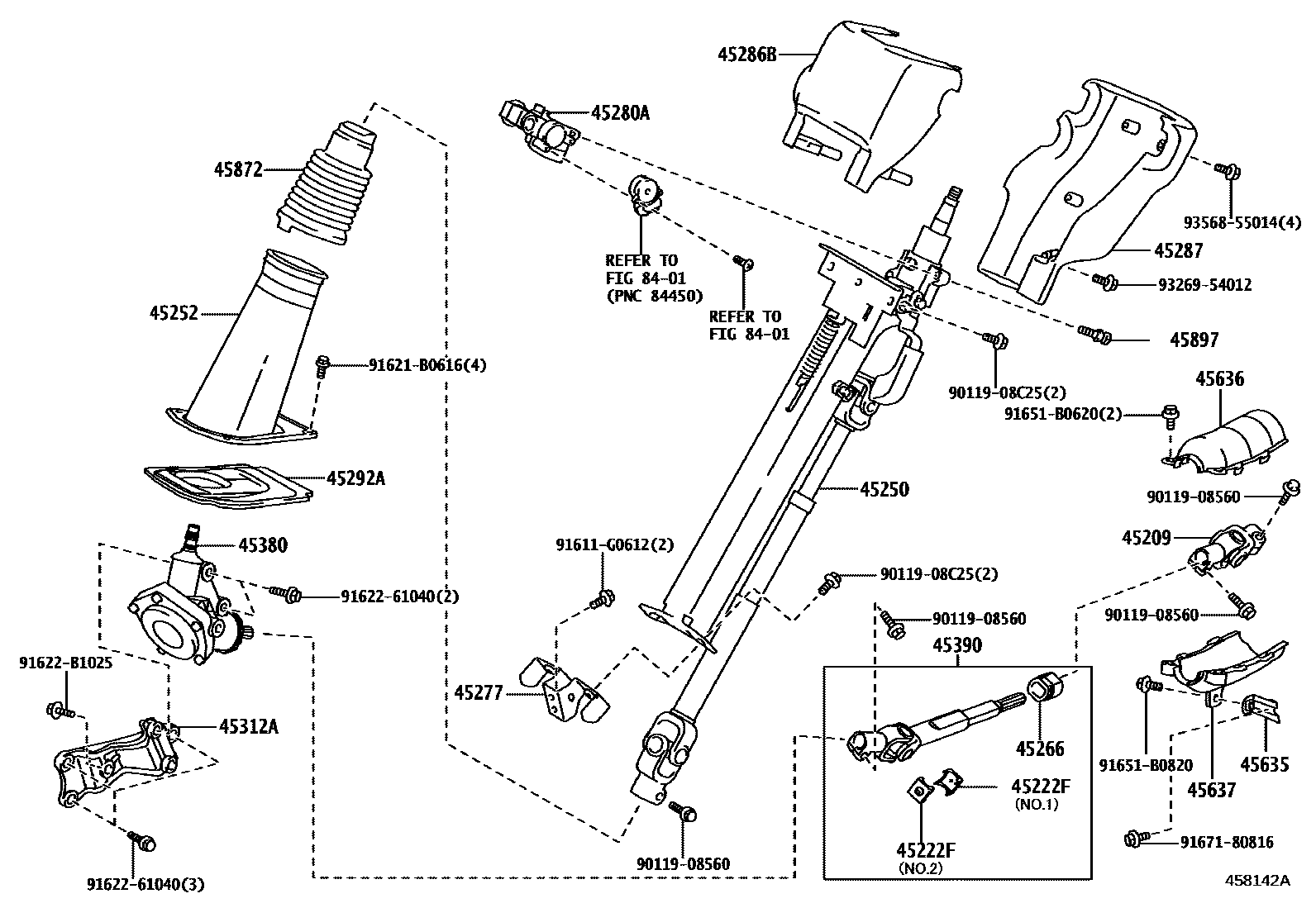

Toyota DYNA — STEERING COLUMN & SHAFT
45209YOKE SUB-ASSY, STEERING SLIDING
45222FCOVER, DUST
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
45250COLUMN ASSY, STEERING
BLACK,TRIM1#
45252TUBE, STEERING COLUMN, LOWER
BLACK,TRIM1#
BLACK,TRIM1#
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45277PLATE, STEERING COLUMN UPPER ATTACHMENT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM1#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM1#
45292ACOVER, MAIN SHAFT LOWER DUST
45312ABRACKET, STEERING BEVEL GEAR HOUSING
45380GEAR ASSY, STEERING BEVEL
45390SHAFT ASSY, STEERING TORQUE
45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER
45637PROTECTOR, INTER LINK JOINT, LWR NO.1
45872COVER, STEERING COLUMN TUBE
45897BOLT, STEERING LOCK SET
8401
9011908560
9011908C25
91611G0612
91621B0616
9162261040
91622B1025
91651B0620
91651B0820
9167180816
9326954012
9356855014
30 parts on this diagram · 2 diagrams in section
