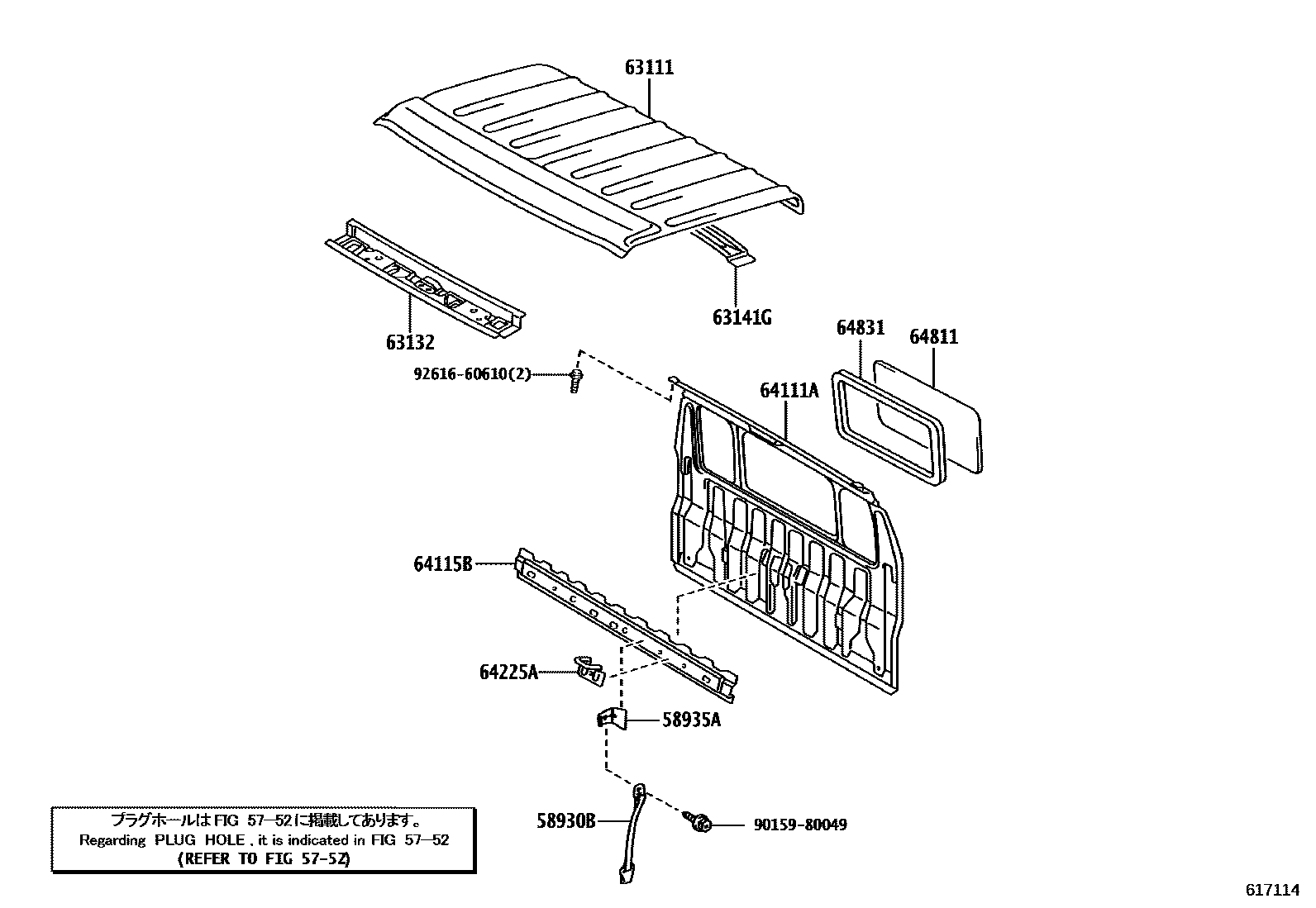

Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1

5752

58930BBAND ASSY, ENGINE SERVICE HOLE COVER SUPPORT

main58930-25010iLY230..LHD202202-202503

58935ABRACKET, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58935-37020iLY230..LHD¥240202202-202503

63111PANEL, ROOF

main63111-37120iGDY231..CBU¥16,500202108-202503

63132PANEL, WINDSHIELD HEADER, INNER

main63109-37050iGDY231..IV3¥4,090202209-202503

main63132-37074iGDY231,LY230¥4,090202108-202209

sub63109-37050¥4,090

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37170iGDY231..CBU¥3,860202108-202503

64111APANEL, BACK

main64111-37376iGDY231..CBU¥20,000202108-202503

64115BREINFORCEMENT, BACK PANEL

main64115-25040iGDY231,LY230¥6,300202108-202210

main64115-25041iGDY231..CBU¥6,300202211-202410

main64115-25042iLY230¥6,300202411-202412

main64115-25043iLY230202412-202503

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64209-37010iGDY231..CBU¥630202108-202503

64811GLASS, BACK WINDOW

main64811-25030iGDY231..CBU¥0202108-202503

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041iGDY231..CBU¥2,600202108-202503

9015980049

main90159-80049¥70

9261660610

main92616-60610¥60

13 parts on this diagram · 2 diagrams in section
