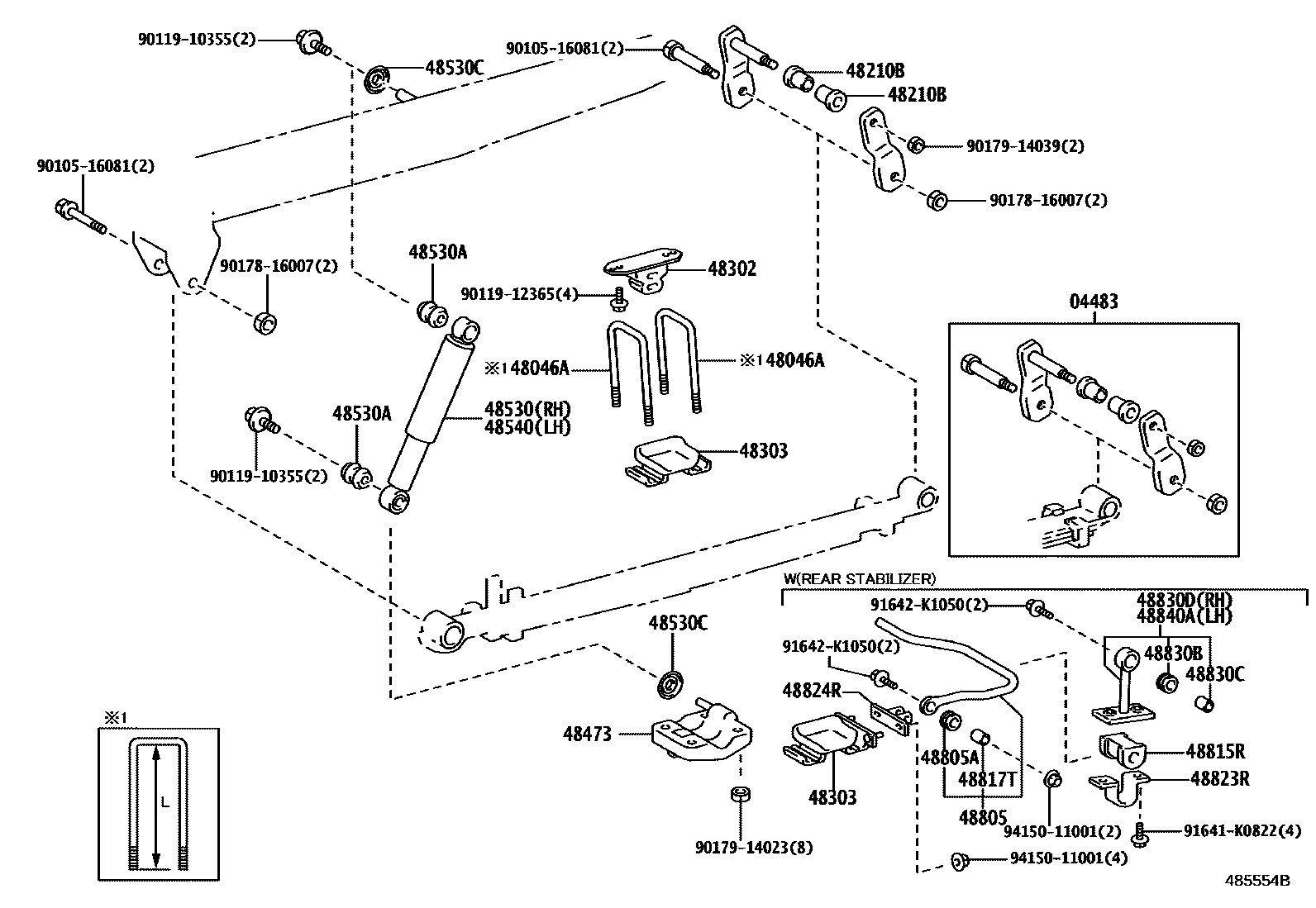

Toyota DYNA — REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
48046ABOLT, U(FOR REAR SPRING)
L=190
L=255
L=255
48210SPRING ASSY, REAR RH
MAIN 2+HELPER 1-LEAF,TYPE B:REFER ILLUST.
MAIN 3+HELPER 2-LEAF
MAIN 3+HELPER 2-LEAF
48210BBUSH(FOR REAR SPRING PIN)
48302SPRING SUB-ASSY, HOLLOW
48303SEAT SUB-ASSY, HOLLOW SPRING
48473SEAT, REAR SPRING U BOLT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-25230
MARK 48531-25250
MARK 48531-25250
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-25230
MARK 48531-25250
MARK 48531-25250
48805ABUSH(FOR REAR STABILIZER BAR)
48815RBUSH, STABILIZER(FOR REAR)
48817TCOLLAR(FOR STABILIZER REAR BAR)
48823RCOVER, STABILIZER LINK(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
48830BBUSH(FOR REAR STABILIZER LINK)
48830CSPACER(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010516081
9011910355
9011912365
9017816007
9017914023
9017914039
91641K0822
91642K1050
9415011001
30 parts on this diagram · 4 diagrams in section
