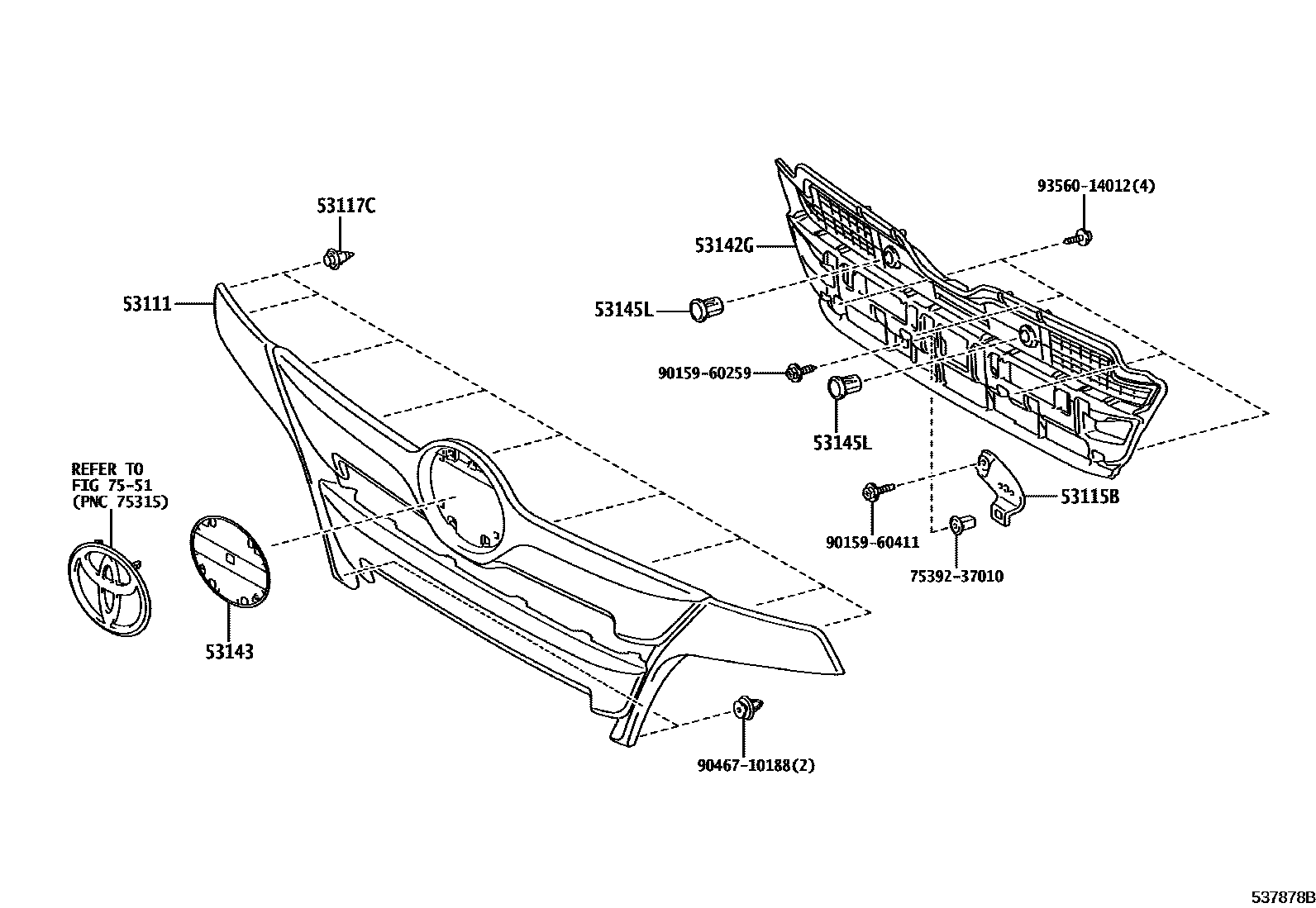

Toyota DYNA — RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-37A70-A0iGDY231..IV3202108-202405

WHITE,058

main53111-37A70-A0iGDY231..CBU202108-202305

WHITE,058

main53111-37A70-A0iLY230202108-202503

WHITE,058

main53111-37A70-B1iGDY231..CBU202108-202305

SILVER ME.,199

main53111-37A70-J1iGDY231..IV3202108-202405

BLUE,8P0

main53111-37A70-J1iGDY231..CBU202108-202305

BLUE,8P0

main53111-37A70-J1iLY230202108-202503

BLUE,8P0

53115BBRACKET, RADIATOR GRILLE

main53115-37100iGDY231..CBU¥560202108-202305

main53115-37100iGDY231..IV3¥560202108-202405

main53115-37100iLY230¥560202108-202503

53117CRETAINER, RADIATOR GRILLE, NO.1

main67771-37040iGDY231..IV3¥80202108-202405

main67771-37040iGDY231..CBU¥80202108-202305

main67771-37040iLY230¥80202108-202503

53142GGARNISH, RADIATOR GRILLE, NO.2

main53142-37010iGDY231..CBU¥7,200202108-202305

main53142-37010iGDY231..IV3¥7,200202108-202405

main53142-37010iLY230¥7,200202108-202503

53143GARNISH, RADIATOR GRILLE, NO.3

main53143-37010iGDY231..CBU¥1,120202108-202305

main53143-37010iGDY231..IV3¥1,120202108-202405

main53143-37010iLY230¥1,120202108-202503

53145LCLIP, RADIATOR GRILLE

main53145-37040iGDY231..CBU¥120202108-202305

main53145-37040iGDY231..IV3¥120202108-202405

main53145-37040iLY230¥120202108-202503

7551

7539237010RETAINER, OUTSIDE MOULDING

main75392-37010¥70

9015960259

main90159-60259¥100

9015960411

main90159-60411¥100

9046710188

main90467-10188¥80

9356014012

main93560-14012¥70

12 parts on this diagram · 1 diagram in section
