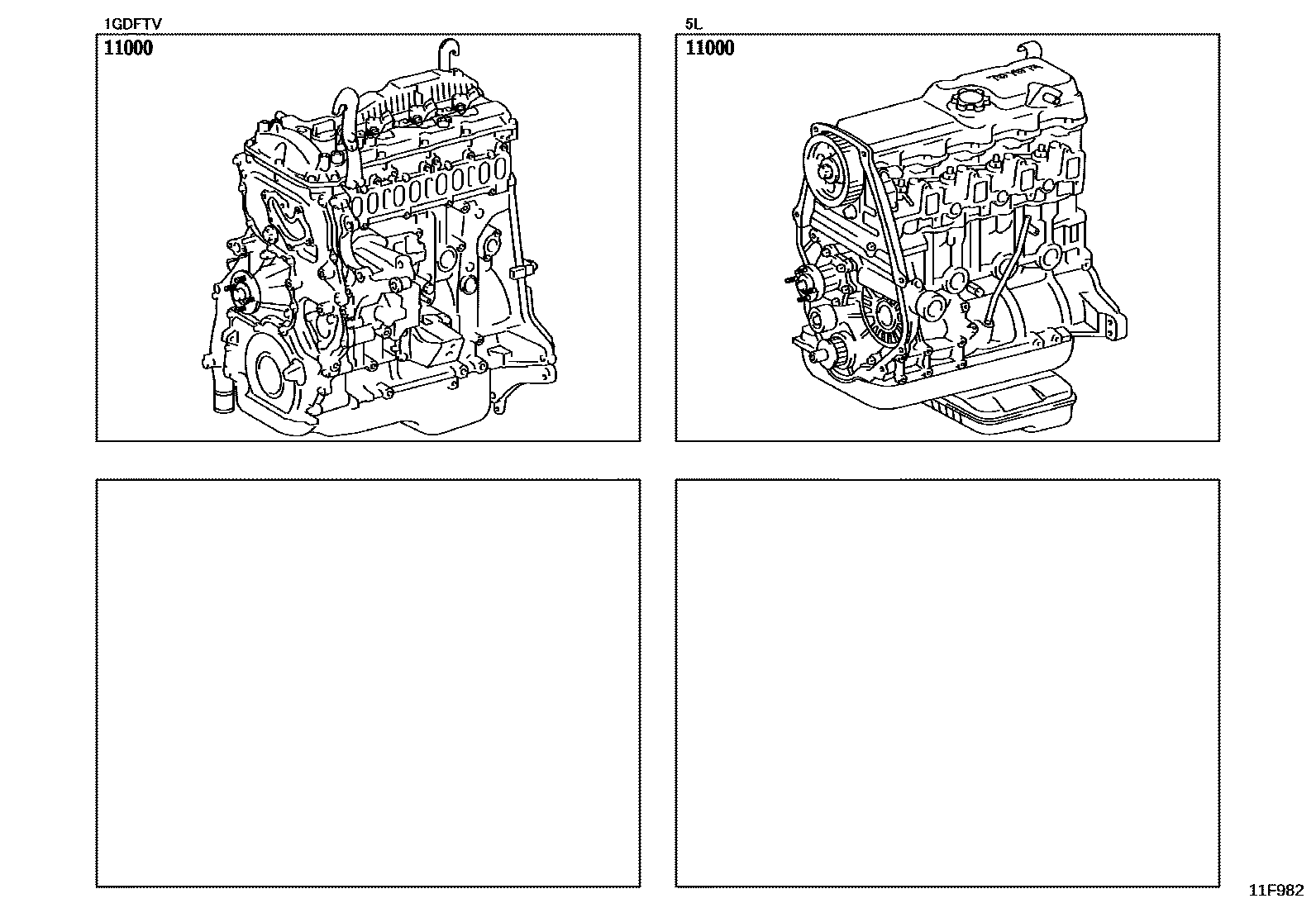

Toyota DYNA — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-11C80i202108-202305

main19000-11E20i¥525,000202202-202405

main19000-5C590i202202-202503

1 parts on this diagram · 1 diagram in section
