Toyota DYNA — LOCK CYLINDER SET

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37190iGDY231..IV3¥5,100202108-202405

main69058-37190iLY230¥5,100202108-202503

main69058-37190iGDY231..CBU¥5,100202108-202305

69503CYLINDER SET, LOCK

main69005-25160iGDY231..IV3202108-202405

main69005-25160iGDY231..CBU202108-202305

main69005-25160iLY230202108-202503

69503AKEY, BLANK

main90999-00185iGDY231..CBU¥1,790202108-202305

MASTER KEY,W(*68)

main90999-00185iLY230¥1,790202108-202503

MASTER KEY,W(*68)

main90999-00185iGDY231..IV3¥1,790202108-202405

MASTER KEY,W(*68)

main90999-00186iLY230¥1,430202108-202503

MASTER KEY

main90999-00186iGDY231..CBU¥1,430202108-202305

MASTER KEY

main90999-00186iGDY231..IV3¥1,430202108-202405

MASTER KEY

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37020iGDY231..CBU¥5,600202108-202305

main69510-37020iGDY231..IV3¥5,600202108-202405

main69510-37020iLY230¥5,600202108-202503

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37040iGDY231..CBU¥5,600202108-202305

main69520-37040iGDY231..IV3¥5,600202108-202405

main69520-37040iLY230¥5,600202108-202503

77310DCAP ASSY, FUEL TANK

main77310-25060iGDY231..CBU¥6,500202108-202305

main77310-25060iGDY231..IV3¥6,500202108-202405

main77310-25060iLY230¥6,500202108-202503

89742ATRANSMITTER, DOOR CONTROL

main89742-60101iGDY231..CBU¥10,100202108-202305

89785BTRANSMITTER, TRANSPONDER KEY MASTER

89786BTRANSMITTER, TRANSPONDER KEY SUB

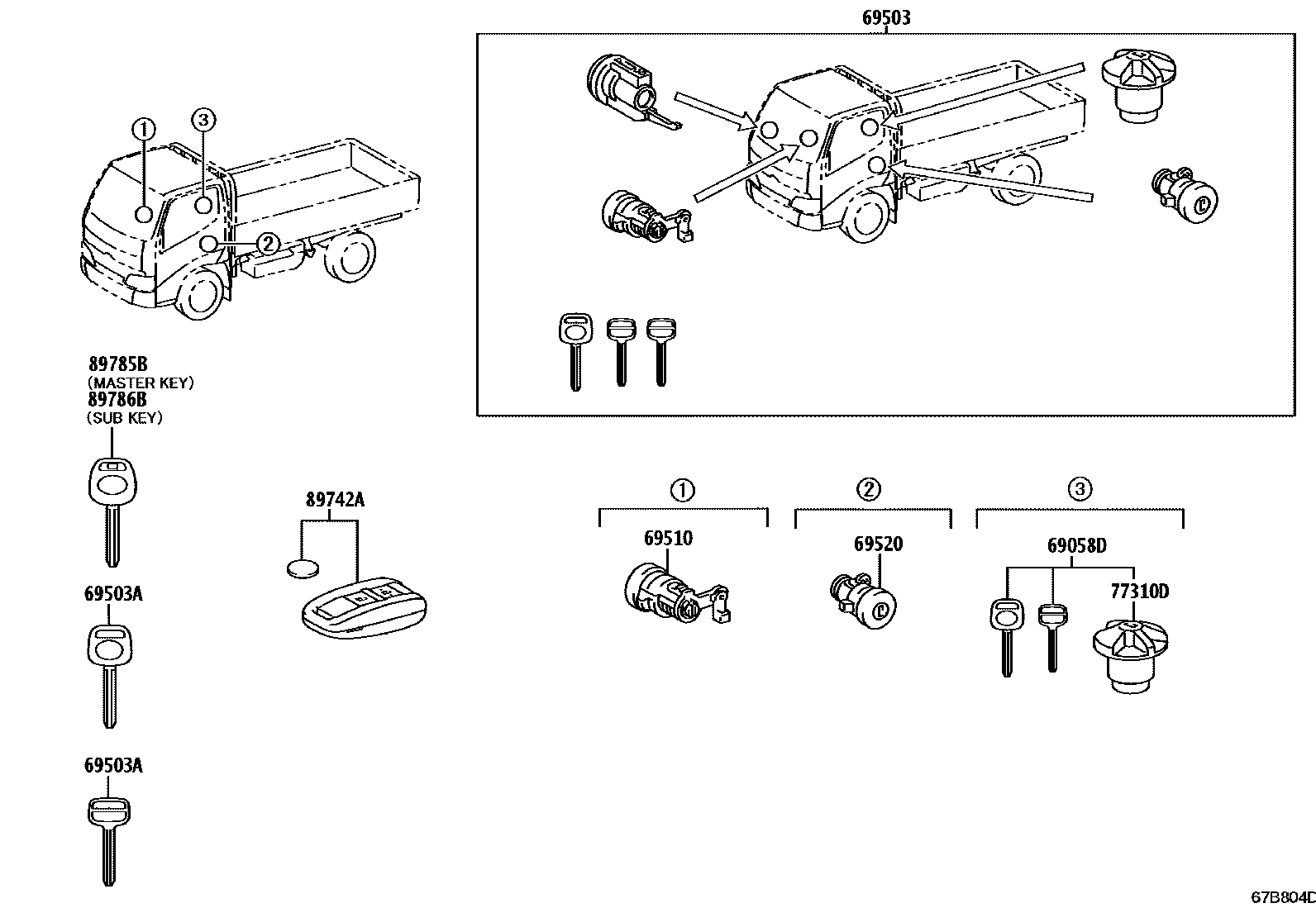

9 parts on this diagram · 1 diagram in section
