Toyota DYNA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W/O(COOLER) 0002 1BOOST VENTILATOR 0003 1AIR CONDITIONER 0004 1W/O(COOLER) 0005 1BOOST VENTILATOR

87010UNIT ASSY, AIR CONDITIONER

main87010-25040iLY230..RHD202202-202503

main87010-25060iLY230..LHD202202-202503

main87010-25070iGDY231..CBU¥58,000202108-202305

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-37030iGDY231..CBU¥14,500202108-202503

main87103-37050iLY230..LHD¥14,500202202-202503

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-37110iGDY231..CBU¥17,800202108-202305

87121KBRACKET, HEATER

main87121-37310iGDY231..CBU¥1,080202108-202503

main87121-37320iLY230..LHD202202-202503

87138CRESISTOR, BLOWER

main87138-0K090iGDY231..CBU¥1,070202108-202503

sub87138-0K290

87139CFILTER, CLEAN AIR

main88568-37010iGDY231..CBU¥2,380202108-202503

STANDARD

87210FCASE ASSY, AIR DAMPER

main87210-37100iGDY231..CBU¥7,600202108-202503

main87210-37120iLY230..LHD¥8,600202202-202503

87441GFILTER, HEATER AIR

main87441-37010iGDY231..CBU202108-202503

main87441-37020iLY230..LHD202202-202503

88326APLATE, COVER

main88326-37020iGDY231..IV3¥630202202-202503

main88326-37030iLY230..LHD202202-202503

88688ZBRACKET

main88688-37N90iGDY231..CBU¥430202108-202503

88897MGROMMET (FOR HEATER PIPE)

main87128-37081iGDY231..CBU¥270202108-202305

main87128-37090iGDY231..IV3202202-202503

9011906448

main90119-06448¥90

9011906536

main90119-06536¥150

9011908C27

main90119-08C27¥90

9017806018

main90178-06018¥80

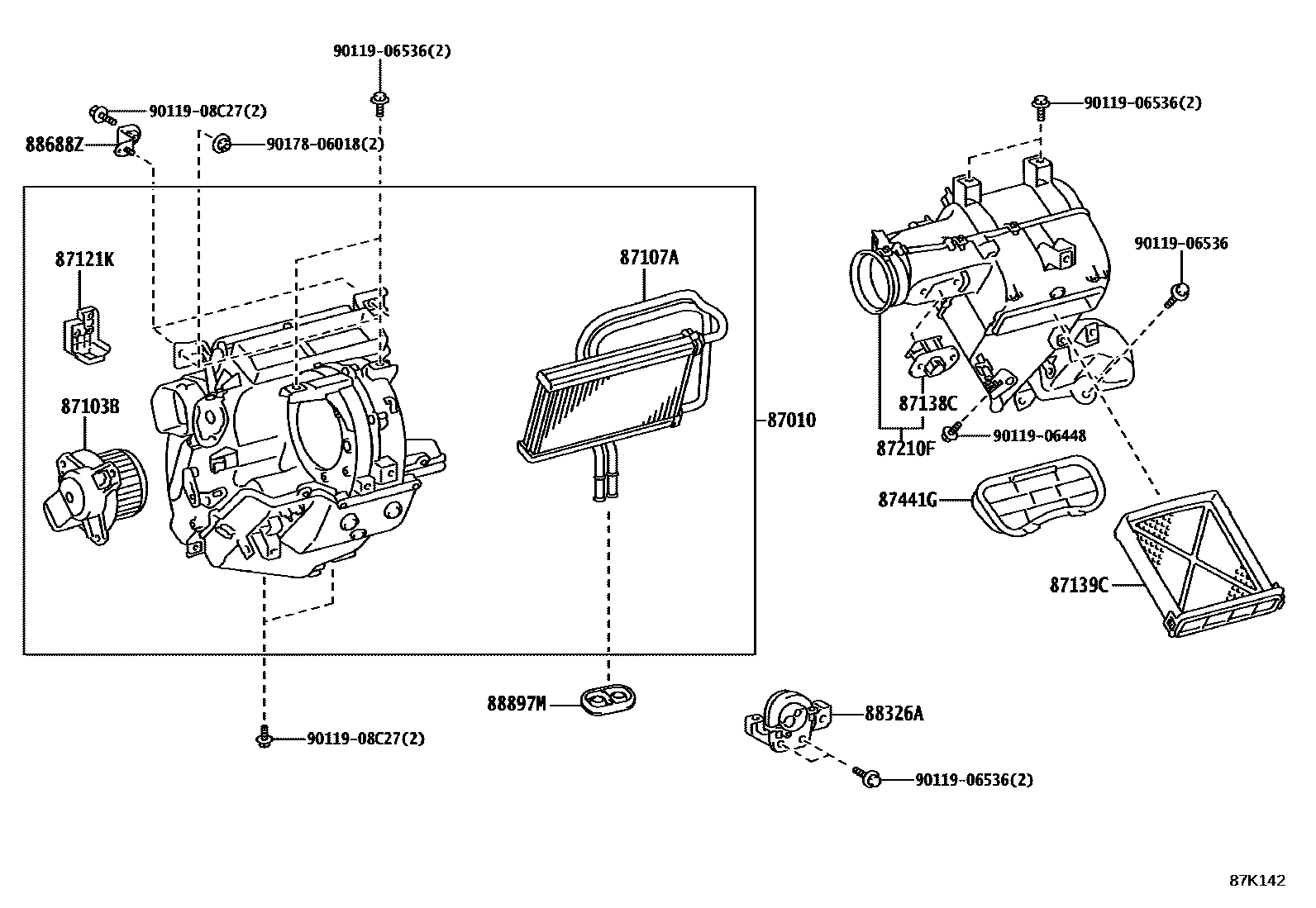

15 parts on this diagram · 5 diagrams in section
