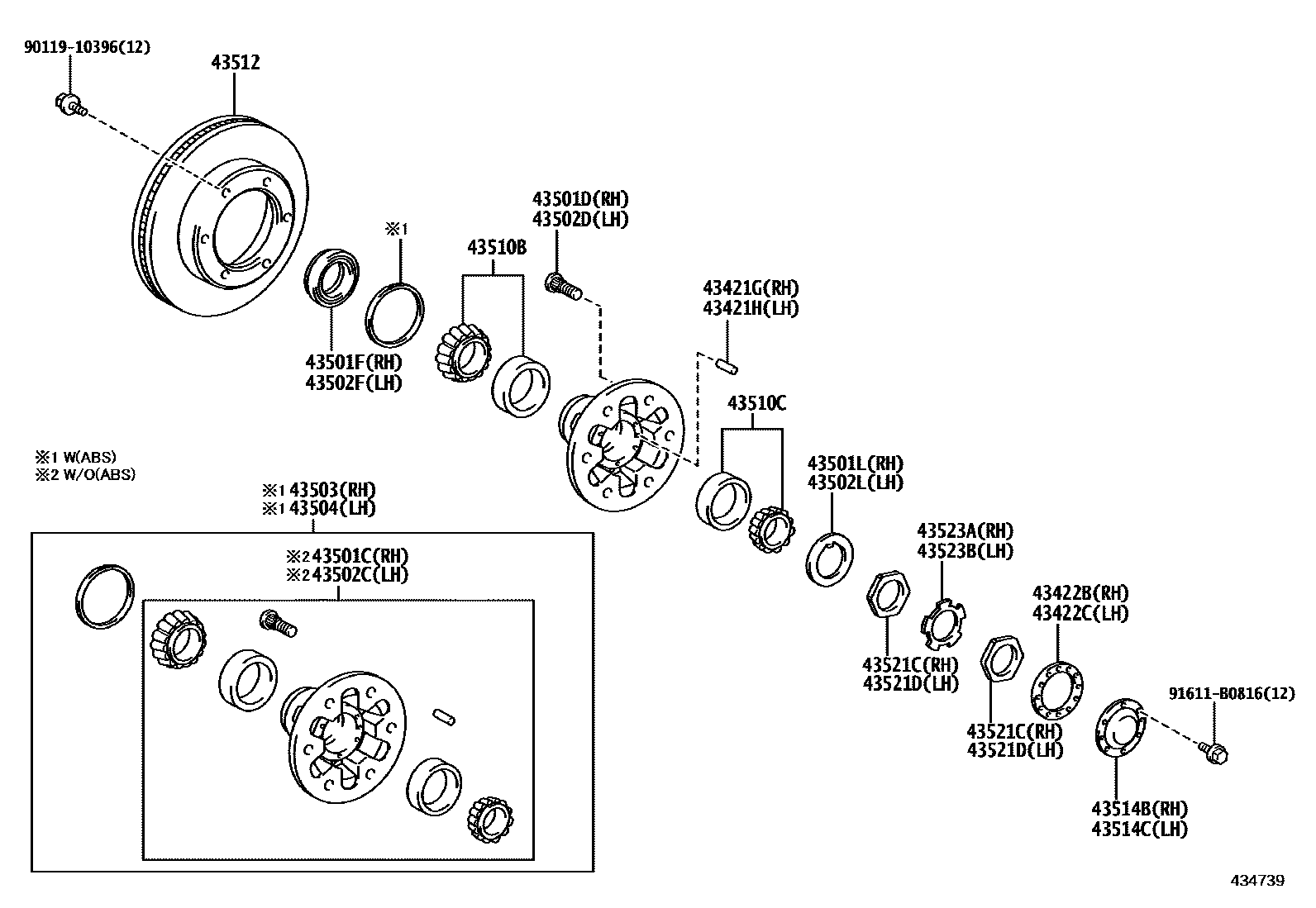

Toyota DYNA — FRONT AXLE HUB
43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43503HUB SUB-ASSY, FRONT AXLE W/ABS ROTOR, RH
43504HUB SUB-ASSY, FRONT AXLE W/ABS ROTOR, LH
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43512DISC, FRONT
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43521CNUT, FRONT WHEEL ADJUSTING, RH
43521DNUT, FRONT WHEEL ADJUSTING, LH
43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH
43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH
9011910396
91611B0816
25 parts on this diagram · 1 diagram in section
