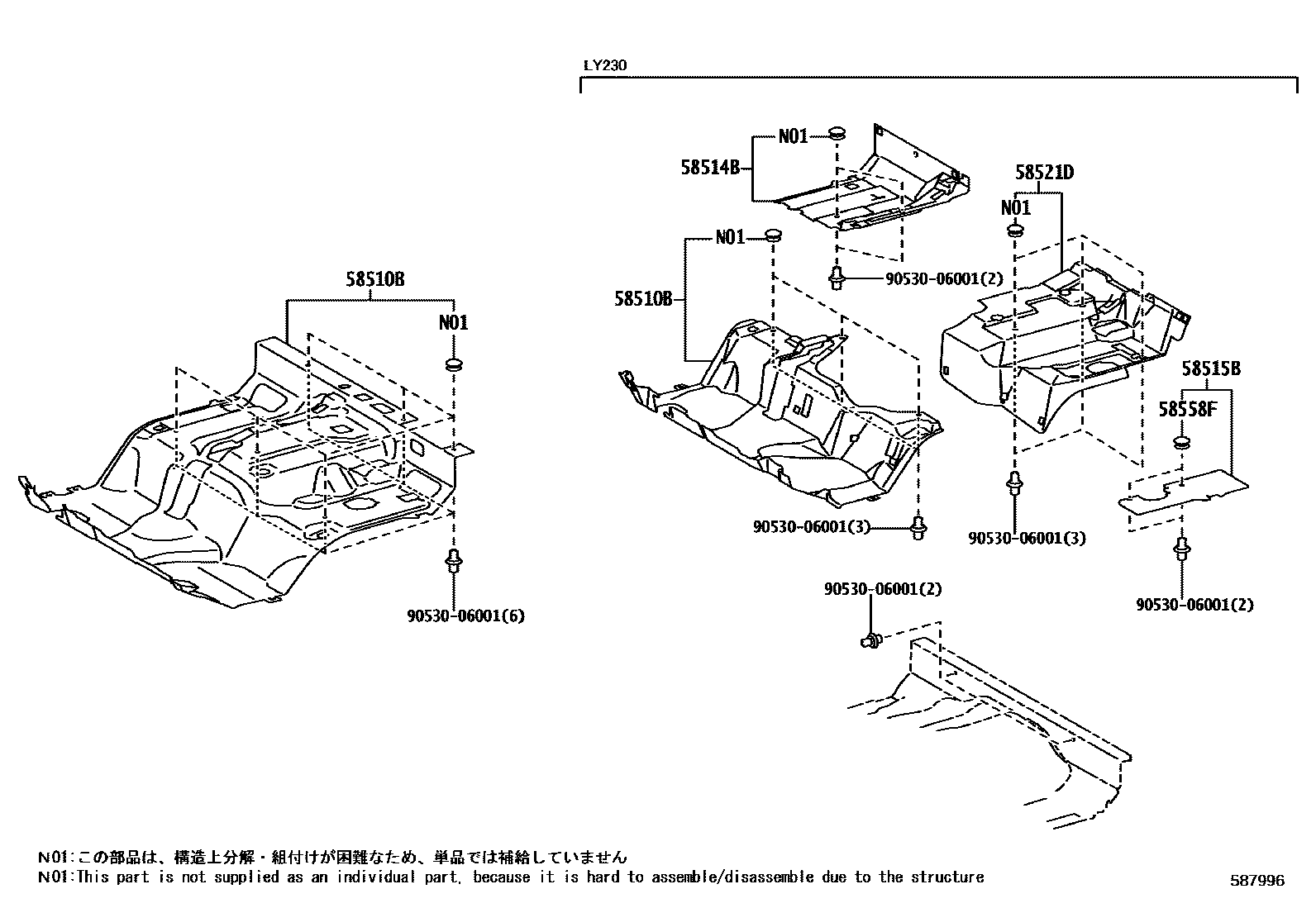

Toyota DYNA — FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510BMAT, FRONT FLOOR, FRONT

main58510-25890-B0iGDY231202108-202112

GRAY,TRIM1#

main58510-25891-B0iGDY231..CBU202201-202405

GRAY,TRIM1#

main58510-25A10-B0iLY230..RHD202202-202503

GRAY,TRIM1#

main58510-37P60-B1iLY230..LHD202202-202503

GRAY,TRIM1#

58514BMAT, FLOOR, REAR RH

main58514-25150-B0iLY230..RHD202202-202503

GRAY,TRIM1#

58515BMAT, FLOOR, REAR LH

main58515-37100-B1iLY230..RHD202202-202503

GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-25200-B0iLY230..RHD202202-202503

GRAY,TRIM1#

58558FFASTENER, PILE, UPR

main90530-04005-S6iLY230..RHD202202-202503

GRAY,TRIM1#

sub90530-04005¥200

9053006001

main90530-06001¥110

6 parts on this diagram · 2 diagrams in section
