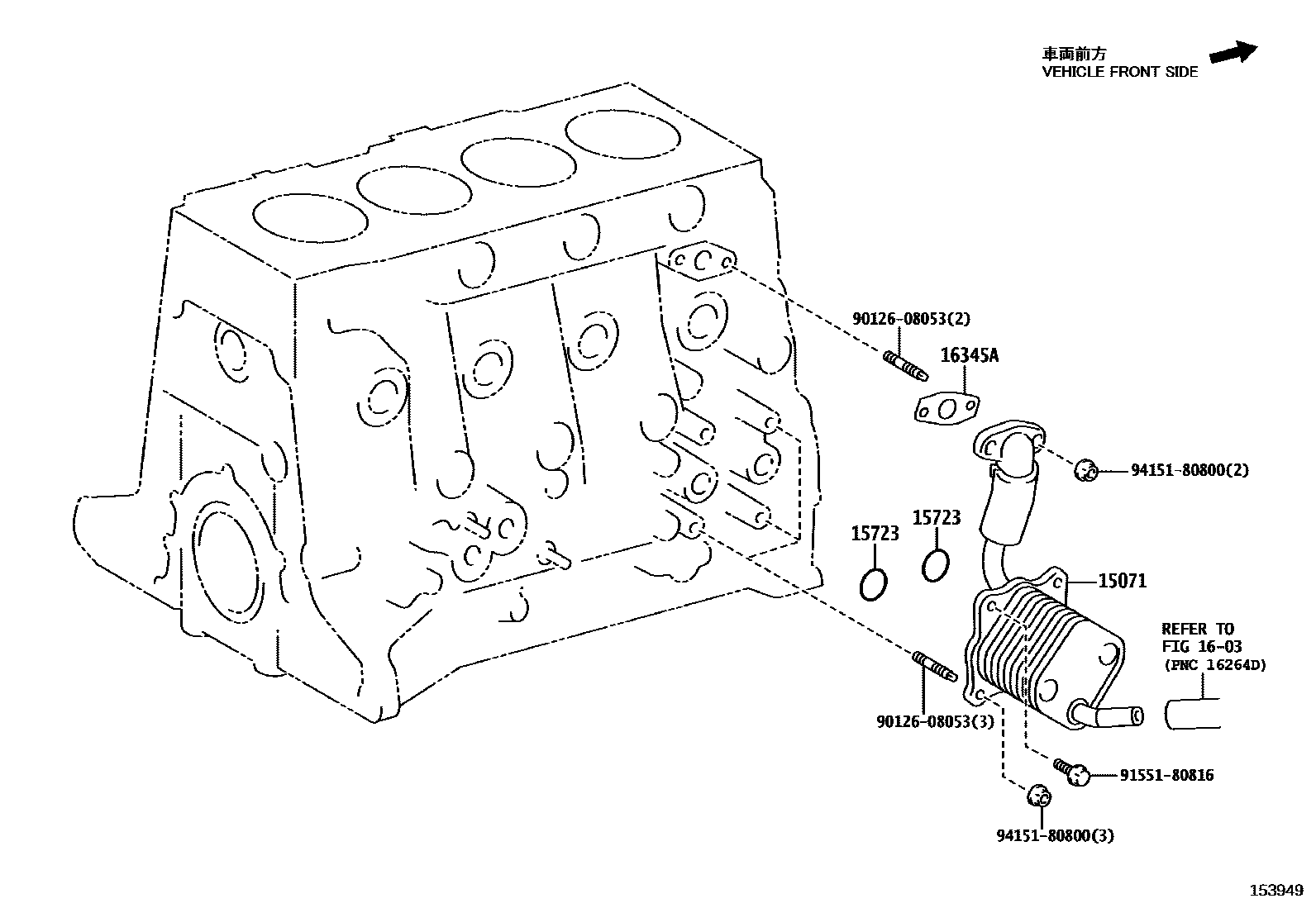

Toyota DYNA — ENGINE OIL COOLER

0001 1 0002 1

15071COOLER SET, ENGINE OIL

main15071-08010i1GDFTV..GDY231..CBU¥39,100202209-202305

main15071-08010i1GDFTV..GDY231..IV3¥39,100202209-202405

main15071-11010i1GDFTV..GDY231¥42,300202108-202208

sub15071-08010¥39,100

15723RING, O

main90301-22007i1GDFTV..GDY231..CBU¥190202108-202305

main90301-22007i1GDFTV..GDY231..IV3¥190202108-202405

1603

16345AGASKET, WATER OUTLET PIPE

main16345-11010i1GDFTV..GDY231..CBU¥270202108-202305

main16345-11010i1GDFTV..GDY231..IV3¥270202108-202405

9012608053

main90126-08053¥260

9155180816

main91551-80816¥80

9415180800

main94151-80800¥80

7 parts on this diagram · 2 diagrams in section
