Toyota DYNA — ELECTRONIC CONTROLED DIESEL (ECD)

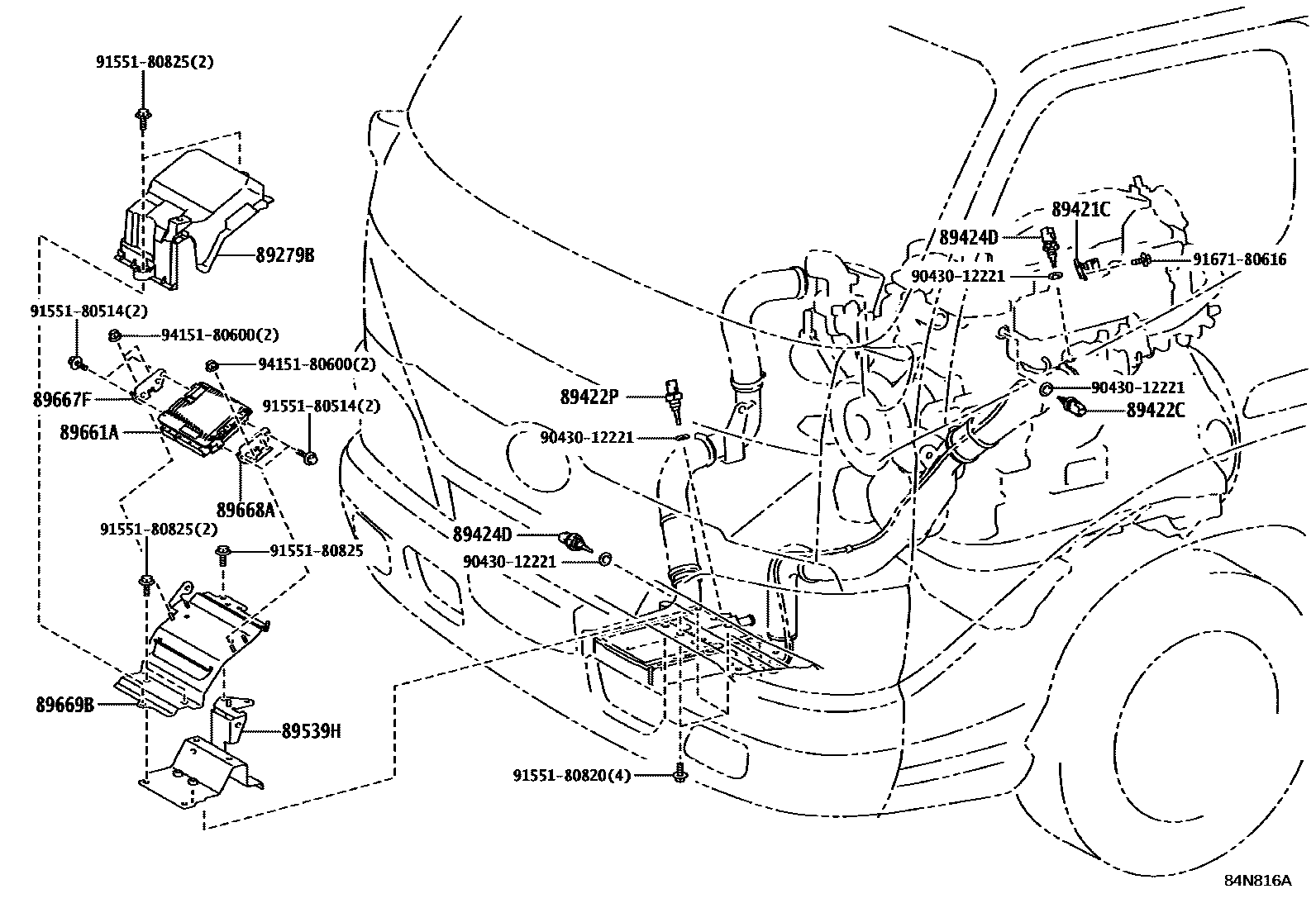

Parts diagram

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

mainF171225010i202108-202405

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030i¥5,900202108-202405

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030i¥2,410202108-202405

89422PSENSOR, WATER TEMPERATURE

main89422-33030i¥2,410202108-202305

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60020i¥4,350202108-202305

INTERCOOLER SIDE,INTAKE SIDE

main89424-60020i¥4,350202108-202405

INTAKE SIDE

89539HBRACKET, COMPUTER

main55173-25050i¥6,700202108-202405

89661ACOMPUTER, ENGINE CONTROL

main89661-25590i¥61,400202108-202212

DENSO

main89661-25600i¥67,500202108-202212

DENSO

sub89661-25601¥52,000

main89661-25720i¥52,000202202-202405

DENSO

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-25160i¥360202108-202405

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-25150i¥360202108-202405

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-25040i¥4,850202108-202405

9043012221

main90430-12221¥200

9155180514

main91551-80514¥60

9155180820

main91551-80820¥80

9155180825

main91551-80825¥80

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
