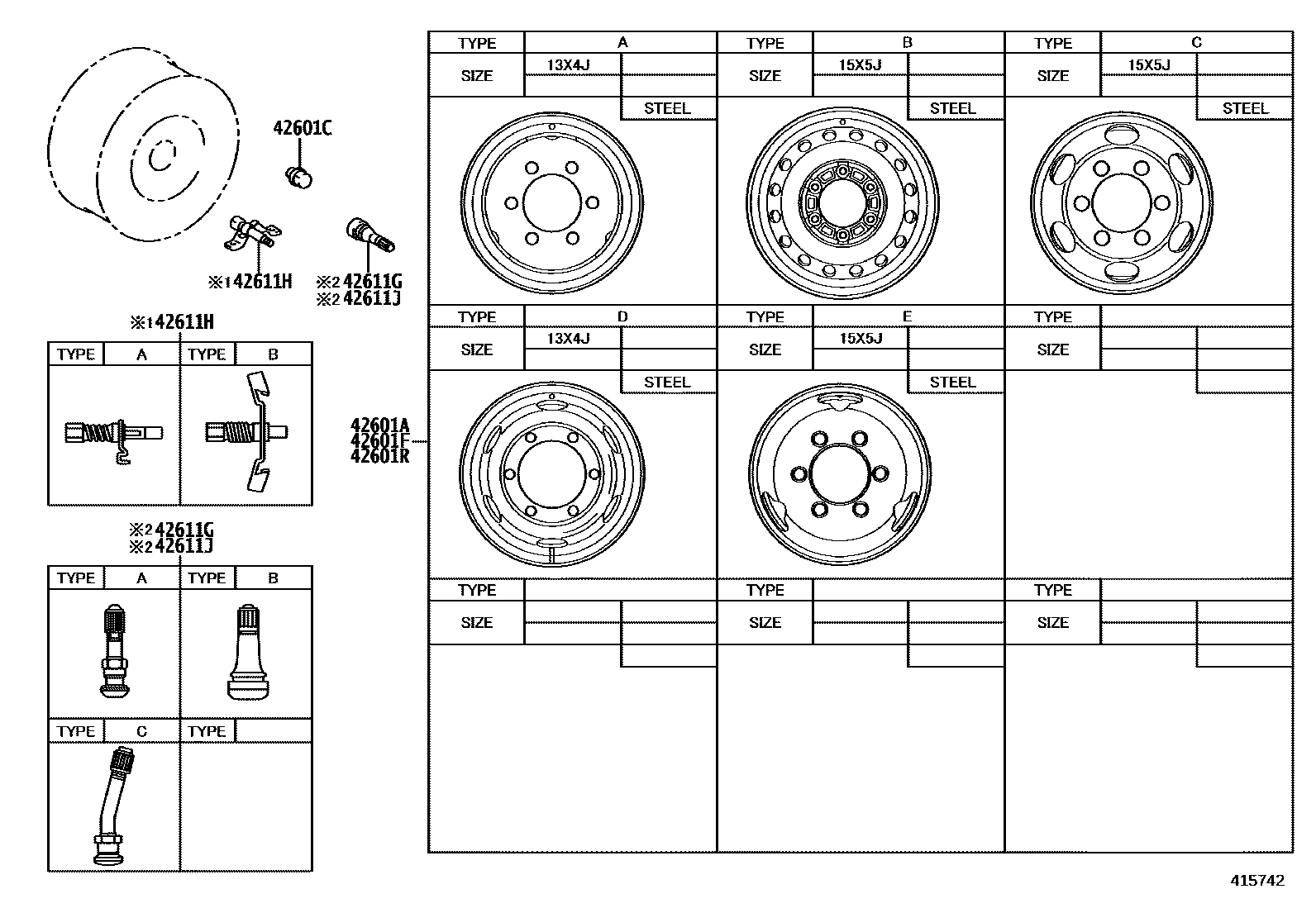

Toyota DYNA — DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
15X5J, #,TYPE B:REFER ILLUST.
13X4J, #,TYPE D:REFER ILLUST.
15X5J, #,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
FRONT RH
FRONT LH
FRONT
REAR RH
REAR LH
42601FWHEEL, DISC (FOR FRONT)
15X5J, #,TYPE B:REFER ILLUST.
15X5J, #,TYPE E:REFER ILLUST.
42601RWHEEL, DISC (FOR REAR)
13X4J, #,TYPE D:REFER ILLUST.
15X5J, #,TYPE E:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
42611HEXTENSION, VALVE
TYPE A:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
7 parts on this diagram · 2 diagrams in section
