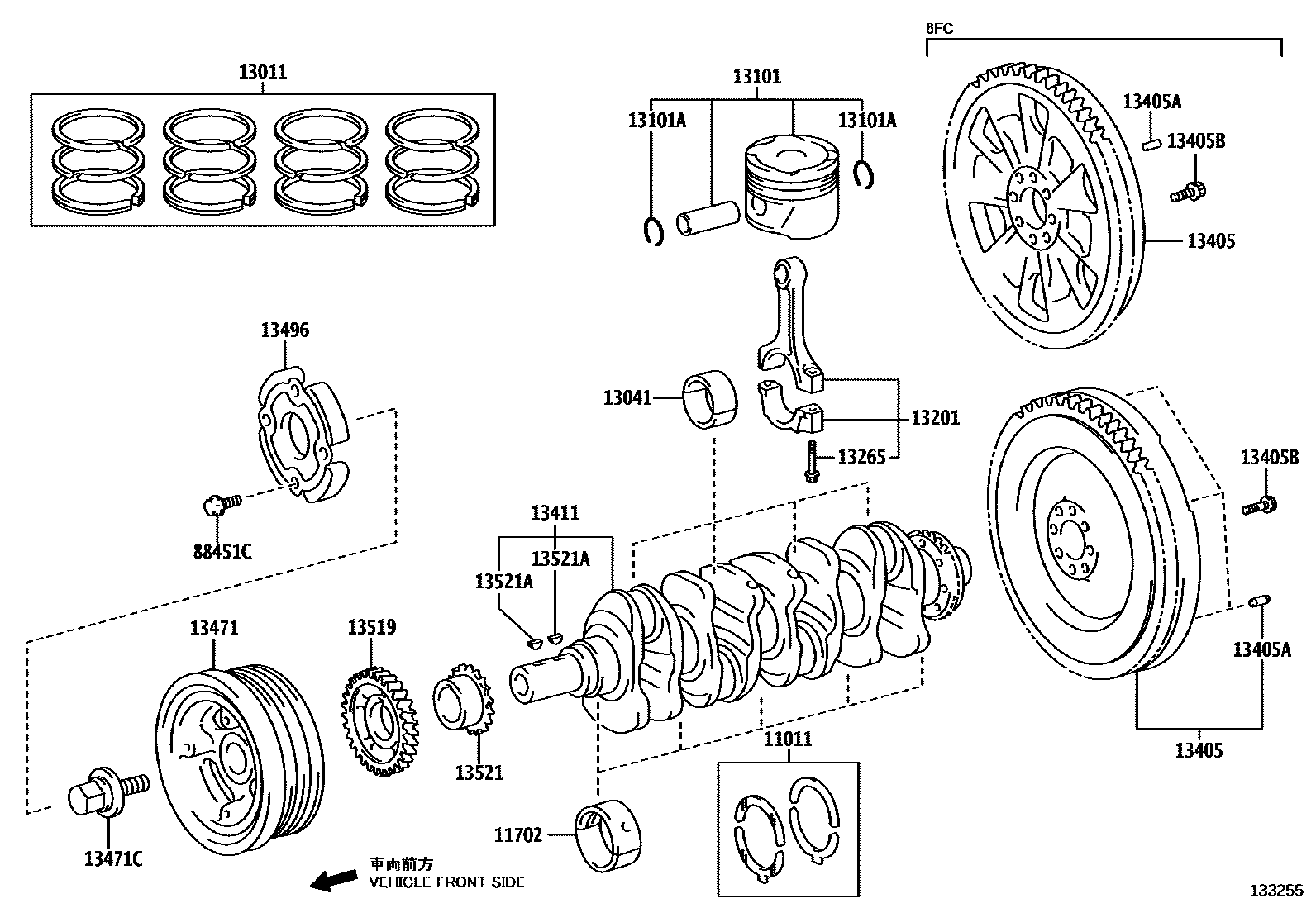

Toyota DYNA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
U/S 0.25
U/S 0.50
13011RING SET, PISTON
STD
STD
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A,(J)
MARK B,(J)
MARK C,(J)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=23,OD=8
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
88451CBOLT, FLANGE W/WASHER
19 parts on this diagram · 2 diagrams in section
