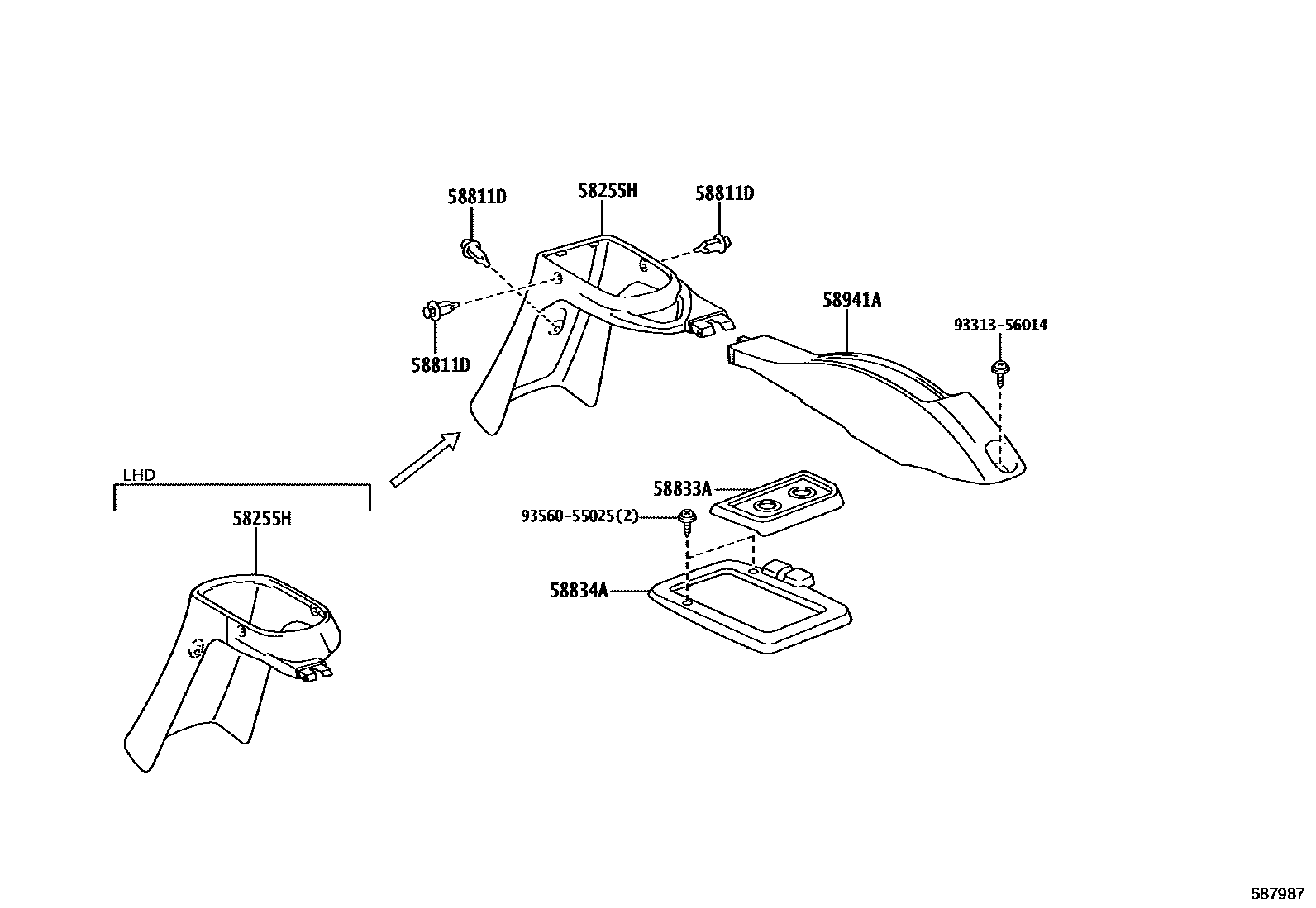

Toyota DYNA — CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-25030-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main58255-25030-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main58255-25030-B0iLY230..RHD202108-202503

GRAY,TRIM1#

main58255-37061-B1iLY230..LHD202202-202503

GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-C1iGDY231..CBU202108-202305

BLACK,TRIM1#

sub90467-07191¥130

main90467-07191-C1iGDY231..IV3202108-202405

BLACK,TRIM1#

sub90467-07191¥130

main90467-07191-C1iLY230202108-202503

BLACK,TRIM1#

sub90467-07191¥130

58833ACOVER, CONSOLE, UPPER

main58839-37010-B1iLY230..RHD202202-202503

GRAY,TRIM1#

58834ACOVER, CONSOLE, LOWER

main58834-25011-B1iLY230..RHD202202-202503

GRAY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-37050-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

main58941-37050-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main58941-37050-B1iLY230202108-202503

GRAY,TRIM1#

9331356014

main93313-56014¥60

9356055025

main93560-55025¥110

7 parts on this diagram · 1 diagram in section
