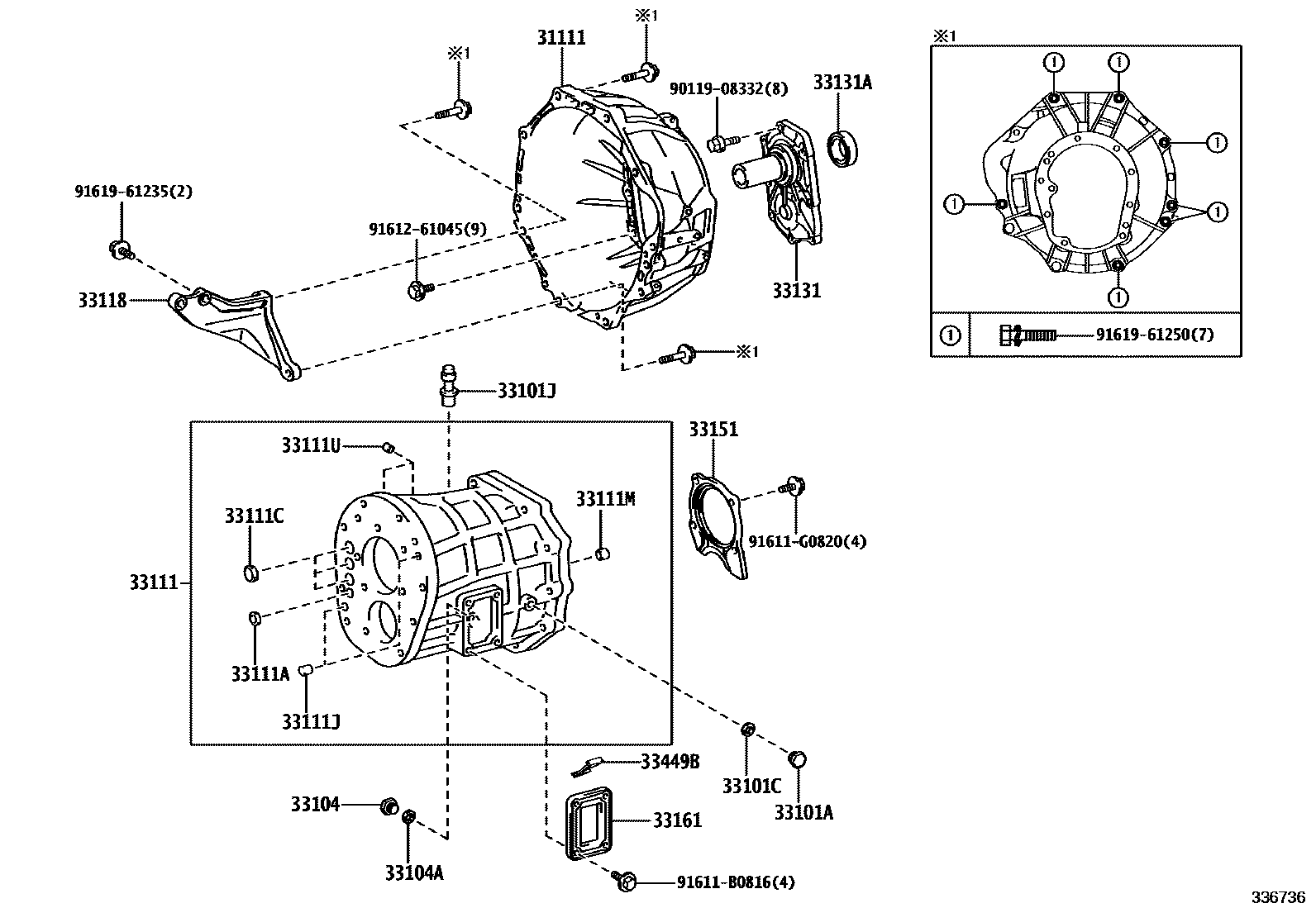

Toyota DYNA — CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R451 0002 1R452

31111HOUSING, CLUTCH

main31111-25030iLY230¥23,700202202-202503

main31111-26110iGDY231..IV3¥20,900202108-202405

main31111-26110iGDY231..5F..CBU¥20,900202108-202305

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iGDY231..5F..CBU¥180202108-202305

main90341-18006iGDY231..IV3¥180202108-202405

main90341-18006iLY230¥180202108-202503

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGDY231..5F..CBU¥110202108-202305

main90430-18008iGDY231..IV3¥110202108-202405

main90430-18008iLY230¥110202108-202503

33101JPLUG, BREATHER

main90930-03085iGDY231..5F..CBU¥500202108-202305

main90930-03085iGDY231..IV3¥500202108-202405

main90930-03085iLY230¥500202108-202503

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGDY231..IV3¥180202108-202405

main90341-18006iGDY231..5F..CBU¥180202108-202305

main90341-18006iLY230¥180202108-202503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGDY231..5F..CBU¥110202108-202305

main90430-18008iGDY231..IV3¥110202108-202405

main90430-18008iLY230¥110202108-202503

33111CASE, MANUAL TRANSMISSION

main33101-25021iGDY231..5F..CBU¥43,300202108-202305

main33101-25021iGDY231..IV3¥43,300202108-202405

main33101-25021iLY230¥43,300202108-202503

33111APLUG, MANUAL TRANSMISSION CASE

main90331-14004iGDY231..5F..CBU¥370202108-202305

main90331-14004iGDY231..IV3¥370202108-202405

main90331-14004iLY230¥370202108-202503

33111CPLUG(FOR TRANSMISSION CASE)

main96411-41800iGDY231..5F..CBU¥110202108-202305

OD=18

main96411-41800iGDY231..IV3¥110202108-202405

OD=18

main96411-41800iLY230¥110202108-202503

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGDY231..5F..CBU¥130202108-202305

L=16,OD=12

main90250-12002iGDY231..IV3¥130202108-202405

L=16,OD=12

main90250-12002iLY230¥130202108-202503

L=16,OD=12

33111MPIN, RING(FOR TRANSMISSION CASE)

main90253-15001iLY230¥120202108-202503

main90253-15001iGDY231..5F..CBU¥120202108-202305

main90253-15001iGDY231..IV3¥120202108-202405

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLY230¥120202108-202503

L=11,OD=11

main90253-11001iGDY231..5F..CBU¥120202108-202305

L=11,OD=11

main90253-11001iGDY231..IV3¥120202108-202405

L=11,OD=11

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY230¥1,560202202-202503

main33118-25060iGDY231..5F..CBU¥7,400202108-202305

main33118-25060iGDY231..IV3¥7,400202108-202405

33131RETAINER, BEARING, FRONT(MTM)

main33131-35032iLY230¥3,290202108-202503

main33131-35032iGDY231..5F..CBU¥3,290202108-202305

main33131-35032iGDY231..IV3¥3,290202108-202405

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32022iGDY231..5F..CBU¥350202108-202305

main90311-32022iGDY231..IV3¥350202108-202405

main90311-32022iLY230¥350202108-202503

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iGDY231..5F..CBU¥1,400202108-202305

main33151-35020iGDY231..IV3¥1,400202108-202405

main33151-35020iLY230¥1,400202108-202503

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-25010iGDY231..5F..CBU¥630202108-202305

main33161-25010iGDY231..IV3¥630202108-202405

main33161-25010iLY230¥630202108-202503

33449BMAGNET, TRANSMISSION

main33449-35030iGDY231..5F..CBU¥230202108-202305

main33449-35030iGDY231..IV3¥230202108-202405

main33449-35030iLY230¥230202108-202503

9011908332

main90119-08332¥370

91611B0816

main91611-B0816¥140

91611G0820

main91611-G0820¥160

9161261045

main91612-61045¥120

9161961235

main91619-61235¥130

9161961250

main91619-61250¥140

24 parts on this diagram · 2 diagrams in section
