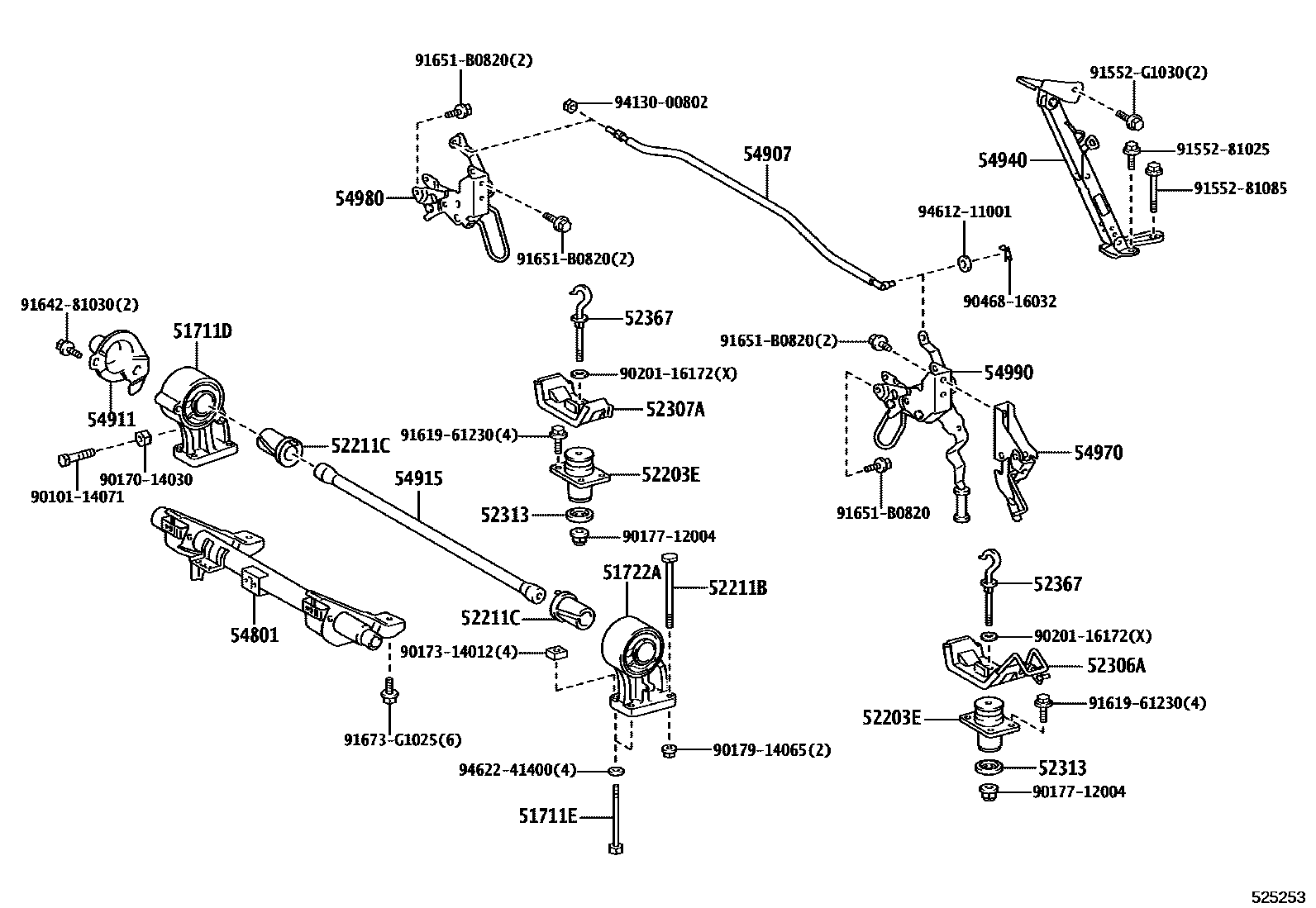

Toyota DYNA — CAB MOUNTING & BODY MOUNTING
51711DBRACKET, CAB FRONT MOUNTING
51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)
51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52313STOPPER, CAB REAR MOUNTING REBOUND
52367HOOK, CAB REAR MOUNTING
54801TUBE SUB-ASSY, TILT CAB, NO.1
54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
54911ARM, TILT CAB SPRING SUPPORT, NO.1
54915SPRING, TILT CAB, NO.1
54940STAY ASSY, TILT CAB
54970LATCH ASSY, TILT CAB STOPPER
54980LOCK ASSY, TILT CAB MOUNTING, RH
54990LOCK ASSY, TILT CAB MOUNTING, LH
9010114071
9017014030
9017314012
9017712004
9017914065
9020116172
9046816032
9155281025
9155281085
91552G1030
9161961230
9164281030
91651B0820
91673G1025
9413000802
9461211001
9462241400
35 parts on this diagram · 2 diagrams in section
