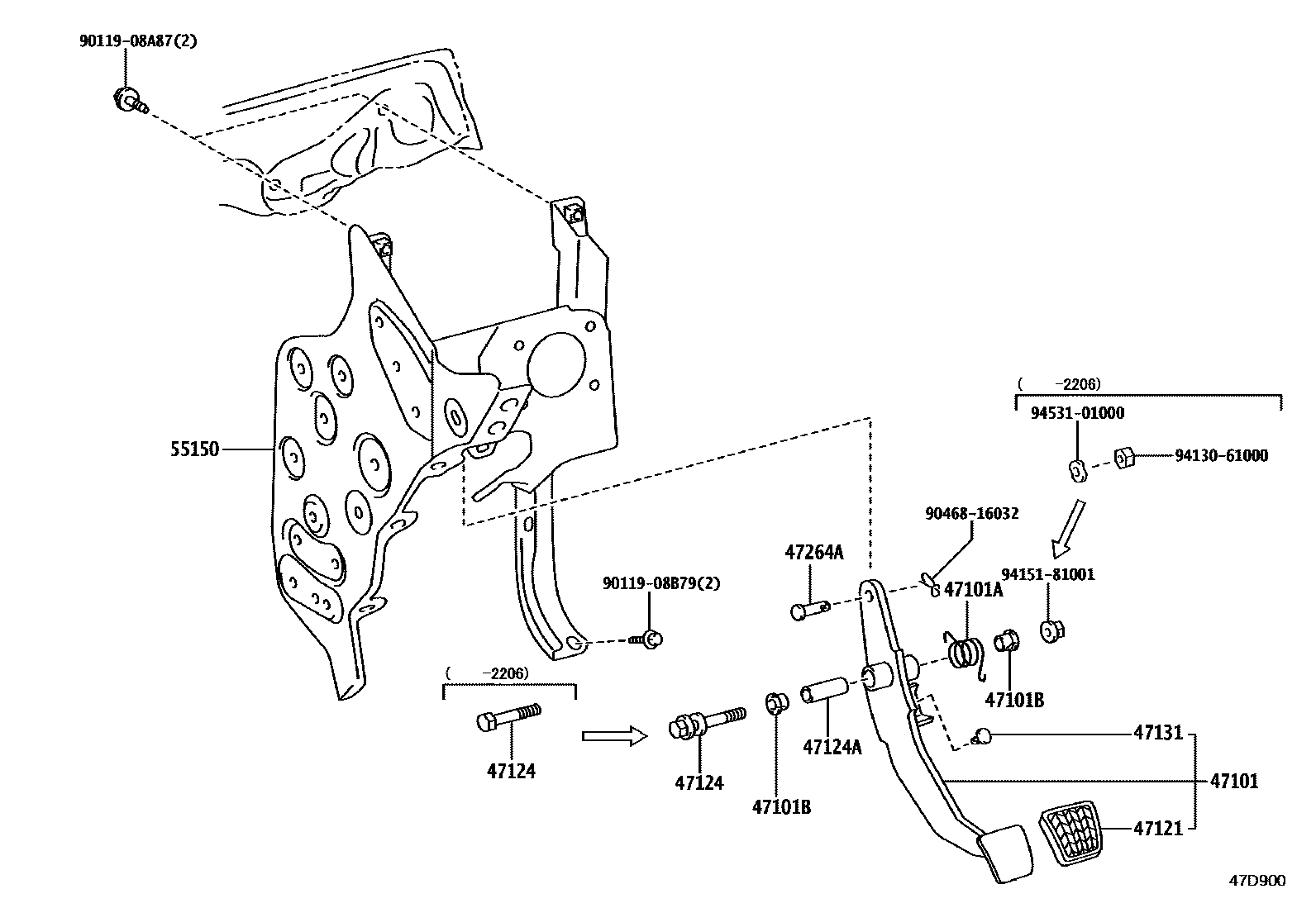

Toyota DYNA — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-37131iGDY231..CBU¥1,210202108-202503

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iGDY231..CBU¥200202108-202503

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iGDY231..CBU¥160202108-202503

47121PAD, BRAKE PEDAL

main31321-52020iGDY231..CBU¥200202108-202503

47124SHAFT, BRAKE PEDAL

main90119-10980iGDY231..IV3¥190202206-202503

main91112-61070iGDY231,LY230¥260202108-202206

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iGDY231..CBU¥210202108-202503

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGDY231..CBU¥110202108-202503

47264APIN(FOR PUSH ROD)

main90240-10037iGDY231..CBU¥260202108-202503

55150BRACKET ASSY, PEDAL

main55150-37461iGDY231..CBU¥11,000202108-202503

main55150-37501iLY230..LHD202202-202503

9011908A87

main90119-08A87¥100

9011908B79

main90119-08B79¥80

9046816032

main90468-16032¥80

9413061000

main94130-61000¥70

9415181001

main94151-81001¥110

9453101000

main94531-01000¥90

15 parts on this diagram · 1 diagram in section
