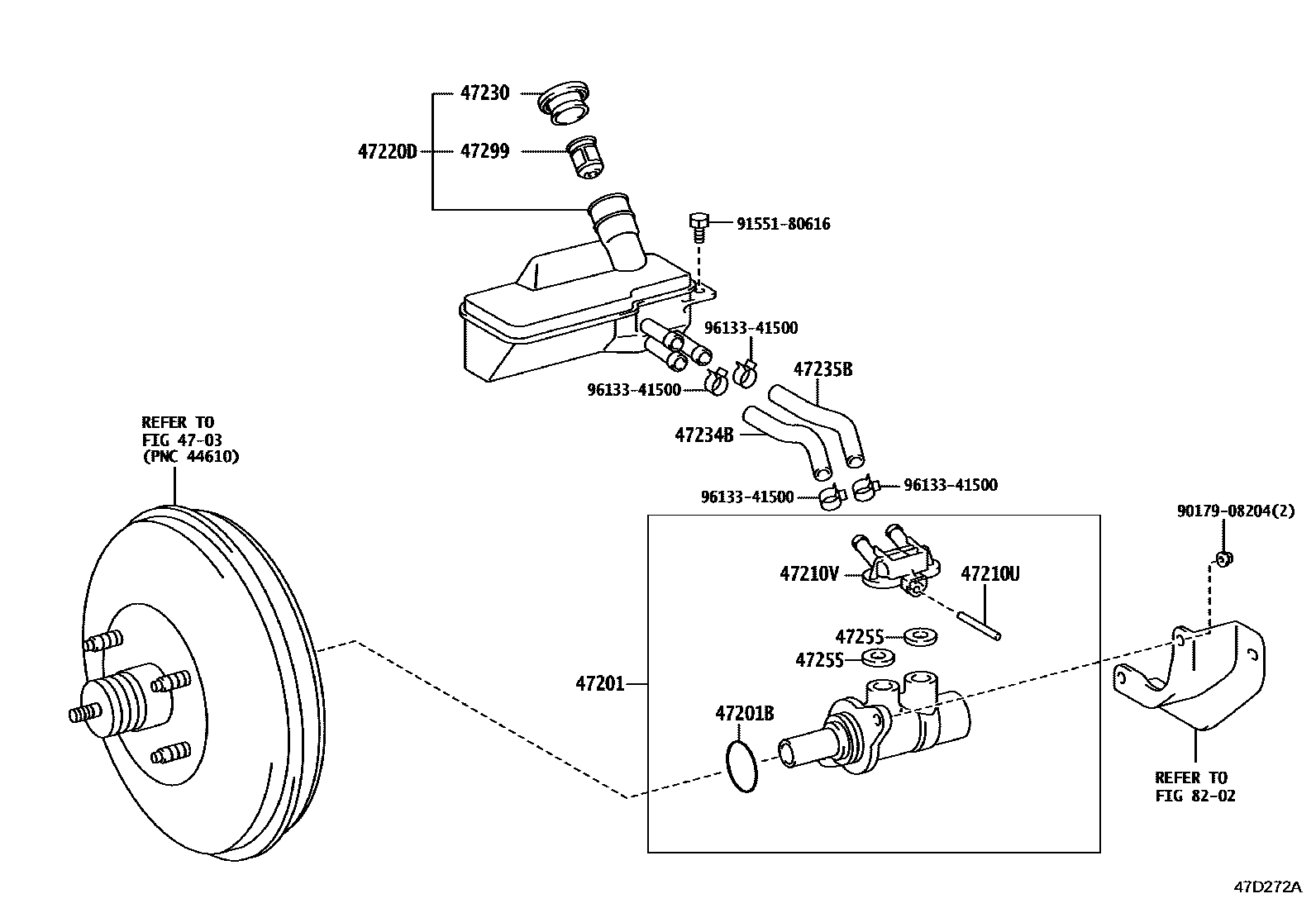

Toyota DYNA — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25300iGDY231..IV3¥21,200202108-202405

main47201-25300iGDY231..CBU¥21,200202108-202305

main47201-25300iLY230..RHD¥21,200202108-202503

main47201-25310iLY230..LHD202202-202503

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGDY231..CBU¥200202108-202305

main90015-AH002iGDY231..IV3¥200202108-202405

main90015-AH002iLY230¥200202108-202503

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGDY231..IV3¥130202108-202405

main90029-15803iGDY231..CBU¥130202108-202305

main90029-15803iLY230¥130202108-202503

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90015-AM007iGDY231..CBU¥400202108-202305

main90015-AM007iGDY231..IV3¥400202108-202405

main90015-AM007iLY230¥400202108-202503

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37120iGDY231..5F..CBU¥7,700202108-202305

main47220-37120iLY230..RHD¥7,700202108-202503

main47220-37120iGDY231..IV3¥7,700202108-202405

main47220-37160iGDY231..6FC¥7,700202108-202305

main47220-37190iLY230..LHD202202-202503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iGDY231..CBU¥440202108-202305

main47230-37020iGDY231..IV3¥440202108-202405

main47230-37020iLY230¥440202108-202503

47234BTUBE, RESERVOIR, NO.1

main47234-37180iGDY231..CBU¥430202108-202305

main47234-37180iGDY231..IV3¥430202108-202405

main47234-37180iLY230..RHD¥430202108-202503

main47234-37200iLY230..LHD202202-202503

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37170iGDY231..CBU¥430202108-202305

main47235-37170iGDY231..IV3¥430202108-202405

main47235-37170iLY230..RHD¥430202108-202503

main47235-37190iLY230..LHD202202-202503

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGDY231..CBU¥360202108-202305

sub90016-AT001¥360

main90029-48001iGDY231..IV3¥360202108-202405

sub90016-AT001¥360

main90029-48001iLY230¥360202108-202503

sub90016-AT001¥360

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iGDY231..CBU¥430202108-202305

main47299-28010iGDY231..IV3¥430202108-202405

main47299-28010iLY230¥430202108-202503

8202

9017908204

main90179-08204¥140

9155180616

main91551-80616¥60

9613341500

main96133-41500¥140

15 parts on this diagram · 2 diagrams in section
