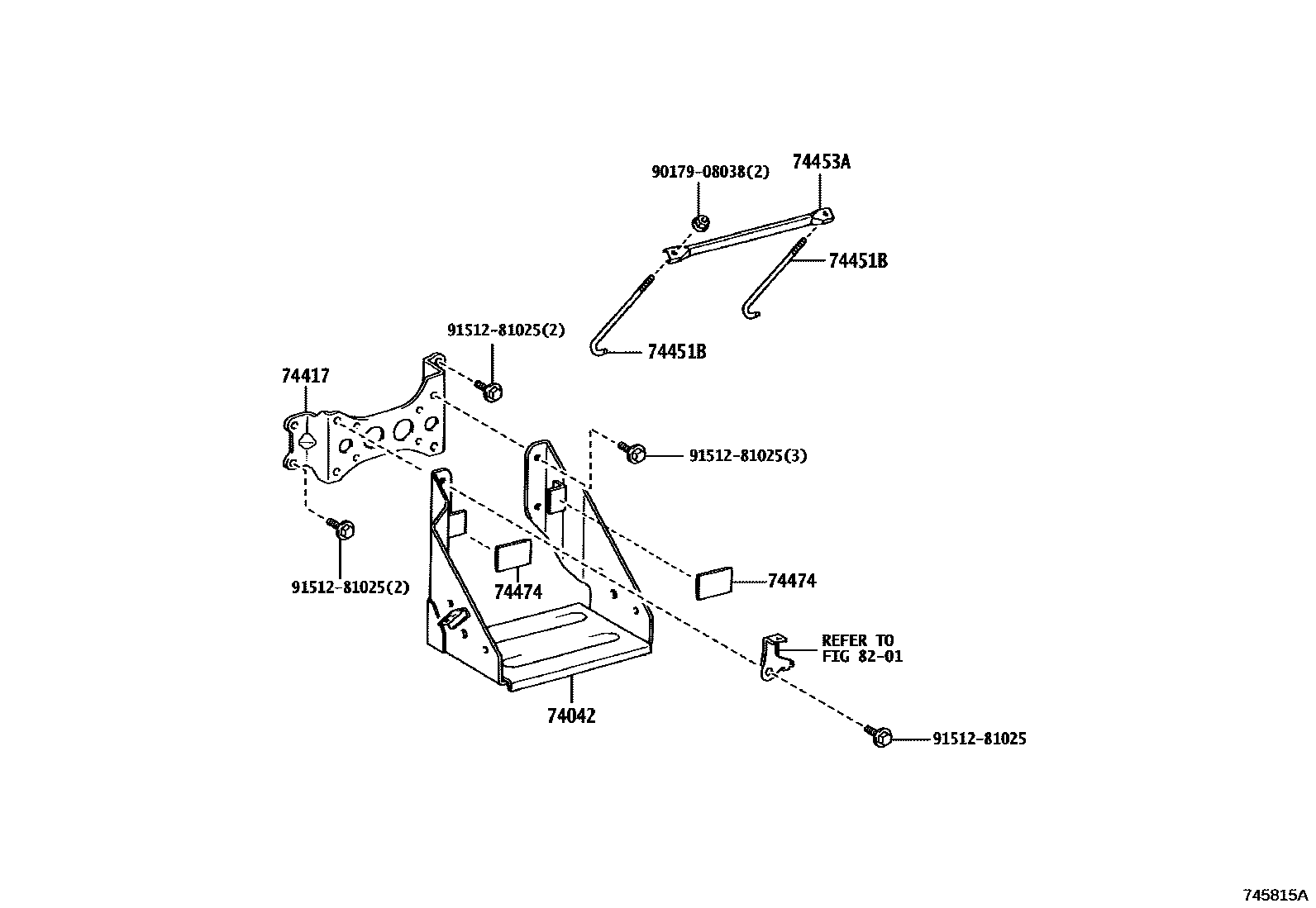

Toyota DYNA — BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-36020iGDY231..CBU¥7,500202108-202503

74417BRACKET, BATTERY CARRIER

main74417-25090iGDY231..CBU¥3,670202108-202503

74451BBOLT, BATTERY CLAMP

main74451-36070iGDY231..CBU¥250202108-202503

74453ABAR, BATTERY SET PLATE

main74453-25100iGDY231..CBU¥1,850202108-202503

74474PAD, BATTERY

main74475-36040iGDY231..CBU¥390202108-202503

8201

9017908038

main90179-08038¥130

9151281025

main91512-81025¥100

8 parts on this diagram · 1 diagram in section
