Toyota DYNA — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-37020-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

main74231-37020-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main74231-37020-B1iLY230202108-202503

GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-37020-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

main74231-37020-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main74231-37020-B1iLY230202108-202503

GRAY,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-37010iGDY231..CBU¥100202108-202305

POWER WINDOW-WITH(FRONT ONLY)

main74257-37010iGDY231..IV3¥100202108-202405

POWER WINDOW-WITH(FRONT ONLY)

main74257-37010iLY230¥100202108-202503

74310VISOR ASSY, RH

main74310-37A10-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main74310-37A10-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main74310-37A10-B0iLY230202108-202503

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-37451-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main74320-37451-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main74320-37481-B0iLY230202202-202503

GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B9iGDY231..CBU202108-202305

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

main74348-22020-B9iGDY231..IV3202108-202405

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

main74348-22020-B9iLY230202108-202503

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

74610AGRIP SUB-ASSY, ASSIST

main74611-48010-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

sub74611-48010¥1,780

main74611-48010-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

sub74611-48010¥1,780

main74611-48010-B0iLY230202108-202503

GRAY,TRIM1#

sub74611-48010¥1,780

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-37040-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main74610-37040-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main74610-37040-B0iLY230202108-202503

GRAY,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-37040-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main74610-37040-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main74610-37040-B0iLY230202108-202503

GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-37010-B0iGDY231..CBU202108-202305

GRAY,TRIM1#

main74617-37010-B0iGDY231..IV3202108-202405

GRAY,TRIM1#

main74617-37010-B0iLY230202108-202503

GRAY,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-37020-C0iGDY231..CBU202108-202305

BLACK,TRIM1#

main74630-37020-C0iGDY231..IV3202108-202405

BLACK,TRIM1#

main74630-37020-C0iLY230202108-202503

BLACK,TRIM1#

74631CHOOK, COAT

main74348-22020-B9iGDY231..CBU202108-202305

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

main74348-22020-B9iGDY231..IV3202108-202405

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

main74348-22020-B9iLY230202108-202503

MD.CHARCOAL,TRIM1#

sub74348-22020¥680

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-37010-C0iGDY231..CBU202108-202305

BLACK,TRIM1#

main74640-37010-C0iGDY231..IV3202108-202405

BLACK,TRIM1#

main74640-37010-C0iLY230202108-202503

BLACK,TRIM1#

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-37010-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

main74645-37010-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main74645-37010-B1iLY230202108-202503

GRAY,TRIM1#

74646COVER, DOOR ASSIST GRIP, LH

main74646-37010-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

main74646-37010-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main74646-37010-B1iLY230202108-202503

GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-95J04-B3iGDY231..CBU202108-202305

GRAY,TRIM1#

sub74811-95J04¥870

main74811-95J04-B3iGDY231..IV3202108-202405

GRAY,TRIM1#

sub74811-95J04¥870

main74811-95J04-B3iLY230202108-202503

GRAY,TRIM1#

sub74811-95J04¥870

9155180628

main91551-80628¥60

91651B0820

main91651-B0820¥160

9167380620

main91673-80620¥60

9353015020

main93530-15020¥120

9354054012

main93540-54012¥90

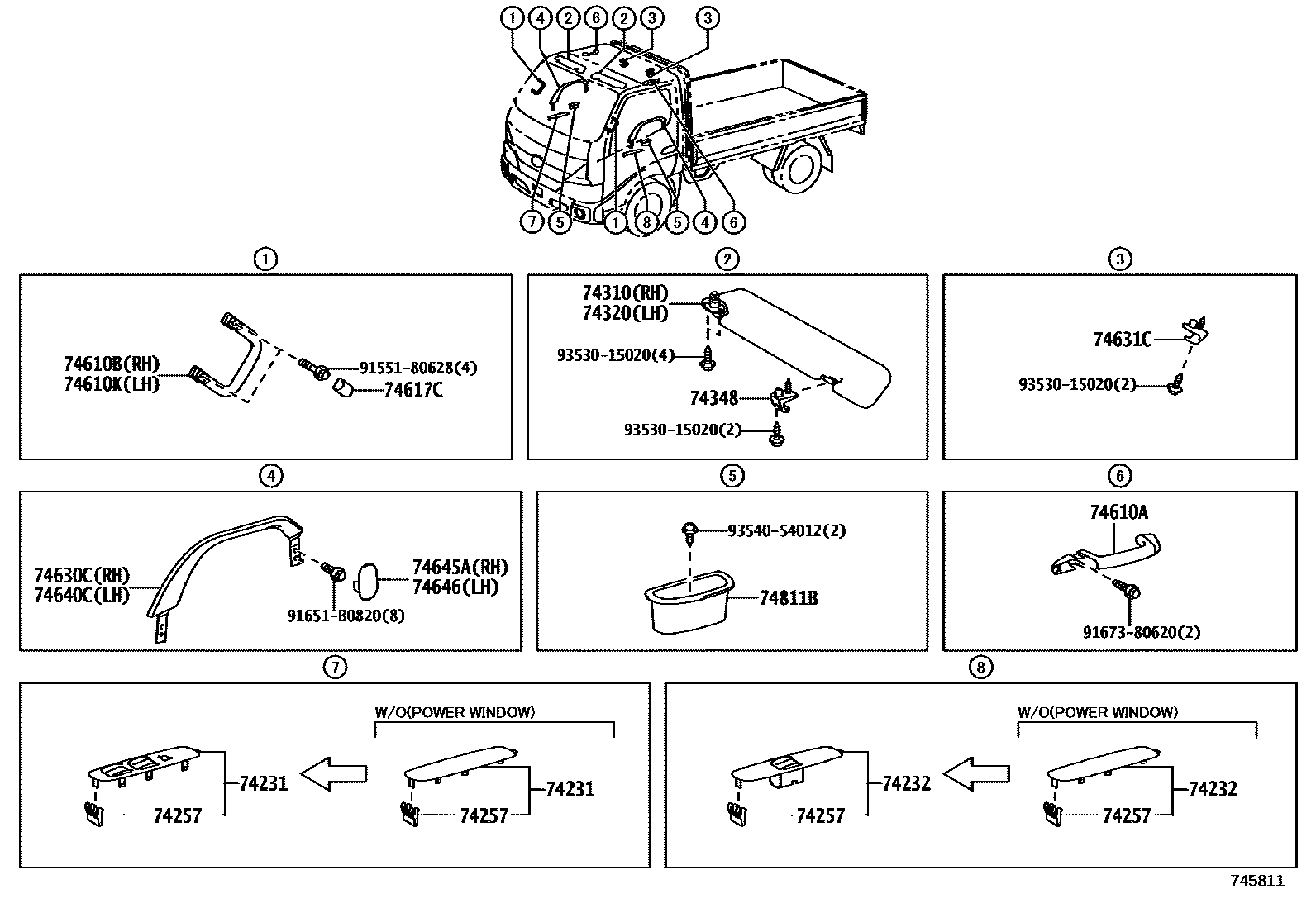

21 parts on this diagram · 1 diagram in section
