Toyota DYNA — VENTURI

0001 1 0002 1 0003 1 0004 1 0005 1

21927SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)

main21927-47020iH..HU30..GEN197708-198104

W/O EDIC

main21927-56020iB..BU2#,30¥640197708-197804

W/O EDIC

21928SUPPORT, THROTTLE WIRE

main21928-48020i2J..JU20197708-197903

main21928-48021i2J..JU20197903-197904

main21928-56050iB..BU20,30197708-198008

W/EDIC

main21928-56060iB..BU2#,30197804-198008

W/O EDIC

main21928-56070iB,2B,3B..BU2#,3#,40¥2,320198008-198411

W/EDIC

main21928-56080iB,2B,3B..BU2#,3#,40¥4,710198008-198302

W/O EDIC

main21928-56080iB,3B..BU2#,30,32,36..EUR,GEN,GHI¥4,710198302-198411

W/O EDIC

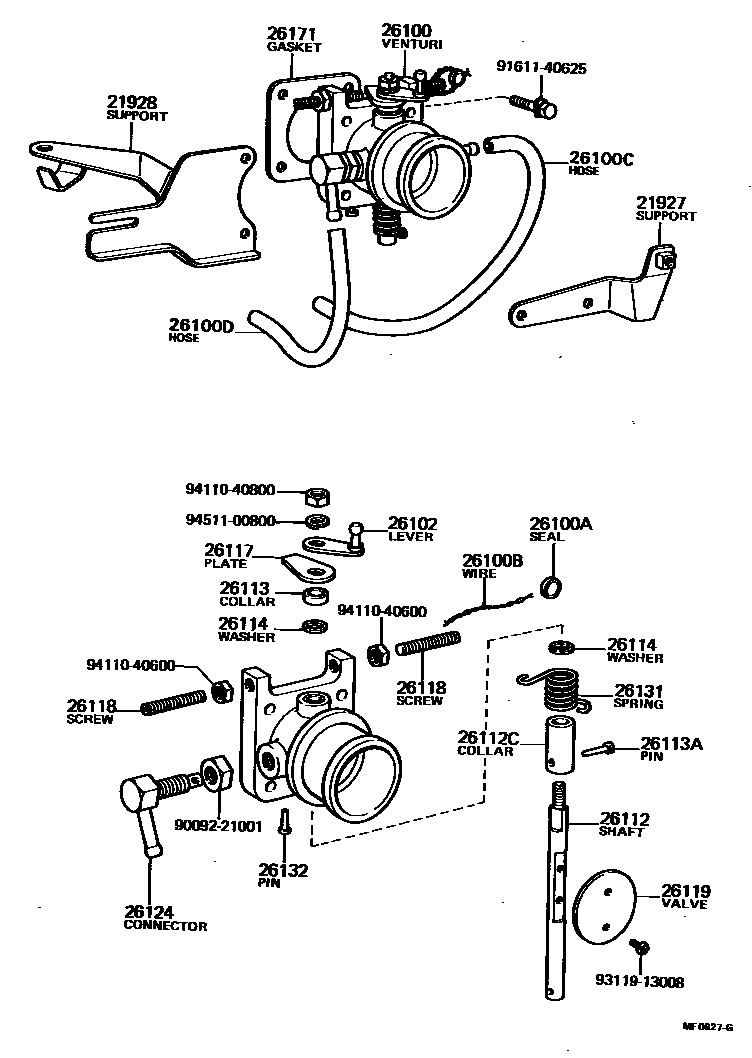

26100VENTURI ASSY

main26100-47050iH..HU30197708-198104

main26100-48020i2J..JU20197708-197903

main26100-48021i2J..JU20¥13,100197903-197904

main26100-56030iB..BU2#,30197708-198008

main26100-56070iB..BU2#,30;2B..BU31..CBU¥12,800198008-198204

main26100-56080iB..BU20,25,30¥13,200198204-198411

main26100-58010i3B..BU32¥13,200198104-198204

main26100-58050i2B,3B..BU23,31,32,36,40¥13,200198204-198408

main26100-68020i2H..HU40,50¥13,200198204-198408

26100ASEAL, LEAD

main22354-77050iH,2H..HU30,40,50197708-198411

26100BWIRE, SEAL

main22355-36010i2J..JU20197708-198411

main22355-76010i2H..HU40,50198204-198408

sub22355-36010

26100CHOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)

main90445-14082i2H..HU40,50¥730198204-198408

main90446-10331i2J..JU20¥600197708-197904

main90446-12215iH..HU30¥640197708-198104

main90447-12001iB..BU2#,30¥730197708-198008

main90447-12002iB,2B,3B..BU2#,3#,40¥610198008-198411

26100DHOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)

main90445-14081i2H..HU40,50¥410198204-198408

sub90445-14068¥1,080

main90446-10331i2J..JU20¥600197708-197904

main90446-12057iH..HU30¥640197708-198104

main90447-12002iB,2B,3B..BU2#,3#,40¥610197708-198411

26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING

main26102-47050iH..HU30197708-198104

main26102-48020i2J..JU20197708-197903

main26102-48021i2J..JU20197903-197904

main26102-56030iB..BU2#,30197708-198008

main26102-56070iB,2B,3B..BU2#,3#,40198008-198411

main26102-68021i2H..HU40,50198204-198408

26112SHAFT, VENTURI THROTTLE VALVE

main26112-47012iH..HU30197708-198104

main26112-56010i2J..JU20197708-197904

main26112-56030iB..BU2#,30;2B..BU31..CBU197708-198204

main26112-57020iB..BU20,25,30198204-198408

main26112-58010i3B..BU32198104-198204

main26112-58040i2B,3B..BU23,31,32,36,40198204-198408

main26112-68011i2H..HU40,50198204-198205

26112CCOLLAR, ADJUSTING

main26113-56010iB..BU2#,30197708-198008

sub26113-56011

26113COLLAR, THROTTLE VALVE SHAFT

main26113-47020iB..BU2#,30197708-198008

main26113-47020iH..HU30198008-198104

main26113-56010iB,2B,3B..BU2#,3#198008-198204

sub26113-56011

main26113-56080iB..BU20,25,30198204-198411

main26113-58040i2B,3B..BU23,31,32,36,40198204-198408

main26113-68012i2H..HU40,50198204-198408

NO.1

main26113-68013i2H..HU40,50198204-198408

NO.2

26113APIN, THROTTLE VALVE SHAFT

main26132-56011i2H..HU40,50197708-198411

26114WASHER, THROTTLE VALVE SHAFT ADJUSTING

main26114-76010i2J..JU20¥200197708-198411

T=0.1,T=0.1

main26115-76010iB,2B,3B..BU2#,3#,40¥200197708-198411

T=0.2,T=0.2

main26116-76010iB,2B,3B..BU2#,3#,40¥200197708-198411

T=0.5,T=0.5

26117PLATE, THROTTLE VALVE SHAFT STOP

main26117-47050iH..HU30197708-198104

main26117-56010i2J..JU20197708-197903

main26117-56010iB..BU2#,30197903-198008

main26117-68011i2H..HU40,50198204-198408

26118SCREW, STOP PLATE ADJUSTING

main26118-48014iB,2B,3B..BU2#,3#198008-198204

NO.1

sub22325-77020

main26118-48014iB..BU2#,30197708-198008

sub22325-77020

main26118-48014i2H..HU40,50198204-198408

sub22325-77020

main26118-48014iB,2B,3B..BU2#,3#,40198204-198411

NO.1 NO.2

sub22325-77020

main26118-76010iH..HU30¥240197708-198104

main26118-76010iB,2B,3B..BU2#,3#¥240198008-198204

NO.2

26119VALVE, VENTURI THROTTLE

main26119-47012i3B..BU32,36,40;2B,3B..BU23,31..IV3198104-198408

main26119-47012iH..HU30197708-198104

main26119-48010i2J..JU20197708-197904

main26119-56030iB..BU20,25,30;2B..BU31..CBU197708-198408

main26119-66011i2H..HU40,50198204-198205

26124CONNECTOR, VENTURI PIPE

main26124-47050iH..HU30197708-198104

main26124-48020i2J..JU20197708-197904

main26124-56010i2H..HU40,50198204-198408

main26124-56030iB,2B,3B..BU2#,3#197708-198201

main26124-56030iB,2B,3B..BU2#,3#,40198204-198411

main26124-56031iB,2B,3B..BU2#,3#198201-198204

26131SPRING, RETURN

main26131-48014i2J..JU20197708-197904

main26131-56010iB,2B,3B..BU2#,3#,40197708-198411

main26131-68010i2H..HU40,50198204-198408

NO.2

main26131-68011i2H..HU40,50198204-198408

NO.1

26132PIN

main26132-56010i2H..HU40,50197708-198411

26171GASKET, VENTURI

main26171-46010i2J..JU20¥360197708-197904

sub26171-46011¥390

main26171-47010iH..HU30¥260197708-198104

main26171-56010iB..BU2#,30¥310197708-198008

sub26171-56020¥310

main26171-56020iB,2B,3B..BU2#,3#,40¥310198008-198411

sub26171-56050¥140

main26171-68010i2H..HU40,50¥600198204-198408

sub26171-68020¥580

9009221001

main90092-21001

9161140625

main91611-40625¥160

9311913008

main93119-13008

9411040600

main94110-40600¥80

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

26 parts on this diagram · 5 diagrams in section
