Toyota DYNA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25062iRU20..ST198205-198408

main09102-25064iBU20..ST198205-198411

main09102-25065iBU20,30..T2198302-198408

main09102-36040iRU2#,30¥7,900197708-197904

sub09102-36150¥7,900

main09102-36050iBU2#,30,HU30,JU20197708-197904

main09102-36150iRU20..ST¥7,900198010-198205

sub09102-25062

main09102-36150iRU2#,30¥7,900197904-198010

sub09102-25062

main09102-36160iBU20..ST¥4,000197904-198205

sub09102-25064

main09102-36170iBU2#,30,HU30..WT¥4,600197904-198010

sub09102-36210

main09102-36200iRU2#,30..WT¥4,150198010-198205

sub09102-36252

main09102-36210iBU2#,3#,40,HU30,40,50..WT198010-198205

main09102-36250iBU20,30..T3..WT;BU23,25,31,32,36,40,HU40,50,WU40,50¥3,800198205-198411

main09102-36252iRU2#,30..WT198205-198408

09110JACK ASSY

main09110-36030iBU20,JU20,RU20..TW1,VSG,VSP¥7,700197708-197903

sub09110-36031

main09110-36031iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197903-198408

main09110-36041iBU20,JU20,RU20..T1,T3¥5,600197708-198411

sub09111-36042

sub09113-37020¥730

main09110-36051iBU30..T3;BU23,25,31,32,HU30,RU25,30197708-198401

sub09110-36090¥7,200

main09110-36080iBU20,30..T2198302-198408

main09110-36090iBU30..T3;BU23,25,31,32,RU25,30¥7,200198401-198411

sub09111-36110

sub09113-36100¥750

main09110-36090iBU36¥7,200198302-198408

sub09111-36110

sub09113-36100¥750

main09110-36131iBU40,HU40,50,WU40,50¥10,900198204-198408

sub09111-36131

sub09113-37050¥1,540

09113HANDLE, JACK

main09113-25040iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF¥1,200197903-198408

main09113-36020iBU20,JU20,RU20..TW1,VSG,VSP¥1,450197708-197903

sub09113-25040¥1,200

main09113-36060iBU20,JU20,RU20..T1,T3¥570197708-198411

sub09113-37020¥730

main09113-36070iBU30..T3;BU23,25,31,32,HU30,RU25,30197708-198401

sub09113-36100¥750

main09113-36090iBU20,30..T2198302-198408

main09113-36100iBU30..T3;BU23,25,31,32,RU25,30¥750198401-198411

main09113-36100iBU36¥750198302-198408

main09113-36130iBU40,HU40,50,WU40,50¥1,100198204-198408

sub09113-37050¥1,540

09120BAG, TOOL

main09120-36011iBU2#,30,HU30,JU20,RU2#,30¥1,100197708-198010

sub09120-36020¥970

main09120-36011iBU20,RU20..ST¥1,100198010-198203

sub09120-36020¥970

main09120-36020iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP¥970198203-198411

main09120-36030iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT¥900198010-198411

09130PLIERS

main09130-00010iBU2#,3#,40,HU30,40,50,RU2#,30¥630197904-198205

sub09130-00012¥400

main99913-11500iBU2#,3#,40,HU40,50,RU2#,30,WU40,50¥400198205-198411

main99913-22000iBU2#,30,HU30,JU20,RU2#,30¥870197708-197904

sub09029-20200

09135DRIVER, SCREW

main99915-10700iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥460197708-198411

09140SPANNER SET

main09140-22010iBU2#,30,HU30,JU20,RU2#,30¥740197708-197904

sub09140-00070¥600

main09140-27010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

09141SPANNER

main09141-00030iBU2#,30,HU30,JU20,RU2#,30¥470197708-197904

10X12

sub09141-00120¥240

main09141-00050iBU2#,30,HU30,JU20,RU2#,30¥690197708-197904

14X17

sub09141-00130¥320

main99914-11012iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥360197904-198411

10 X 12,10X12

main99914-11417iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥460197904-198411

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥2,100197904-198411

sub99911-11200¥2,100

main99911-10250iBU2#,30,HU30,JU20,RU2#,30¥1,690197708-197904

sub99911-20250¥1,690

09150WRENCH, HUB NUT BOX

main09150-25020iBU2#,30,HU30,RU2#,30¥3,800197904-198008

main09150-25020iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP¥3,800198008-198411

main09150-36011iBU2#,30,HU30,JU20,RU2#,30¥4,000197708-197904

sub09150-25020¥3,800

main09150-55010iBU40,HU40,50,WU40,50¥4,700198204-198408

main09150-55020iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥5,700198008-198411

09155WRENCH, SPARK PLUG

main09155-36010iRU2#,30¥450197708-197904

sub09155-44010¥240

main09155-44030iRU2#,30¥400197904-198408

sub09155-44020¥400

09183WRENCH, WHEEL CAP

main09183-00020iBU20..ST¥240197904-198411

sub09183-00010¥240

09187HANDLE, SPARE WHEEL CARRIER

main09187-36060iBU20,3#,HU30,JU20,RU20,30..T1,T3¥500197708-198205

sub09187-36070¥500

main09187-36070iBU40,HU40,50¥500198204-198205

main09187-36070iBU20,23,30,31,32,40,HU40,50,RU20,30,WU40,50¥500198205-198411

09188WRENCH, VALVE CAP

main09188-00030iBU20,30..T2¥390198302-198408

sub09052-1C200¥2,010

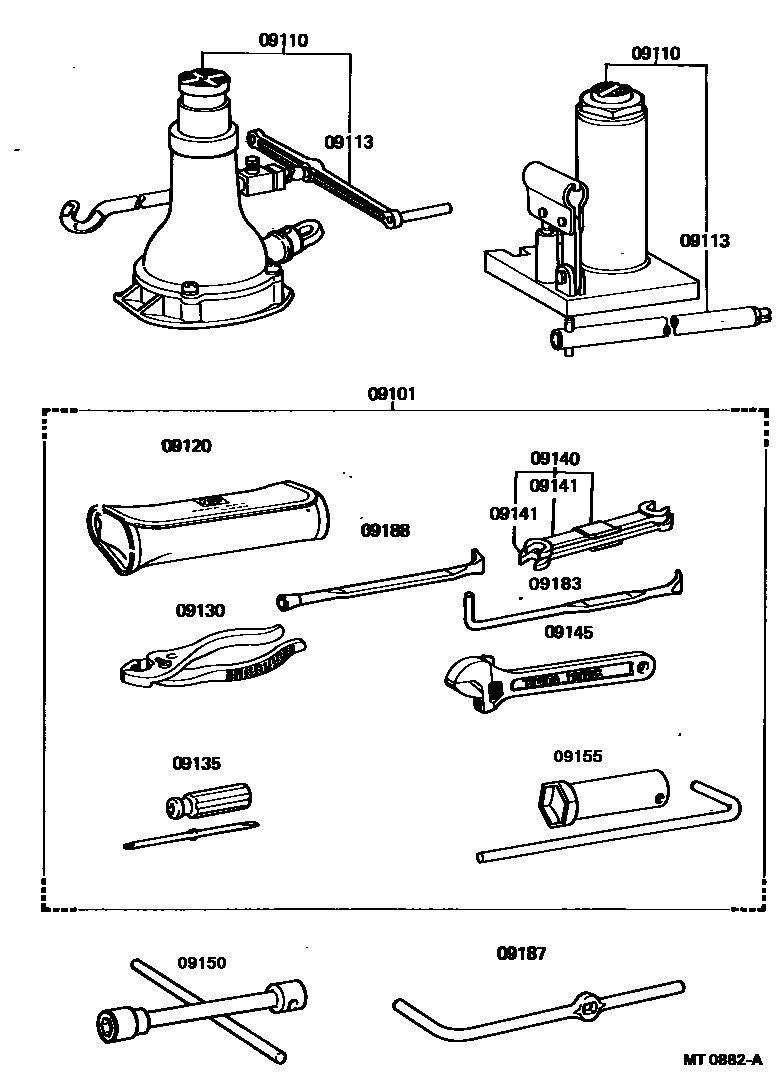

14 parts on this diagram · 1 diagram in section
