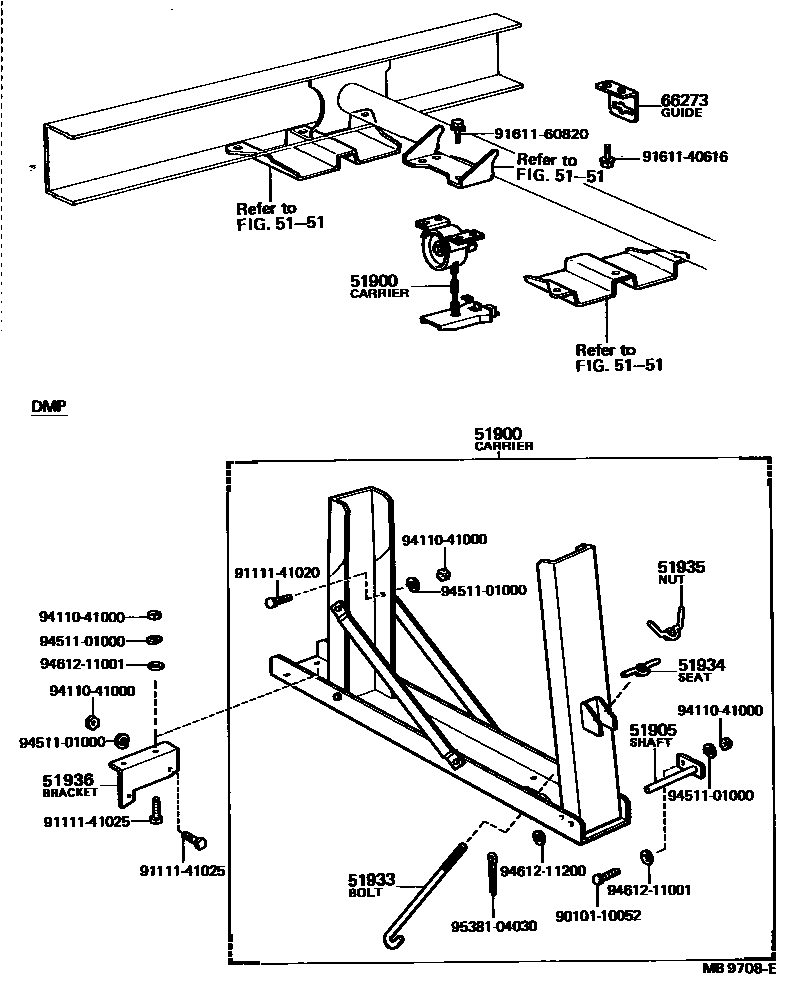

Toyota DYNA — SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0004 1

5151

51900CARRIER ASSY, SPARE WHEEL

main51900-36030iBU20,30,HU30,JU20,RU20,30¥6,700197708-198204

sub51900-36071¥6,800

main51900-36040iBU20,3#,HU30,RU20,30..WT¥6,800198008-198204

sub51900-36061¥7,100

main51900-36050iBU40,HU40,50,WU40,50¥8,800198204-198408

main51900-36060iBU20,3#,RU20,30..T3..WT¥6,800198204-198305

sub51900-36061¥7,100

main51900-36061iBU20,3#,RU20,30..T3..WT¥7,100198305-198411

sub51900-36062¥6,700

main51900-36070iBU20,RU20..ST¥7,600198204-198305

sub51900-36071¥6,800

main51900-36071iBU20,30..T2¥6,800198305-198411

sub51900-36072¥6,800

main51930-93102iBU25,RU25197803-198408

51905SHAFT SUB-ASSY, SPARE WHEEL CARRIER HANGER

main51939-93100iBU25,RU25197803-198408

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93102iBU25,RU25197803-198408

main51935-93102iRU25198304-198408

SAUDI ARABIA SPEC

51934SEAT, EYE BOLT CLAMP

main51934-93102iRU25198304-198408

SAUDI ARABIA SPEC

main51934-93110iBU25,RU25197803-198408

51935NUT, SPARE WHEEL CARRIER EYE

main51935-93110iBU25,RU25197803-198408

51936BRACKET, SPARE WHEEL CARRIER

main51937-93110iBU25,RU25197803-198408

RH

main51938-93110iBU25,RU25197803-198408

LH

66273GUIDE, SPARE TIRE CARRIER

main51923-36010iBU30..T2¥1,160198302-198408

main66273-95400iBU20..T1;RU20..(T1,TW1)..5H..GEN;RU20..(T1,TW1)..(4F,4H,5F)¥630197708-198411

9010110052

main90101-10052

9111141020

main91111-41020¥180

9111141025

main91111-41025¥210

9161140616

main91611-40616¥220

9161160820

main91611-60820¥200

9411041000

main94110-41000¥160

9451101000

main94511-01000¥110

9461211001

main94612-11001¥60

9461211200

main94612-11200¥100

9538104030

main95381-04030¥50

18 parts on this diagram · 4 diagrams in section
