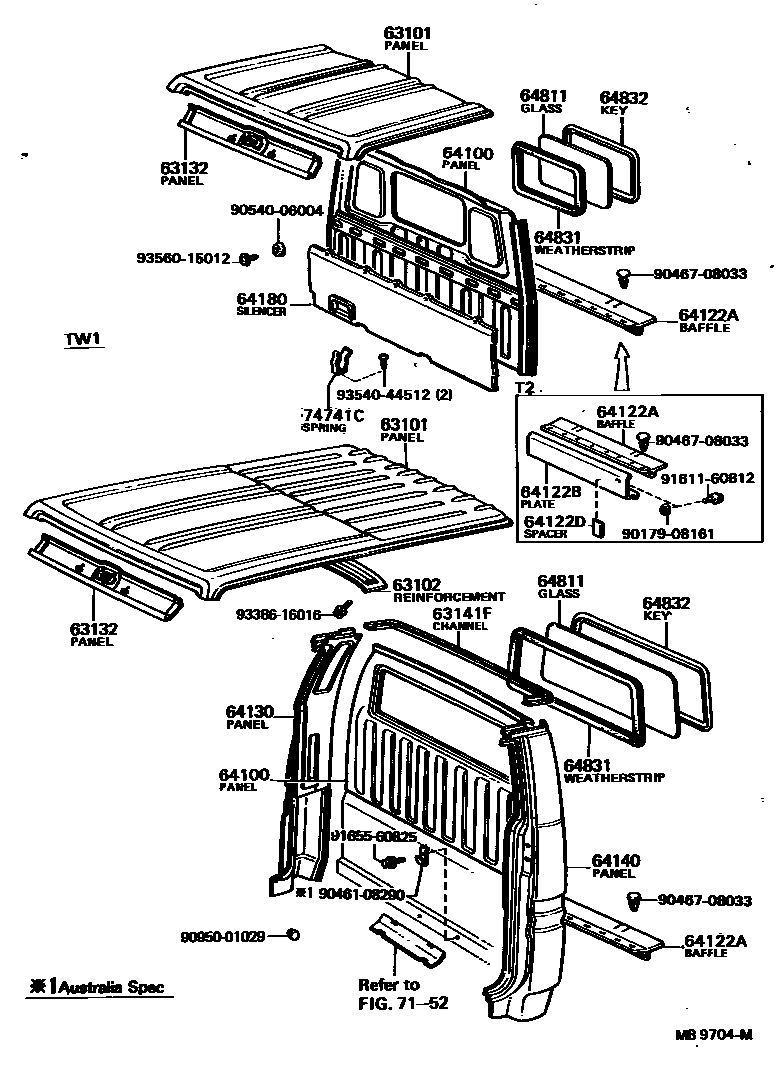

Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63101PANEL SUB-ASSY, ROOF

main63111-95406iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,JU20,RU25..DMP,TR¥31,800197708-198411

main63111-95407iBU32,HU30,RU20,30..TW1¥49,100197708-198408

main63111-95408iBU36,40,HU40,50,WU40,50¥41,400198204-198408

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-92605iBU20,RU20..SRF197808-198408

main63102-95400iBU32,HU30,RU20,30..TW1197708-198408

main63301-92106iBU20,JU20,RU20..HRF¥40,100197708-198204

63132PANEL, WINDSHIELD HEADER, INNER

main63103-95409iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

main63103-95410iBU36,40,HU40,50,WU40,50198204-198408

W/SUN VISOR=ASSISTANT

main63132-95411iBU36,40,WU40,50..LHD¥6,500197708-198408

sub63132-95412¥7,900

sub90950-06047¥260

main63132-95411iBU2#,30,31,32,HU30,RU2#,30¥6,500198008-198411

W/SUN VISOR=ASSISTANT

sub63132-95412¥7,900

sub90950-06047¥260

main63132-95413iBU20,RU20..LHD..SRF;BU2#,30,31,32,HU30,JU20,RU2#,30..LHD..(DMP,TR)¥6,500197708-198408

W/O SUN VISOR=ASSISTANT

sub63132-95412¥7,900

sub90950-06047¥260

63141FCHANNEL, ROOF DRIP, REAR

main63141-95401iBU32,HU30,RU20,30..TW1..(ARL,GEN)¥4,100198008-198408

64100PANEL ASSY, BACK, OUTER

main64100-95425iBU20,30,32,HU30,RU20,30..RHD..(T1,T2,T3)..(CBU,IV3)198008-198411

main64100-95426iRU20,30..LHD..(T1,T3);BU2#,30,31,32,HU30,RU25..LHD..(DMP,TR)198008-198408

main64100-95429iBU36198302-198408

main64100-95430iBU40,HU40,50¥127,000198204-198206

sub64100-95431

main64100-95431iBU36,40,HU40,50,WU40,50198206-198408

W/SCHNOKEL

main64101-95402iBU32,HU30,RU20,30..TW1..(ARL,GEN)¥33,400198008-198408

64122ABAFFLE, DUST REAR BODY

main64122-95402iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,JU20,RU25..DMP,TR¥2,210197708-198411

main64122-95403iBU32,HU30,RU20,30..TW1197810-198408

main64122-95404iBU36,40,HU40,50,WU40,50198204-198408

64122BPLATE, BAFFLE DUST REAR BODY

main64127-95402iBU20,30..T2¥4,550198302-198408

64122DSPACER, BAFFLE DUST REAR BODY PLATE

main53817-95A00iBU20,30..T2¥300198302-198408

64130PANEL ASSY, BACK CORNER, RH

main64130-95400iRU20,30..TW1..GEN¥18,000197708-198408

main64130-95401iBU32,HU30,RU20,30..TW1..ARL197708-198408

64140PANEL ASSY, BACK CORNER, LH

main64140-95408iRU20,30..TW1..GEN¥18,000197708-198408

main64140-95409iBU32,HU30,RU20,30..TW1..ARL197708-198408

64180SILENCER ASSY, BACK PANEL

main64180-95407iBU36,40,HU40,50,WU40,50198302-198408

main64180-95408iBU23,25,30,31,32,RU25..GEN,GHI;BU20,RU20,30..(T1,T2,T3)..(ARL,GEN)198302-198411

64811GLASS, BACK WINDOW

main64811-95404iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,JU20,RU25..DMP,TR¥3,560197708-198411

*TEM,T=4.0

main64811-95405iBU32,HU30,RU20,30..TW1¥6,800197708-198408

*TEM,T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,JU20,RU25..DMP,TR¥1,940197708-198411

main64831-95016iBU36,40,HU40,50,WU40,50¥1,960197708-198408

sub64831-37050¥4,930

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,JU20,RU25..DMP,TR¥1,080197708-198411

sub64832-95013¥1,030

main64832-95013iBU32,HU30,RU20,30..TW1¥1,030197708-198408

sub64832-37040¥710

7152

74741CSPRING, STARTING HANDLE SUPPORT

main74741-95406iBU36,40,HU40,50,WU40¥310198204-198408

9017908161

main90179-08161¥300

9046108290

main90461-08290

9046708033

main90467-08033¥50

9054006004

main90540-06004¥300

9095001029

main90950-01029¥280

9161160812

main91611-60812¥140

9165560825

main91655-60825¥170

9338616016

main93386-16016¥80

9354044512

main93540-44512¥120

9356015012

main93560-15012¥70

26 parts on this diagram · 3 diagrams in section
