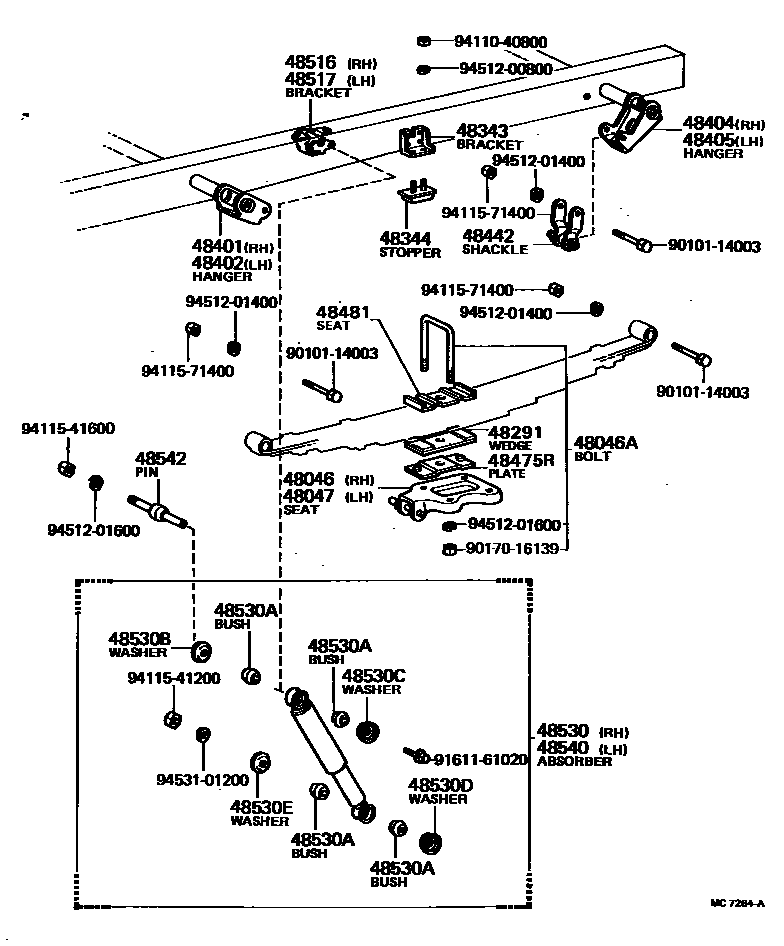

Toyota DYNA — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0017 1 0018 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU36..LHD¥9,100198402-198408

*AXC=Q194

main42152-36030iBU40,HU40,50,WU40,50¥9,100198204-198408

main48046-36090iBU20,JU20,RU20..ST¥3,520197708-198411

main48046-36120iBU20..TS..WT¥3,370197708-198411

sub48046-36121¥3,380

main48046-36140iBU20..TB¥4,950198302-198408

48046ABOLT, U(FOR REAR SPRING)

main90118-16060iBU20,RU20..HRF,SRF¥1,830197907-198408

L=205,5-LEAF SPRING

sub90118-16219¥3,470

main90118-16060iBU20,30,RU20,30..WT..EUR¥1,830197911-198008

L=205,W/5-LEAF SPRING

sub90118-16219¥3,470

main90118-16063iBU20,RU20,30..EUR¥1,900198008-198408

sub90118-16221¥3,480

main90118-16065iBU30,RU30¥2,100197711-198411

L=255,W/DISTANCE PLATE,L=255

sub90118-16226¥3,480

main90118-16065iBU30,RU30¥2,100197708-198408

L=255,L=255

sub90118-16226¥3,480

main90118-16066iRU30..GEN¥1,970198008-198408

L=285,W/13-LEAF & PLATE,L=285

sub90118-16235¥4,120

main90118-16066iBU30,HU30,RU30..TB..GEN¥1,970197904-198008

L=285,W/13 OR 14-LEAF SPRING,L=285

sub90118-16235¥4,120

main90118-16066iBU30,RU30..GEN¥1,970198008-198104

L=285,W/14-LEAF SPRING

sub90118-16235¥4,120

main90118-16066iBU25,RU25¥1,970197803-198411

L=285,W/DISTANCE PLATE,L=285

sub90118-16235¥4,120

main90118-16066iRU25¥1,970198304-198408

L=285,S.ARABIA SPEC,L=285

sub90118-16235¥4,120

main90118-16105iBU20,JU20,RU20..V¥3,580197708-198008

L=240,W/CASTER WEDGE,L=240

sub90118-16230¥3,240

main90118-16119iBU20,RU20..TS..WT..GEN¥1,980197910-198411

L=275,W/12-LEAF & PLATE,L=275

sub90118-16228¥3,170

main90118-16119iBU32..ARL;BU31,36,HU30¥1,980197710-198408

L=275,W/DISTANCE PLATE,L=275

sub90118-16228¥3,170

main90118-16119iBU25,RU25¥1,980197803-198411

L=275,L=275

sub90118-16228¥3,170

main90118-16119iBU32..GEN¥1,980197904-198408

L=275,W/13-LEAF SPRING,L=275

sub90118-16228¥3,170

main90118-16154iBU20,RU20..(TR,V)..ST..(ARL,GEN)¥2,620198008-198411

L=225,7-LEAF SPRING

sub90117-16007¥2,550

main90118-16154iBU20,JU20,RU20..ST¥2,620197708-198008

L=225,L=225

sub90117-16007¥2,550

main90118-16156iBU20..TB¥2,980198302-198408

L=220

sub90118-16222¥3,250

main90118-16157iBU20,RU20..TS..WT..GEN¥1,950197910-198411

L=265,W/12-LEAF SPRING,L=265

sub90118-16227¥2,740

main90118-16157iBU32..ARL;BU31,36,HU30¥1,950197708-198408

L=265,L=265

sub90118-16227¥2,740

main90118-16157iBU23¥1,950198312-198408

L=265,W/DISTANCE PLATE,L=285

sub90118-16227¥2,740

main90118-16164iBU30..EUR¥3,300197711-198411

L=245,L=245

sub90118-16225¥3,370

main90118-18199iBU40,HU40,50,WU40,50¥5,500198204-198408

L=330

sub90118-18211¥4,920

main90118-18209iWU40..RHD..IV3¥9,700198304-198408

THAILAND SPEC

sub90118-18212¥7,900

main90118-18210iBU36..LHD¥4,050198402-198408

*AXC=Q194

sub90117-18004¥3,700

sub90170-18158¥470

sub94512-01800¥170

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU40,HU40,50,WU40,50¥9,100198204-198408

main48047-36090iBU20,JU20,RU20..ST¥3,610197708-198411

main48047-36120iBU23,25,3#,HU30,RU2#,30..WT¥3,370197708-198411

sub48047-36121¥3,380

main48047-36140iBU20..TB¥5,400197708-198408

48291WEDGE, CASTER(FOR REAR LEAF SPRING)

main48191-36060iBU20,JU20,RU20..V197708-198008

T=11

main48191-36070iBU20,JU20,RU20..V197708-198008

T=8.5

48343BRACKET, REAR AXLE CUSHION

main48343-36010iBU20,JU20,RU20..ST197708-198411

48344STOPPER, BUMPER, REAR

main48344-36040iBU20,JU20,RU20..ST¥2,100197708-198411

main48344-36050iBU32..GEN¥3,140197708-198411

main48344-36090iBU30..T2¥3,500198302-198408

main48344-36100iBU32..ARL;BU31,36,HU30¥3,180197708-198408

main48344-36130iBU40,HU40,50,WU40,50¥7,000198204-198408

sub48344-36190¥6,300

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-36060iBU20,JU20,RU20..ST197708-198411

main48414-36090iBU20,23,30,31,32,HU30,RU20,30..WT¥6,200197708-198411

main48414-36120iBU25,RU25197803-198408

main48414-36150iBU40,HU40,50,WU40,50¥20,300198204-198408

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-36060iBU20,JU20,RU20..ST197708-198411

main48414-36090iBU20,23,30,31,32,HU30,RU20,30..WT¥6,200197708-198411

main48414-36150iBU40,HU40,50,WU40,50¥20,300198204-198408

main48415-36040iBU25,RU25197803-198408

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-36080iBU20,JU20,RU20..ST¥3,620197708-198411

main48416-36110iBU20,23,30,31,32,HU30,RU20,30..WT¥8,000197708-198411

main48416-36140iBU25,RU25197803-198408

main48416-36160iBU40,HU40,50,WU40,50¥21,500198204-198408

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-36080iBU20,JU20,RU20..ST¥3,620197708-198411

main48416-36110iBU20,23,30,31,32,HU30,RU20,30..WT¥8,000197708-198411

main48416-36140iBU25,RU25197803-198408

main48416-36160iBU40,HU40,50,WU40,50¥21,500198204-198408

48442SHACKLE, SPRING, NO.2

main48042-36020iBU2#,30,HU30,JU20,RU2#,30¥5,400197708-197901

sub48042-36021¥6,000

main48042-36021iBU2#,3#,HU30,JU20,RU2#,30¥6,000197901-198411

main48042-37901iBU40,HU40,50,WU40,50¥4,790198204-198408

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU23,25,3#,HU30,JU20,RU2#,30¥1,550197710-198411

48481SEAT, REAR SPRING, UPPER

main48481-36020iBU25,RU25¥2,660197803-198408

main48481-36040iBU20..BUS;BU20..T1,T3,VSG,VSP¥670197708-198411

main48481-37011iBU36..LHD¥2,630198402-198408

*AXC=Q194

main48481-37011iBU40,HU40,50,WU40,50¥2,630198204-198408

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36030iBU25,RU25197803-198408

main48516-36020iBU20,JU20,RU20..ST¥1,820197708-198411

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-36030iBU25,RU25197803-198408

main48516-36020iBU20,JU20,RU20..ST¥1,820197708-198411

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39275iBU2#,30,HU30,RU2#,30..WT¥7,400197708-197910

sub48531-39276¥7,000

main48531-39276iBU23,25,3#,HU30,RU2#,30..WT¥7,000197910-198411

MARK 48531-36080

sub48531-39277¥7,000

main48531-39285iBU20,JU20,RU20..ST¥6,800197708-197910

sub48531-39455¥7,200

main48531-39445iBU20..TB¥7,000198302-198408

MARK 48531-36070

sub48531-39446¥7,000

main48531-39455iBU20,RU20..ST¥7,200197910-198411

MARK 48531-36080

sub48531-39277¥7,000

main48531-39515iBU40,HU40,50,WU40,50¥7,000198204-198408

MARK 48531-36120

sub48531-39516¥7,000

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥260197708-198411

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU20..TS..WT¥110197708-198411

main90948-03004iBU20,JU20,RU20..ST¥200197708-198411

main90948-03007iBU20..TB¥110198302-198408

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..WT¥200197708-198411

main90948-03007iBU20,JU20,RU20..ST¥110197708-198411

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU20..BUS;BU20..T1,T3,VSG,VSP¥110197708-198411

main90948-03004iBU40,HU40,50,WU40,50¥200198204-198408

main90948-03004iBU36..LHD¥200198402-198408

*AXC=Q194

main90948-03007iBU20..TB¥110198302-198408

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU2#,3#,HU30,JU20,RU2#,30¥200197708-198411

main90948-03007iBU40,HU40,50,WU40,50¥110198204-198408

main90948-03007iBU36..LHD¥110198402-198408

*AXC=Q194

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39275iBU2#,30,HU30,RU2#,30..WT¥7,400197708-197910

sub48531-39276¥7,000

main48531-39276iBU20..TS..WT¥7,000197910-198411

MARK 48531-36080

sub48531-39277¥7,000

main48531-39285iBU20,JU20,RU20..ST¥6,800197708-197910

sub48531-39455¥7,200

main48531-39445iBU20..TB¥7,000198302-198408

MARK 48531-36070

sub48531-39446¥7,000

main48531-39455iBU20,RU20..ST¥7,200197910-198411

MARK 48531-36080

sub48531-39277¥7,000

main48531-39515iBU40,HU40,50,WU40,50¥7,000198204-198408

MARK 48531-36120

sub48531-39516¥7,000

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020iBU20,JU20,RU20..ST¥2,110197708-198411

sub48542-37030

main48542-36040iBU20..TB198302-198408

9010114003

main90101-14003¥710

9017016139

main90170-16139¥300

9161161020

main91611-61020¥240

9411040800

main94110-40800¥120

9411541200

main94115-41200¥300

9411541600

main94115-41600¥210

9411571400

main94115-71400¥160

9451200800

main94512-00800¥80

9451201400

main94512-01400¥100

9451201600

main94512-01600¥200

9453101200

main94531-01200¥80

34 parts on this diagram · 14 diagrams in section
