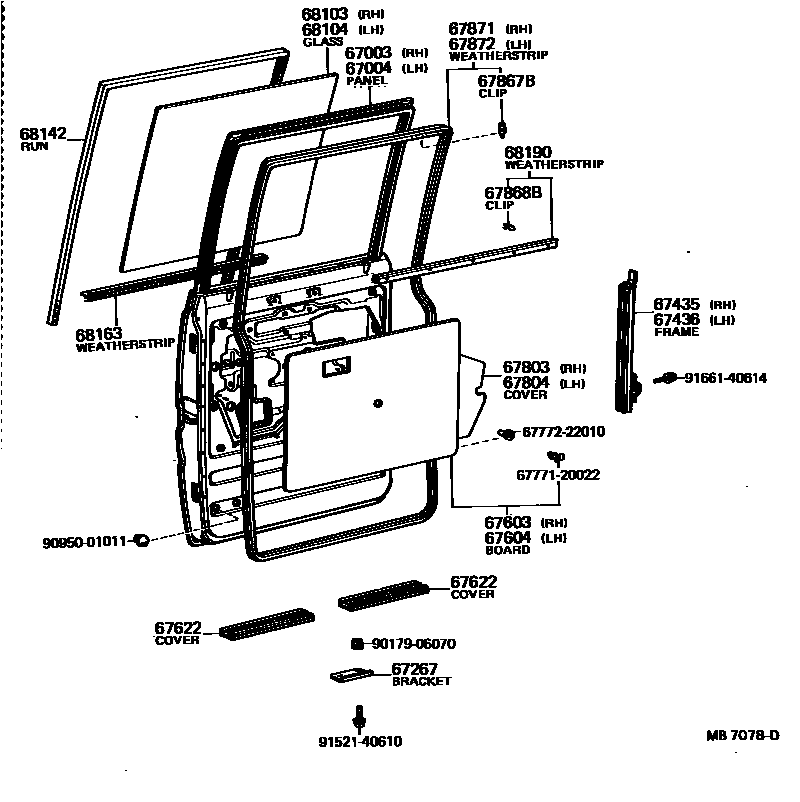

Toyota DYNA — REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-95400iBU32,HU30,RU20,30..TW1197708-198408

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-95400iBU32,HU30,RU20,30..TW1197708-198408

67267BRACKET, DOOR INSIDE PANEL, LOWER

main67311-95A00iBU32,HU30,RU20,30..TW1¥470197708-198408

67435FRAME, REAR DOOR WINDOW LOWER, RH

main67403-95A00iBU32,HU30,RU20,30..TW1¥870197708-198408

67436FRAME, REAR DOOR WINDOW, LOWER LH

main67404-95A00iBU32,HU30,RU20,30..TW1¥870197708-198408

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-95400iHU30,RU20,30..TW1¥3,320197708-198008

sub67630-95401¥3,330

main67630-95401iBU32,HU30,RU20,30..TW1¥3,330198008-198204

sub67630-37010

main67630-95402iBU32,RU20,30..TW1¥3,480198204-198408

sub67630-37020

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-95400iHU30,RU20,30..TW1¥3,320197708-198008

sub67640-95401

main67640-95401iBU32,HU30,RU20,30..TW1198008-198204

main67640-95402iBU32,RU20,30..TW1¥3,480198204-198408

sub67640-37010

67622COVER, REAR DOOR INSIDE PANEL LOWER HOLE

main67835-95A00iBU32,HU30,RU20,30..TW1¥660197708-198408

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67832-95A00iBU32,HU30,RU20,30..TW1¥660197708-198408

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67832-95A00iBU32,HU30,RU20,30..TW1¥660197708-198408

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-95401iBU32,HU30,RU20,30..TW1¥210197708-198408

WHITE

main67868-30040iBU32,RU20,30..TW1¥110198106-198408

NATURAL

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main90467-08071iBU32,HU30,RU20,30..TW1¥170197708-198408

67871WEATHERSTRIP, REAR DOOR, RH

main67863-95402iBU32,HU30,RU20,30..TW1¥5,700197708-198408

67872WEATHERSTRIP, REAR DOOR, LH

main67864-95402iBU32,HU30,RU20,30..TW1¥5,700197708-198408

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-95400iBU32,HU30,RU20,30..TW1¥7,200197708-198408

*TEM,T=4.0,*TEM,T=4.0

sub68113-95401¥8,000

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-95400iBU32,HU30,RU20,30..TW1¥7,200197708-198408

*TEM,T=4.0,*TEM,T=4.0

sub68113-95401¥8,000

68142RUN, REAR DOOR GLASS

main68142-95A00iBU32,HU30,RU20,30..TW1¥2,710197708-198408

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-95400iBU32,HU30,RU20,30..TW1¥2,390197708-198408

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-95400iBU32,HU30,RU20,30..TW1¥1,780197708-198408

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9017906070

main90179-06070¥180

9095001011

main90950-01011¥170

9152140610

main91521-40610¥110

9166140614

main91661-40614¥120

25 parts on this diagram · 3 diagrams in section
