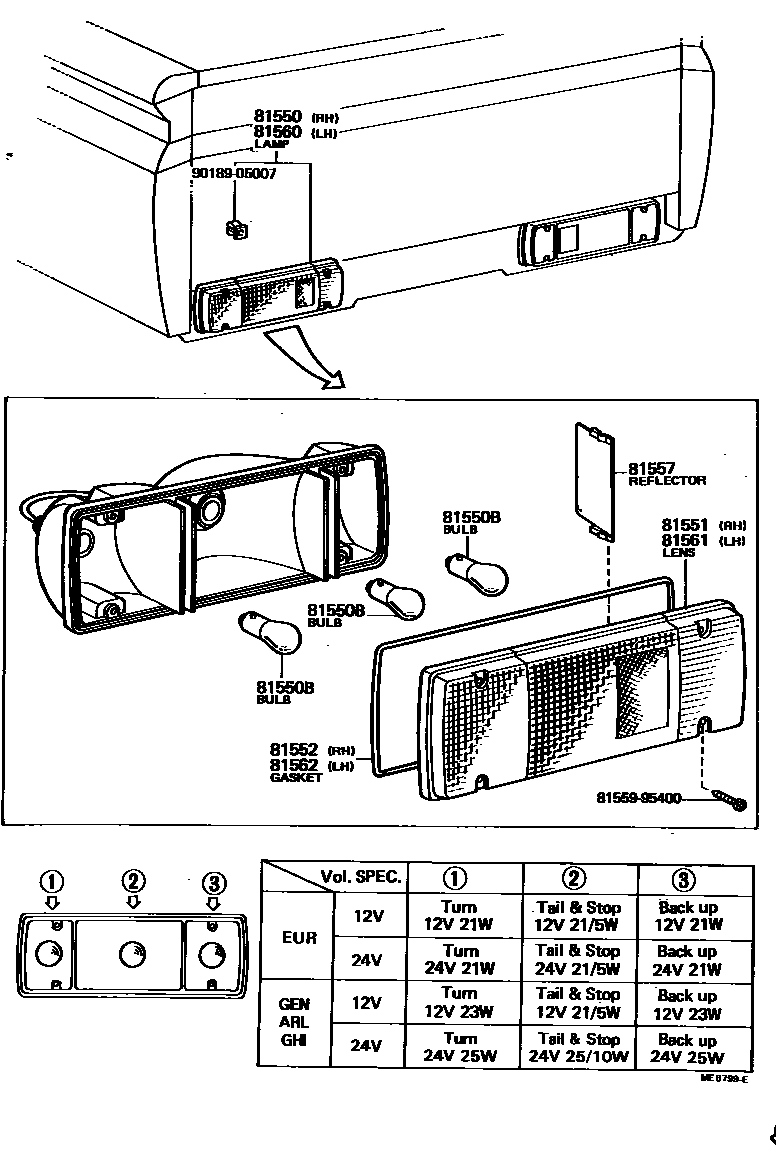

Toyota DYNA — REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥12,100198104-198408

24V

main81550-39455iBU40,WU40..LHD¥12,100198302-198408

24V

main81550-39465iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)¥12,300197708-198411

12V

main81550-39475iRU20,30..EUR¥12,100197904-198408

12V

sub81550-95418¥14,600

main81550-39485iBU20,30,JU20..T3..EUR¥15,900197708-198408

24V

sub81550-95417¥14,600

main81550-92607iBU20,RU20..(HRF,SRF)..GEN¥12,100197708-198408

12V

main81550-92629iBU20,JU20..V..EUR¥17,500197708-198008

24V

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBU20,30,JU20..EUR¥270197708-198408

24V 21W,24V 21W

main90981-16015iBU20,30,JU20..EUR¥350197708-198408

24V 21/5W,24V 21/5W

main90981-16021iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥350198104-198408

24V 25/10W,24V 25/10W

main90981-16021iBU40,WU40..LHD¥350198302-198408

24V 25/10W,24V 25/10W

main99132-11210iRU20,30..EUR¥170197708-198408

12V 21W,12V 21W

main99132-11230iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI197708-198411

12V 23W,12V 23W

main99132-21210iRU20,30..ARL¥190197904-198408

12V 21/5W,12V 21/5W

main99132-21210iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥190197708-198411

12V 21/5W,12V 21/5W

main99134-11250iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥230198104-198408

24V 25W,24V 25W

main99134-11250iBU40,WU40..LHD¥230198302-198408

24V 25W,24V 25W

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU20,RU20..(HRF,SRF)..GEN¥2,920197708-198408

AMBER-RED-CLEAR

main81551-92629iBU20,JU20..V..EUR¥3,430197708-198008

AMBER-RED-CLEAR

main81551-95400iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)¥2,920197708-198411

AMBER-RED-CLEAR

sub81554-60441¥2,920

main81551-95403iBU20,30,JU20,RU20,30..TR..EUR¥3,130197708-198408

AMBER-RED-CLEAR

sub81551-95417¥3,120

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥510197708-198411

81557REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-95403iBU20,30,JU20,RU20,30..EUR¥590197708-198008

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92607iBU20,RU20..(HRF,SRF)..GEN¥12,100197708-198408

12V

main81550-92629iBU20,JU20..V..EUR¥17,500197708-198008

24V

main81560-39425iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥12,100198104-198408

24V

main81560-39425iBU40,WU40..LHD¥12,100198302-198408

main81560-39435iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)¥12,300197708-198411

12V

main81560-39445iRU20,30..EUR¥12,100197904-198408

12V

sub81560-95419¥14,600

main81560-39455iBU20,30,JU20..T3..EUR¥15,900197708-198408

24V

sub81560-95418¥14,600

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU20,RU20..(HRF,SRF)..GEN¥2,920197708-198408

AMBER-RED-CLEAR

main81551-92629iBU20,JU20..V..EUR¥3,430197708-198008

AMBER-RED-CLEAR

main81561-95400iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)¥2,920197708-198411

AMBER-RED-CLEAR

sub81564-60371¥2,920

main81561-95403iBU20,30,JU20,RU20,30..TR..EUR¥3,130197708-198408

AMBER-RED-CLEAR

sub81561-95418¥3,130

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥510197708-198411

8159995400

main81599-95400

9018905007

main90189-05007¥160

10 parts on this diagram · 2 diagrams in section
