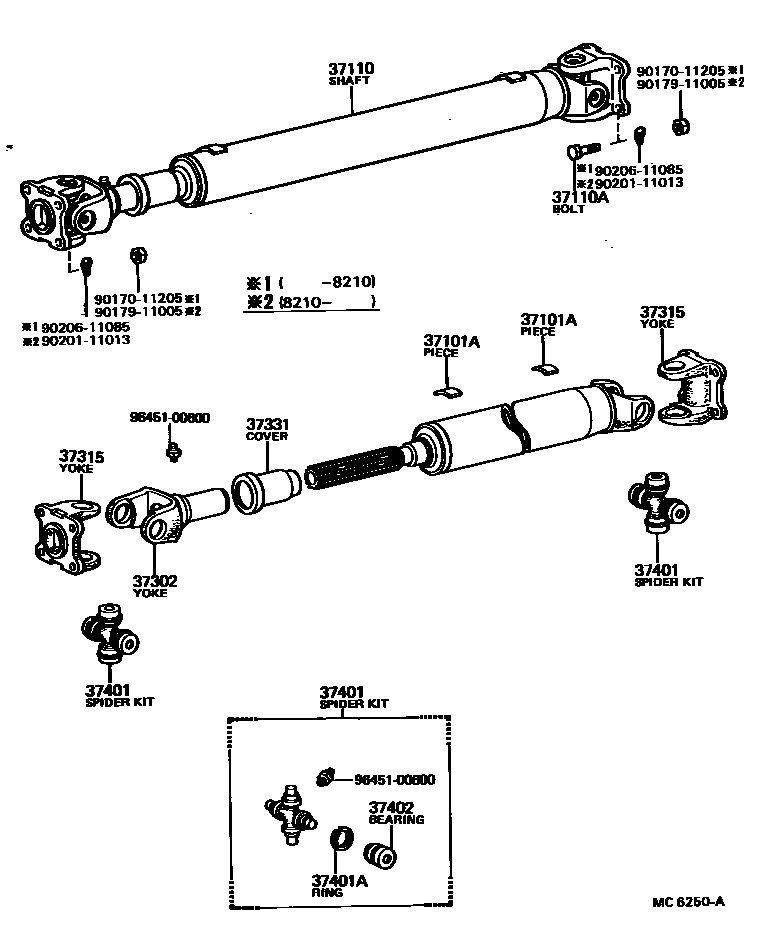

Toyota DYNA — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198411

10G,L=20.7,10G

main90937-01136iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥200197708-198411

20G,L=41.4,20G

main90937-01140iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198411

30G,L=62.2,30G

main90937-01147iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥120197708-198411

2G,T=2.0,2G

main90937-01148iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

4G,T=2.0,4G

main90937-01149iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

6G,L=12.4,6G

main90937-01150iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

8G,L=16.6,8G

main90937-01151iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥120197708-198411

12G,L=24.9,12G

main90937-01152iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

14G,L=29.0,14G

main90937-01153iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

16G,L=33.2,16G

main90937-01154iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

18G,L=37.3,18G

main90937-01155iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

22G,L=45.6,22G

main90937-01156iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

24G,L=49.7,24G

main90937-01157iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

26G,L=53.9,26G

main90937-01158iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-25270iBU20¥78,400198408-198411

main37110-36201iBU30,RU30¥82,300197708-198204

sub37110-36202¥74,800

main37110-36202iBU30,RU30¥74,800198204-198408

sub37110-36371¥74,800

main37110-36290iBU20,JU20,RU20¥81,800197708-198204

main37110-36330iHU30197708-197904

main37110-36350iBU20,RU20..5H..WT..(ARL,GEN)..IV3¥82,300197708-198204

DUMP SPEC

sub37110-36351¥74,800

main37110-36351iBU20..TS..WT..(ARL,GEN)..IV3¥74,800198204-198408

DUMP SPEC

sub37110-36471¥74,800

main37110-36360iBU25,RU25¥85,100197803-198204

sub37110-36361

main37110-36361iBU25198204-198408

main37110-36370iBU31,32,HU30¥82,300197904-198204

sub37110-36371¥74,800

main37110-36371iBU31,32¥74,800198204-198408

main37110-36381iBU36¥84,600198302-198408

main37110-36390iRU25198008-198108

main37110-36391iRU25¥99,100198108-198204

sub37110-36392

main37110-36392iRU25198204-198408

main37110-36431iBU40,HU40,WU40¥93,500198204-198408

main37110-36441iHU50,WU50198204-198408

main37110-36471iBU23¥74,800198312-198408

main37110-36480iRU25¥89,800198304-198408

S.ARABIA SPEC

sub37110-36290¥81,800

main37110-36480iBU20,RU20¥89,800198204-198408

sub37110-36290¥81,800

main37110-36550iBU30¥77,000198408-198411

37110ABOLT (FOR PROPELLER SHAFT)

main90101-11468iBU2#,3#,40,HU30,40,50,JU20,RU2#,30¥210197708-198210

sub90105-11H00¥480

main90105-11013iBU2#,3#,40,HU40,50,RU2#,30,WU40,50¥190198210-198411

*11-1.00PX28-16

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥12,500197708-198411

sub37302-36H00¥12,900

sub37302-36H01¥12,900

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥6,400197708-198408

main37315-36020iBU20,30¥4,760198408-198411

sub37315-60090¥4,760

37331COVER, SLIDING SHAFT DUST

main37305-25010iBU2#,3#,HU30,JU20,RU2#,30¥1,150197708-198204

main37305-36010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50¥2,280198204-198411

37401SPIDER KIT, UNIVERSAL JOINT

main04371-36021iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥9,100197708-198408

sub04371-36030¥8,500

main04371-36030iBU20,30¥8,500198408-198411

sub04371-60210¥5,300

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥180198101-198408

T=1.53,T=1.63

main90520-29024iBU20,30¥120198408-198411

T=2.00,NO MARK,T=2.00

main90520-29025iBU20,30¥120198408-198411

T=2.03,BROWN,T=2.03

main90520-29026iBU20,30¥120198408-198411

T=2.06,BLUE,T=2.06

main90520-29027iBU20,30¥120198408-198411

T=2.09,NO MARK,T=2.09

main90520-29286iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198408

T=1.50,T=1.50

main90520-29287iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198408

T=1.56,T=1.56

main90520-29288iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198408

T=1.59,T=1.59

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36060iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥980197708-198408

sub37402-36080¥640

sub90520-29024¥120

sub90520-29025¥120

sub90520-29026¥120

sub90520-29027¥120

main37402-36080iBU20,30¥640198408-198411

9017011205

main90170-11205¥180

9017911005

main90179-11005¥180

9020111013

main90201-11013¥90

9020611085

main90206-11085¥120

9645100600

main96451-00600¥110

14 parts on this diagram · 2 diagrams in section
