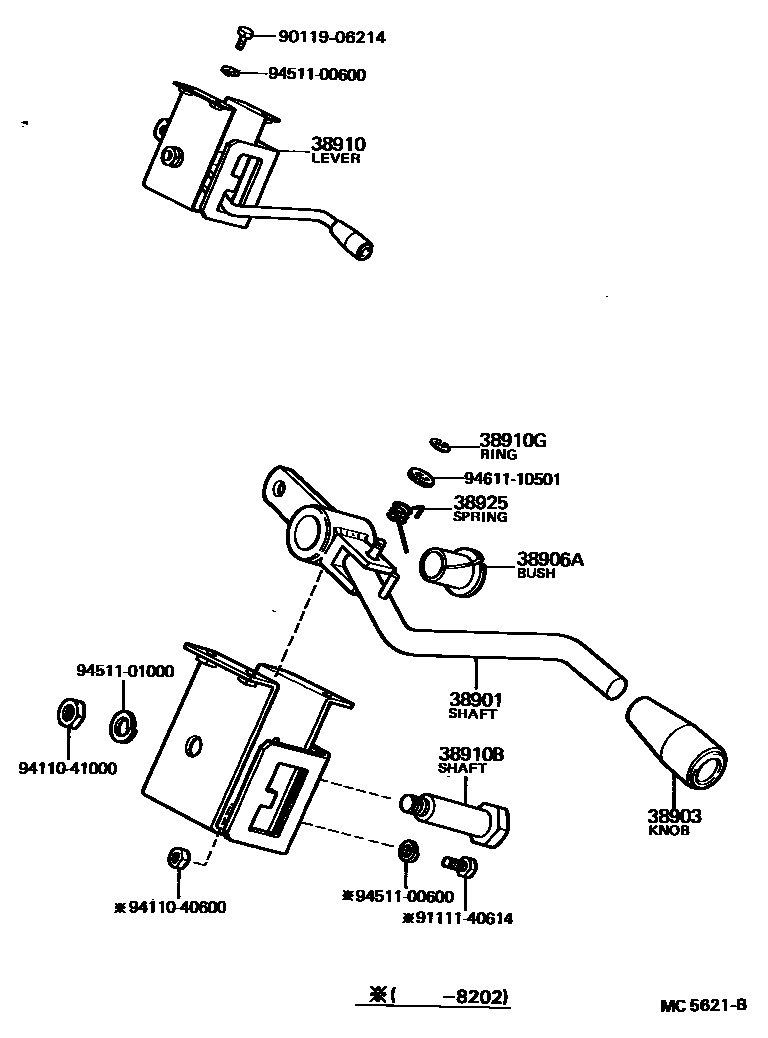

Toyota DYNA — POWER TAKE-OFF LEVER & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

38901SHAFT SUB-ASSY, CONTROL

main38912-93100iRU25..5F197803-198408

38903KNOB SUB-ASSY, CONTROL

main38916-93004iBU25,RU25..5H197803-198408

main38916-93300iBU25198009-198408

38906BRACKET SUB-ASSY, CONTROL SHAFT, LOWER

main38951-93111iRU25..ARL197803-198204

main38951-93120iRU25..RHD..GEN197803-198408

main38951-93130iBU25,RU25..LHD..5H197803-198204

main38951-93131iBU25198204-198408

38906ABUSH, CONTROL LINK

main90389-16001iRU25..5F197803-198408

38910LEVER ASSY, DUMP

main38910-93111iRU25..ARL197803-198008

main38910-93120iRU25..RHD..GEN197803-198008

main38910-93130iBU25,RU25..LHD..5H197803-198408

main38910-93140iRU25..5F197803-198408

38910BSHAFT, CONTROL LEVER

main38911-93104iBU25,RU25..5H197803-198408

main38911-93110iRU25..5F197803-198408

38910GRING, E (FOR CONTROL LEVER SHAFT)

main90523-04008iRU25..5F¥140197803-198408

sub96160-00400¥120

38925SPRING, CONTROL LINK SET

main90506-14024iRU25..5F197803-198408

9011906214

main90119-06214¥120

9111140614

main91111-40614

9411040600

main94110-40600¥80

9411041000

main94110-41000¥160

9451100600

main94511-00600¥120

9451101000

main94511-01000¥110

9461110501

main94611-10501¥80

15 parts on this diagram · 6 diagrams in section
