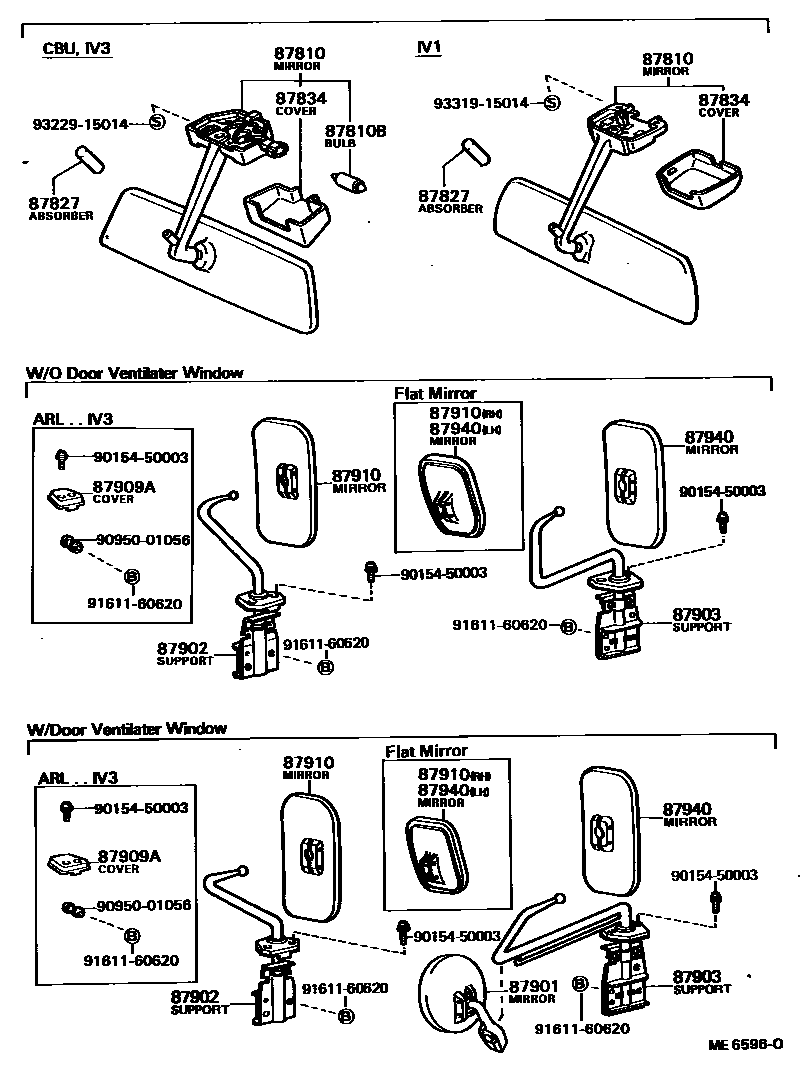

Toyota DYNA — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95404iBU2#,30,HU30,RU2#,30..(ARL,GEN)..(CBU,IV3)¥6,000197708-198008

12V

sub87810-95411¥7,200

main87810-95406iRU20,30..EUR¥16,800197904-198008

12V

sub87810-95412¥15,400

main87810-95407iBU20,30,JU20..EUR¥12,800197708-198008

24V

sub87810-95413¥16,800

main87810-95410iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥7,900198104-198408

24V

main87810-95411iBU30..5F;BU30..5H..(GEN,GHI)..(CBU,IV3);BU2#,31,32,HU30,RU2#,30..(ARL,GEN)..(CBU,IV3)¥7,200198008-198411

12V

main87810-95412iHU40,50..GEN..IV3¥15,400198210-198408

EEC SPEC

main87810-95412iRU20,30..GEN..IV3¥15,400198212-198408

EEC SPEC

main87810-95412iRU20,30..EUR¥15,400198008-198408

12V

main87810-95413iBU20,30..EUR¥16,800198008-198408

24V

main87810-95414iBU20,30..GEN..IV1198008-198411

main87810-95415iBU40,WU40..LHD¥7,900198302-198408

24V

main87810-95416iBU36,40,HU40,50,WU40,50¥6,700198204-198408

12V

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11004iRU20,30..EUR¥150197904-198408

12V 10W,12V 10W

main90981-11004iBU30..5F;BU30..5H..(GEN,GHI)..(CBU,IV3);BU2#,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..(ARL,GEN)..(CBU,IV3)¥150197708-198411

12V 10W,12V 10W

main90981-16019iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥220198104-198408

24V 10W,24V 10W

main90981-16019iBU20,30,JU20..EUR¥220197708-198104

24V 10W,24V 10W

main90981-16019iBU40,WU40..LHD¥220198302-198408

24V 10W,24V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥280198008-198411

L=35.8

main87828-23010iBU36,40,HU40,50,WU40¥180198305-198408

L=40.5

main87828-23010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198411

L=40.5

main87828-30010iBU36,40,HU40,50,WU40¥220198204-198305

L=44

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥520197708-198411

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87906-95402iBU36,40,WU40,50..LHD¥3,650198302-198408

main87906-95402iBU40,HU40,50¥3,650198205-198302

main87906-95403iHU40,50..GEN..IV3¥3,640198210-198212

SOUTH AFRICA SPECIFICATION

main87906-95403iBU36,40,HU40,50,WU40..RHD¥3,640198302-198408

main87906-95405iBU23,31¥3,660198104-198408

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87903-95404iBU20,RU20..RHD..ST¥7,300197708-197802

sub87903-95410¥6,700

main87903-95405iBU20,RU20..RHD..WT..GEN¥6,700197912-198008

sub87903-95412¥5,900

main87903-95405iBU30,HU30,RU25,30..RHD¥6,700197708-197912

sub87903-95412¥5,900

main87903-95405iBU20,RU20..RHD..ST¥6,700197708-198008

W/*VW

sub87903-95412¥5,900

main87903-95406iBU20,RU20..LHD..ST..GEN¥7,100197708-198008

main87903-95406iRU20,30..(4F,4H)..WT¥7,100197912-198008

main87903-95407iBU20,RU20..LHD..WT..GEN¥9,600197708-198008

W/*VW

sub87903-95422¥7,900

main87903-95408iBU20,JU20..ST..EUR¥7,100197708-198008

sub87903-95417¥4,920

main87903-95409iBU20,RU20,30..WT..EUR¥7,100197708-198008

sub87903-95418¥11,100

main87903-95410iBU20,RU20..RHD..ST..GEN¥6,700197912-198008

main87903-95410iBU20,RU20..RHD..ST¥6,700197802-197912

main87903-95412iBU20,36,40,HU40,50,RU20,WU40..RHD..WT..GEN¥5,900198008-198411

W/*VW

main87903-95412iRU20..WT..ARL..CBU¥5,900198008-198104

main87903-95413iBU20,RU20..RHD..ST..GEN¥5,900198008-198411

main87903-95413iRU20..ST..ARL¥5,900198008-198408

main87903-95416iBU20,RU20..LHD..ST..GEN¥10,700198008-198104

W/*VW

main87903-95416iBU23,31¥10,700198104-198408

main87903-95417iBU20..ST..EUR¥4,920198008-198204

main87903-95418iBU20,30,RU20,30..WT..EUR¥11,100198008-198408

main87903-95418iHU40,50..GEN..IV3¥11,100198210-198408

SOUTH AFRICA SPECIFICATION

main87903-95418iRU20,30..GEN..IV3¥11,100198212-198408

SOUTH AFRICA SPECIFICATION

main87903-95421iBU20,RU20..LHD..ST..GEN198008-198408

main87903-95421iRU25198304-198408

SAUDI ARABIA SPECIFICATION

main87903-95422iBU20,25,30,32,RU2#,30..LHD..WT..(GEN,GHI)¥7,900198104-198408

W/*VW

main87903-95424iBU36,40,WU40,50..LHD198302-198408

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87904-95404iBU20,RU20..RHD..ST..GEN¥7,900197912-198008

sub87904-95416¥5,900

main87904-95404iBU20,RU20..RHD..ST¥7,900197708-197912

sub87904-95416¥5,900

main87904-95405iBU20,HU30,RU25,30..ARL..CBU¥7,900197912-198008

sub87904-95414¥7,900

main87904-95405iBU30,HU30,RU25,30..RHD¥7,900197708-197912

sub87904-95414¥7,900

main87904-95405iBU20,RU20..RHD..ST¥7,900197708-198008

W/*VW

sub87904-95414¥7,900

main87904-95406iBU20,JU20,RU20..LHD..ST¥7,500197708-197802

sub87904-95412¥7,100

main87904-95407iBU20,RU20..LHD..ST..GEN¥7,100197708-198008

W/*VW

sub87904-95418¥5,900

main87904-95412iRU20,30..(4F,4H)..WT¥7,100197912-198008

main87904-95412iBU20,JU20,RU20..LHD..ST¥7,100197802-198008

main87904-95414iBU20,30,40,HU40,50,RU20,30..RHD..WT..(GEN,GHI)¥7,900198302-198411

CONVEX MIRROR

main87904-95414iBU20,30,40,HU40,50,RU20,30..RHD..WT..(GEN,GHI)¥7,900198104-198302

CONVEX MIRROR

main87904-95414iBU20,RU20..RHD..ST¥7,900198104-198411

W/*VW,CONVEX MIRROR

main87904-95416iRU20..ST..ARL¥5,900198008-198408

main87904-95416iBU20,RU20..RHD..ST..GEN¥5,900198008-198411

main87904-95417iBU20,RU20..RHD..ST¥10,700198008-198104

W/*VW

main87904-95417iBU20,30,RU20,30..RHD..WT..(GEN,GHI)¥10,700198104-198411

FLAT MIRROR

main87904-95417iBU20,30,RU20,30..RHD..WT..(GEN,GHI)¥10,700198104-198411

W/*VW,FLAT MIRROR

main87904-95418iBU20,RU20..LHD..ST..GEN¥5,900198008-198408

W/*VW

main87904-95419iBU20..ST..EUR198008-198204

main87904-95420iBU20,30,RU20,30..WT..EUR¥8,100198008-198408

main87904-95425iBU20,RU20..LHD..ST..GEN¥5,900198008-198408

main87904-95425iRU25¥5,900198304-198408

SAUDI ARABIA SPECIFICATION

main87904-95426iBU36,40,HU40,50,WU40..RHD¥7,900198302-198408

main87904-95427iHU40,50..GEN..IV3¥7,900198210-198408

SOUTH AFRICA SPECIFICATION

main87904-95427iRU20,30..GEN..IV3¥7,900198212-198408

SOUTH AFRICA SPECIFICATION

87909ACOVER, OUTER REAR VIEW MIRROR

main87909-95400iBU20,JU20..ST..EUR¥2,110197708-198008

GRAY

main87909-95400iBU20,HU30,RU2#,30..ARL..IV3¥2,110197912-198008

GRAY

main87909-95401iBU20..ST..EUR¥2,150198008-198204

BLACK

main87909-95401iBU20,32,36,HU30,40,50,RU20,30..ARL..IV3¥2,150198008-198408

BLACK

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87901-90303iHU30,RU2#,30..ARL¥3,040197708-197912

FLAT MIRROR

main87901-90303iBU20,HU30,RU2#,30..ARL..CBU¥3,040197912-198008

FLAT MIRROR

main87901-90303iBU20,30,RU2#,30..RHD..GEN¥3,040197708-198008

FLAT MIRROR

main87901-95407iBU2#,30,HU30,RU2#,30..GEN¥2,740197708-198008

CONVEX MIRROR

sub87901-95412¥2,860

main87901-95409iBU20,30,JU20,RU20,30..EUR¥3,580197708-198008

CONVEX MIRROR

sub87901-95417¥5,900

main87901-95411iBU36,40,HU40,50,WU40..RHD¥3,410198204-198408

sub87901-37030¥5,900

main87901-95412iBU2#,30,31,32,HU30,RU2#,30..GEN,GHI¥2,860198008-198411

CONVEX MIRROR

main87901-95414iRU20..ARL..CBU¥2,840198104-198408

FLAT MIRROR

sub87901-37050¥2,840

main87901-95414iBU20,HU30,RU20,30..ARL..CBU¥2,840198008-198104

FLAT MIRROR

sub87901-37050¥2,840

main87901-95414iBU20,30,RU20,30..RHD..TR..(GEN,GHI)¥2,840198008-198411

FLAT MIRROR

sub87901-37050¥2,840

main87901-95415iBU36,40,WU40,50..LHD¥3,640198302-198408

sub87901-37040¥5,300

main87901-95416iRU20,30..GEN..IV3¥5,800198212-198408

SOUTH AFRICA SPECIFICATION

sub87901-95417¥5,900

main87901-95416iBU20,30,RU20,30..EUR¥5,800198008-198408

sub87901-95417¥5,900

main87901-95416iHU40,50..GEN..IV3¥5,800198210-198408

SOUTH AFRICA SPECIFICATION

sub87901-95417¥5,900

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87901-90303iBU20,HU30,RU2#,30..ARL..CBU¥3,040197912-198008

FLAT MIRROR

main87901-90303iHU30,RU2#,30..ARL¥3,040197708-197912

FLAT MIRROR

main87901-90303iBU20,30,RU2#,30..RHD..(DMP,TR)..GEN¥3,040197708-198008

FLAT MIRROR

main87901-95407iBU2#,30,HU30,RU2#,30..GEN¥2,740197708-198008

CONVEX MIRROR

sub87901-95412¥2,860

main87901-95409iBU20,30,JU20,RU20,30..EUR¥3,580197708-198008

CONVEX MIRROR

sub87901-95417¥5,900

main87901-95411iBU40,HU40,50¥3,410198204-198302

sub87901-37030¥5,900

main87901-95411iBU36,40,WU40,50..LHD¥3,410198302-198408

sub87901-37030¥5,900

main87901-95412iBU2#,30,31,32,HU30,RU2#,30..GEN,GHI¥2,860198008-198411

CONVEX MIRROR

main87901-95414iBU20,HU30,RU20,30..ARL..CBU¥2,840198008-198104

FLAT MIRROR

sub87901-37050¥2,840

main87901-95414iRU20..ARL..CBU¥2,840198104-198408

FLAT MIRROR

sub87901-37050¥2,840

main87901-95414iBU20,30,RU20,30..RHD..TR..(GEN,GHI)¥2,840198008-198411

FLAT MIRROR

sub87901-37050¥2,840

main87901-95415iBU36,40,HU40,50,WU40..RHD¥3,640198302-198408

sub87901-37040¥5,300

main87901-95416iBU20,30,RU20,30..EUR¥5,800198008-198408

sub87901-95417¥5,900

main87901-95416iRU20,30..GEN..IV3¥5,800198212-198408

SOUTH AFRICA SPECIFICATION

sub87901-95417¥5,900

main87901-95416iHU40,50..GEN..IV3¥5,800198210-198408

SOUTH AFRICA SPECIFICATION

sub87901-95417¥5,900

9015450003

main90154-50003¥140

9095001056

main90950-01056¥230

9161160620

main91611-60620¥90

9322915014

main93229-15014¥130

9331915014

main93319-15014¥140

15 parts on this diagram · 2 diagrams in section
