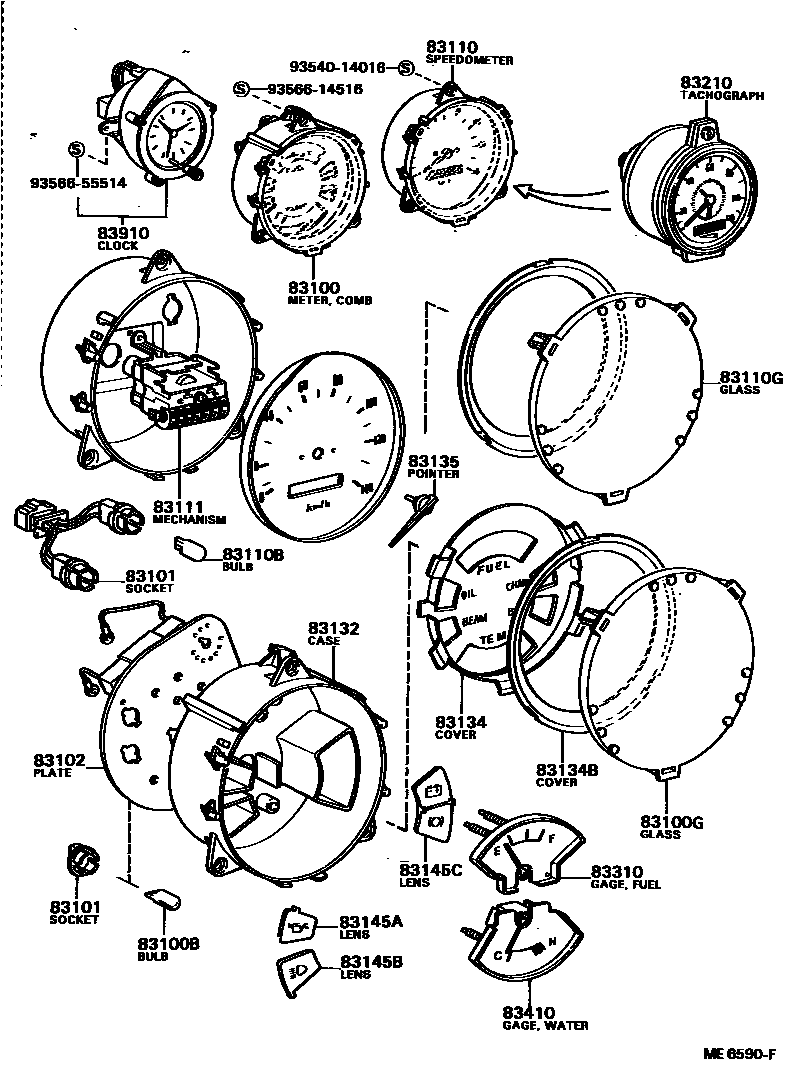

Toyota DYNA — METER

0001 1 0002 1 0003 1 0004 1

83100METER ASSY, COMBINATION

main83100-95400iBU20,30,JU20..EUR197708-197912

24V

main83100-95401iRU20,30;BU2#,30,HU30,RU25..ARL,GEN197708-197912

12V

main83100-95402iBU2#,30,HU30,RU2#,30..GEN197912-198008

MIDDLE EAST COUNTRYS SPEC

main83100-95403iBU20,30..EUR197912-198008

24V

main83100-95404iRU20,30;BU2#,30,HU30,RU25..ARL,GEN197912-198008

12V

main83100-95408iBU20..ST..EUR;BU20,25,30..LHD..5H..WT198104-198408

24V

main83100-95408iBU20,30..EUR198008-198104

24V

main83100-95408iBU40,WU40..LHD198302-198408

24V

main83100-95409iRU20,30..EUR¥10,400198008-198408

12V

main83100-95409iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..GEN,GHI¥10,400198008-198411

12V

main83100-95410iBU20,32,36,HU30,40,50,RU20,30..ARL198008-198408

12V

main83100-95411iBU40,WU40..LHD¥10,400198302-198408

MIDDLE EAST COUNTRYS SPEC

main83100-95411iBU20,25,30,32,36,HU30,RU2#,30..GEN,GHI¥10,400198008-198408

MIDDLE EAST COUNTRYS SPEC

main83100-95412iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥17,000198104-198408

24V,MIDDLE EAST COUNTRYS SPEC

83100BBULB, COMBINATION METER, NO.1

main90981-16010iBU20,30,JU20..EUR¥120197708-198104

24V 3W,24V 3.4W

sub99134-12030¥120

main99132-12034iRU20,30;BU2#,3#,40,HU30,40,50,RU25,WU40,50..ARL,GEN,GHI¥100197708-198411

12V 3.4W,12V 3.4W

main99134-12030iBU40,WU40..LHD¥120198302-198408

24V 3W,24V 3W

main99134-12030iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥120198104-198408

24V 3W,24V 3W

83100GGLASS, COMBINATION METER

main83134-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥1,200197708-198411

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥220197708-198411

COMBINATION METER

main83101-95401iRU2#..GEN;BU25,30,HU30..ARL,GEN197803-198008

SPEEDOMETER

main83101-95401iRU20,30..GEN198008-198408

SPEEDOMETER

main83101-95401iBU2#,3#,40,HU30,40,50,RU25,WU40,50198008-198411

SPEEDOMETER

main83101-95401iBU20,30,HU30,JU20,RU20,30197708-197803

SPEEDOMETER

main83101-95401iBU20,30,JU20..EUR197708-198008

SPEEDOMETER

main83101-95403iBU20,30,HU30..RHD..WT..GEN197708-197907

SPEEDOMETER,W/*EB

main83101-95403iRU2#..ARL,EUR197803-198008

SPEEDOMETER

main83101-95403iRU30..EUR197904-198008

SPEEDOMETER

main83101-95403iBU20,30..RHD..TR..(GEN,GHI)198008-198204

SPEEDOMETER,W/*EB

main83101-95403iRU20,30..ARL,EUR198008-198408

SPEEDOMETER

main83101-95403iBU36,40,WU40,50;BU30,HU40,50..RHD;BU20..RHD..TR..GEN198204-198411

SPEEDOMETER,W/*EB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95400iBU20,30,JU20..EUR197708-198008

24V

main83247-95401iRU20,30;BU2#,30,HU30,RU25..ARL,GEN197708-198008

12V

main83247-95402iBU40,WU40..LHD¥1,750198302-198408

24V

main83247-95402iBU20,30..EUR¥1,750198008-198104

24V

main83247-95402iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥1,750198104-198408

24V

main83247-95403iRU20,30;BU2#,3#,40,HU30,40,50,RU25,WU40,50..ARL,GEN,GHI¥1,750198008-198411

12V

83110SPEEDOMETER ASSY

main83110-95403iBU20,30,HU30,RU20,30197708-197803

12V,KM

main83110-95403iRU2#..GEN;BU25,30,HU30..ARL,GEN197803-198008

12V,KM

main83110-95404iBU20,30,JU20..EUR197708-198008

24V,KM

main83110-95408iBU2#,30,HU30,RU2#,30..GEN197708-198008

12V,MILE & KM

main83110-95414iRU30..EUR197904-198008

12V,KM

main83110-95414iBU20,30,HU30..RHD..WT..GEN197708-197907

12V,KM,W/*EB

main83110-95414iRU2#..ARL,EUR197803-198008

12V,KM

main83110-95416iBU20,30,HU30..RHD..WT..GEN197708-197907

12V,MILE & KM,W/*EB

main83110-95421iBU20..ST..EUR;BU2#,30..LHD..5H..WT¥19,900198104-198204

24V,KM

sub83110-95427¥19,800

main83110-95421iBU20,30..EUR¥19,900198008-198104

24V,KM

sub83110-95427¥19,800

main83110-95422iBU20,32,HU30..ARL¥19,900198008-198204

12V,KM

sub83110-95428¥19,800

main83110-95423iRU20,30..ARL,EUR¥24,600198008-198204

12V,KM

sub83110-95429¥24,400

main83110-95423iBU20,30..RHD..TR..(GEN,GHI)¥24,600198008-198204

12V,KM,W/*EB

sub83110-95429¥24,400

main83110-95424iBU2#,30,32,HU30,RU2#,30..GEN,GHI¥21,700198008-198204

12V,MILE & KM

sub83110-95430

main83110-95425iBU20,30..RHD..TR..(GEN,GHI)¥24,900198008-198204

12V,MILE & KM,W/*EB

sub83110-95431¥24,800

main83110-95426iBU2#,30..LHD..5H..WT..(GEN,GHI)¥20,500198104-198204

24V,MILE & KM

sub83110-95432

main83110-95427iBU40,WU40..LHD¥19,800198302-198408

24V,KM

main83110-95427iBU20,25,30..LHD..5H..WT¥19,800198204-198408

24V,KM

main83110-95428iBU20,32,36,HU40,50..ARL¥19,800198204-198306

12V,KM

main83110-95428iBU2#,3#,40,HU40,50,RU2#,30,WU40,50..GEN,GHI¥19,800198204-198411

12V,KM

main83110-95429iBU36,40,HU40,50,WU40..GEN¥24,400198306-198408

12V,KM

main83110-95429iRU20,30..ARL,EUR¥24,400198204-198306

12V,KM

main83110-95429iRU20,30..ARL,EUR¥24,400198204-198306

12V,KM,W/*EB

main83110-95429iRU20,30..EUR¥24,400198306-198408

12V,KM,W/*EB

main83110-95430iBU2#,30,32,36,40,HU40,50,RU2#,30,WU40,50..GEN,GHI198204-198411

12V,MILE & KM

main83110-95431iBU36,40,WU40,50;BU20,30,HU40,50..RHD..TR..(GEN,GHI)¥24,800198204-198411

12V,MILE & KM,W/*EB

main83110-95432iBU20,25,30..LHD..5H..WT..(GEN,GHI)198204-198408

24V,MILE & KM

main83110-95433iBU40,WU40..LHD198302-198408

24V,W/*EB

main83110-95434iBU20,32,36,HU40,50..ARL198306-198408

12V,KM

main83110-95435iBU36,HU40,50,RU20,30..ARL198306-198408

12V,KM,W/*EB

main83110-95436iRU2#..5F..GEN;RU30..TB..5F..GEN198308-198408

12V,KM,*SAA

83110BBULB, SPEEDOMETER

main90981-16010iBU20,30,JU20..EUR¥120197708-198104

24V 3.4W

sub99134-12030¥120

main99132-12034iRU20,30;BU2#,3#,40,HU30,40,50,RU25,WU40,50..ARL,GEN,GHI¥100197708-198411

12V 3.4W

main99134-12030iBU40,WU40..LHD¥120198302-198408

24V 3W

main99134-12030iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥120198104-198408

24V 3W

83110GGLASS, SPEEDOMETER

main83134-95400iBU2#,3#,HU30,JU20,RU2#,30¥1,200197708-198204

83111MECHANISM, SPEEDOMETER

main83112-95400iBU20,30,HU30..RHD..WT..GEN197708-197907

MILE,W/*EB

main83112-95A02iRU30..ARL,GEN¥15,200197803-198008

KM

sub83112-95A04¥13,900

main83112-95A02iBU20,30,HU30,JU20,RU20,30¥15,200197708-197803

KM

sub83112-95A04¥13,900

main83112-95A02iBU20,30,JU20..EUR¥15,200197708-198008

KM

sub83112-95A04¥13,900

main83112-95A03iBU2#,30,HU30,RU2#,30..GEN197708-198008

MILE & KM

main83112-95A04iBU20,30,HU30..RHD..WT..GEN¥13,900197708-197907

KM,W/*EB

main83112-95A04iRU2#..ARL,EUR¥13,900197803-198008

KM

main83112-95A04iRU30..EUR¥13,900197904-198008

KM

83132CASE, COMBINATION METER

main83132-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50..EUR,GEN,GHI197708-198411

83134COVER, COMBINATION METER, NO.1

main83134-95402iBU2#,30,HU30,JU20,RU2#,30197708-198008

main83134-95403iBU20,32,36,HU30,40,50,RU20,30..ARL198008-198408

main83134-95404iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..EUR,GEN,GHI198008-198411

83134BCOVER, COMBINATION METER, NO.2

main83134-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥4,710197708-198408

83135POINTER, SPEEDOMETER

main83135-95400iBU2#,30,HU30,JU20,RU2#,30197708-198008

83145ALENS, METER, NO.2

main83145-95410iBU2#,30,HU30,JU20,RU2#,30197708-198008

main83145-95413iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

83145BLENS, METER, NO.3

main83145-95411iBU2#,30,HU30,JU20,RU2#,30197708-198008

main83145-95414iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

83145CLENS, METER, NO.4

main83145-95412iBU2#,30,HU30,JU20,RU2#,30197708-198008

main83145-95415iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..EUR,GEN,GHI198008-198411

main83145-95417iBU20,32,36,HU30,40,50,RU20,30..ARL198008-198408

83210TACHOGRAPH ASSY

main83210-95401iBU20,30,HU30,RU2#,30..RHD197708-197904

12V,KM,7-DAYS

main83210-95401iBU20,30,HU30,RU2#,30..RHD..(GEN,GHI)197904-198204

12V,KM,7-DAYS

main83210-95401iBU30,40,HU40,50..RHD;BU20,RU20,30..RHD..GEN198204-198302

main83210-95406iBU20,30,36,40,HU40,50,RU20,30,WU40..RHD..GEN198302-198411

12V,KM,7-DAYS

main83210-95407iBU40,HU40,50,WU40..RHD..GEN198302-198408

12V,KM,1-DAY

main83210-95408iWU40..LHD..IV3198307-198408

12V,KW,1-DAY,PORTUGAL SPEC

83310GAGE ASSY, FUEL RECEIVER

main83243-95400iBU2#,30,HU30,JU20,RU2#,30¥4,060197708-198008

main83243-95401iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥3,850198008-198411

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95400iBU2#,30,HU30,JU20,RU2#,30¥4,060197708-197912

main83244-95401iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥2,620198008-198411

main83244-95402iBU20,25,30,32,36,HU30,RU2#,30,WU40..GEN,GHI¥3,140198008-198408

MIDDLE EAST COUNTRYS SPEC

main83244-95420iBU2#,30,HU30,RU2#,30..GEN197912-198008

MIDDLE EAST COUNTRYS SPEC

main83244-95430iBU2#,30,HU30,RU2#,30197912-198008

83910CLOCK ASSY

main83910-19116iBU36,40,HU40,50,WU40,50198204-198408

12V

main83910-95400iBU40,WU40..LHD¥25,100198302-198408

24V

9354014016

main93540-14016¥120

9356614516

main93566-14516¥130

9356655514

main93566-55514¥130

23 parts on this diagram · 4 diagrams in section
