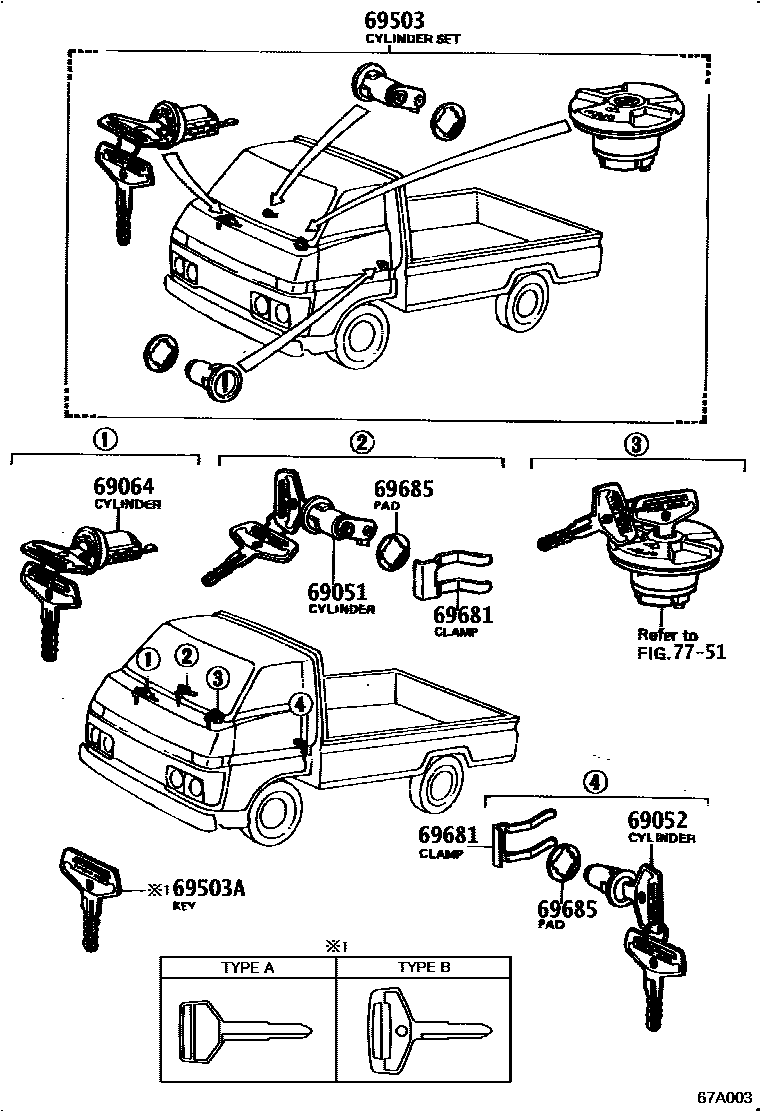

Toyota DYNA — LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥3,280197708-198411

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥3,280197708-198411

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-90740iBU20,25,30,32,HU30,JU20..LHD..5H¥6,200197708-198408

main69057-90741iBU20,30,32,HU30,JU20..LHD..5H¥5,700197708-198208

W/*EDIC

main69057-90741iBU20,23,30..LHD..5H..(GEN,GHI)¥5,700198208-198408

W/*EDIC

main69057-90742iRU20,30..LHD..(4H,5H)¥5,700197708-198408

main69057-95400iBU20,30,32,HU30..RHD..5H¥5,700197708-198408

W/*EDIC

sub69057-90B00¥6,700

main69057-95400iBU20,3#,40,HU30,40,50..5F¥5,700197708-198411

W/*EDIC

sub69057-90B00¥6,700

main69057-95401iBU20,30,32,36,HU30..5F¥5,300197708-198411

main69057-95401iBU20,30,HU30..RHD..5H¥5,300197708-198408

main69057-95401iHU40,50..GEN..IV3¥5,300198302-198408

main69057-95402iRU20,30..RHD..(4H,5H)¥6,000197708-198408

sub69057-90B01¥5,900

main69057-95404iBU20,30..EUR198208-198408

W/*EDIC

main69057-95406iWU40,50¥7,700198304-198408

69503CYLINDER SET, LOCK

main69503-92606iBU20,JU20..LHD..(HRF,SRF)197708-198408

W/FUEL TANK CAP KEY

main69503-92608iBU20..RHD..SRF197708-198408

W/O FUEL TANK CAP KEY

main69503-92609iRU20..RHD..SRF197708-198408

W/O FUEL TANK CAP KEY

main69503-92610iBU20,JU20..LHD..(HRF,SRF)197708-198408

W/O FUEL TANK CAP KEY,W/*EDIC

main69503-92611iBU20,JU20..LHD..(HRF,SRF)197708-198408

W/FUEL TANK CAP KEY,W/*EDIC

main69503-92612iRU20..LHD..(HRF,SRF)..(4H,5H)197708-198408

W/FUEL TANK CAP KEY

main69503-92613iBU20..RHD..SRF197708-198408

W/FUEL TANK CAP KEY

main69503-92614iBU20..RHD..SRF197708-198408

W/O FUEL TANK CAP KEY,W/*EDIC

main69503-92615iBU20,JU20..LHD..(HRF,SRF)197708-198408

W/O FUEL TANK CAP KEY

main69503-92616iBU20..RHD..SRF197708-198408

W/FUEL TANK CAP KEY,W/*EDIC

main69503-92617iRU20..LHD..(HRF,SRF)..(4H,5H)197708-198408

W/O FUEL TANK CAP KEY

main69503-92618iRU20..(HRF,SRF)..(4F,5F)197708-198408

W/O FUEL TANK CAP KEY

main69503-92620iRU20..RHD..SRF197708-198408

W/FUEL TANK CAP KEY

main69503-92621iRU20..(HRF,SRF)..(4F,5F)197708-198408

W/FUEL TANK CAP KEY

main69503-95400iRU20,30..RHD..TR..(4H,5H)¥16,900197708-198408

W/FUEL TANK CAP KEY

main69503-95401iBU20,30,32,HU30..RHD..TR..5H..(CBU,IV3)¥17,600197708-198408

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95401iBU20,3#,40,HU30,40,50..5F¥17,600197708-198411

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95402iRU20,30..LHD..TR..(4H,5H)¥18,500197708-198408

W/FUEL TANK CAP KEY

main69503-95403iBU20,23,30..LHD..T3..5H..(GEN,GHI)¥17,800198208-198408

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95403iBU20,30,32,HU30,JU20..LHD..TR..5H¥17,800197708-198208

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95404iBU20,30,32,HU30,JU20..LHD..TR..5H197708-198408

W/O FUEL TANK CAP KEY

main69503-95405iRU20,30..LHD..TR..(4H,5H)¥13,400197708-198408

W/O FUEL TANK CAP KEY

main69503-95406iBU20,30,32,36,HU30..5F197708-198411

W/O FUEL TANK CAP KEY

sub69503-95411¥17,800

main69503-95406iBU20,30,HU30..RHD..TR..5H..(CBU,IV3)197708-198408

W/O FUEL TANK CAP KEY

sub69503-95411¥17,800

main69503-95407iRU2#,30..LHD..(4F,5F)¥13,400197708-198408

W/O FUEL TANK CAP KEY

sub69503-95400¥16,900

main69503-95408iBU20,30..LHD..T3..5H..(GEN,GHI)¥13,400198208-198408

W/O FUEL TANK CAP KEY,W/*EDIC

sub69503-95403¥17,800

main69503-95408iBU20,30,32,HU30,JU20..LHD..TR..5H¥13,400197708-198208

W/O FUEL TANK CAP KEY,W/*EDIC

sub69503-95403¥17,800

main69503-95409iBU20,30,32,36,40,HU30,40,50..5F¥13,400197708-198411

W/O FUEL TANK CAP KEY,W/*EDIC

sub69503-95401¥17,600

main69503-95409iBU20,30,32,HU30..RHD..TR..5H..(CBU,IV3)¥13,400197708-198408

W/O FUEL TANK CAP KEY,W/*EDIC

sub69503-95401¥17,600

main69503-95410iBU20,25,30,32,HU30,JU20..LHD..(DMP,TR)..5H¥18,500197708-198408

W/FUEL TANK CAP KEY

main69503-95411iHU40,50..GEN..IV3¥17,800198302-198408

W/FUEL TANK CAP

main69503-95411iBU20,30,32,HU30..RHD..TR..5H..(CBU,IV3)¥17,800197708-198408

W/FUEL TANK CAP KEY

main69503-95411iBU20,30,32,36,HU30..5F¥17,800197708-198411

W/FUEL TANK CAP KEY

main69503-95416iBU20,30,HU30..IV1¥7,200197708-198411

W/O FUEL TANK CAP KEY

sub69057-95401¥5,300

main69503-95417iBU20,30,HU30..IV1197708-198411

W/FUEL TANK CAP KEY

main69503-95418iBU20,30,HU30..IV1¥7,900197708-198411

W/O FUEL TANK CAP KEY,W/*EDIC

sub69057-95400¥5,700

main69503-95419iBU20,30,HU30..IV1197708-198411

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95424iBU20,30..EUR198208-198408

W/O FUEL TANK CAP KEY,W/*EDIC

sub69503-95425

main69503-95425iBU20,30..EUR198208-198408

W/FUEL TANK CAP KEY,W/*EDIC

main69503-95426iWU40,50198304-198408

W/O FUEL TANK CAP KEY

main69503-95427iWU40,50198304-198408

W/FUEL TANK CAP KEY

69503AKEY, BLANK

main90999-00066iRU2#,30¥1,550197708-198408

MASTER KEY,TYPE A:REFER ILLUST.

sub90999-00085¥1,550

main90999-00066iBU20,25,30,HU30,JU20¥1,550197708-198411

MASTER KEY,W/FUEL TANK CAP,TYPE A:REFER ILLUST.

sub90999-00085¥1,550

main90999-00072iBU2#,30,HU30,JU20,WU50¥1,550197708-198411

MASTER KEY,TYPE B:REFER ILLUST.

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBU20,JU20,RU20..HRF,SRF¥210197708-198408

RR DOOR,BACK DOOR

main69681-95402iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥400197708-198411

FR DOOR

69685PAD, LOCK CYLINDER

main69513-12020iBU2#,30,31,32,HU40,50,RU2#,30,WU40,50¥340198307-198411

main69685-95400iBU2#,30,31,32,HU30,40,50,JU20,RU2#,30,WU40¥280197708-198307

7751

8 parts on this diagram · 2 diagrams in section
