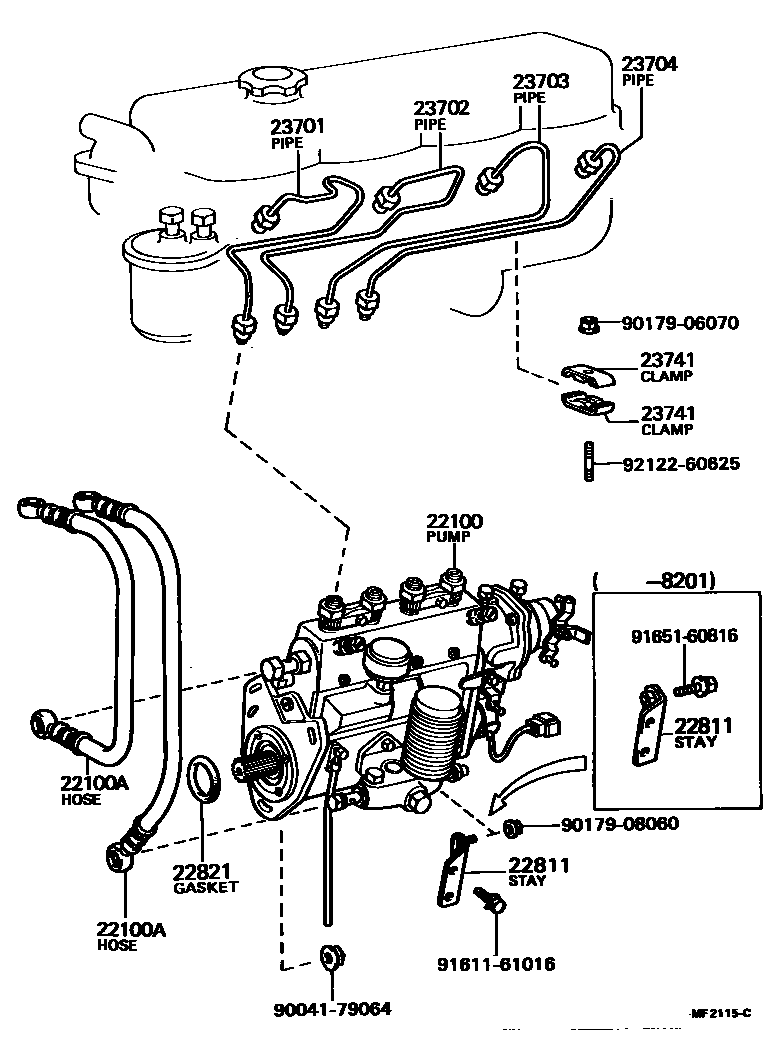

Toyota DYNA — INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78030i1W..WU40¥375,000198304-198308

sub22010-78031¥374,000

main22010-78031i1W..WU40,50¥374,000198308-198408

sub22010-78021

main22010-78040i1W..WU40¥386,000198304-198308

HIGH ALTITUDE SPEC

sub22010-78041

main22010-78041i1W..WU40,50198308-198408

HIGH ALTITUDE SPEC

main22100-47060iH..HU30..GEN197708-198008

W/EDIC

main22100-47070iH..HU30..GEN¥261,000197708-198008

W/EDIC & HAC

sub22100-47110

main22100-47080iH..HU30..GEN197708-198104

main22100-47090iH..HU30..GEN197708-198104

W/HAC

main22100-47110iH..HU30..ARL197708-198008

W/EDIC & HAC

main22100-47110iH..HU30..GEN198008-198104

W/EDIC & HAC

main22100-47200iH..HU30198008-198104

W/EDIC

main22100-47200iH..HU30..ARL197708-198008

W/EDIC

main22100-48041i2J..JU20197708-197904

W/EDIC & HAC

main22100-48061i2J..JU20197708-197904

W/HAC

main22100-56041iB..BU2#,30..GEN¥235,000197708-197804

W/EDIC

sub22100-57050¥219,000

main22100-56051iB..BU2#,30..GEN197708-197904

W/EDIC & HAC

main22100-56061iB..BU2#,30..GEN197708-197804

main22100-56062iB..BU2#,30..GEN¥224,000197804-197904

sub22100-56102¥224,000

main22100-56071iB..BU2#,30..GEN197708-197804

W/HAC

main22100-56072iB..BU2#,30..GEN¥235,000197804-197904

W/HAC

sub22100-56112¥237,000

main22100-56081iB..BU2#,30197904-198201

W/EDIC

main22100-56081iB..BU20,30..EUR197708-197904

W/EDIC

main22100-56082iB..BU20,25,30¥217,000198201-198411

W/EDIC

main22100-56092iB..BU2#,30..GEN,GHI197904-198201

W/EDIC & HAC

main22100-56093iB..BU20,25,30..GEN,GHI¥216,000198201-198411

W/EDIC & HAC

main22100-56101iB..BU20,30..EUR¥261,000197708-197804

sub22100-56061

main22100-56102iB..BU20,30..EUR¥224,000197804-197904

sub22100-57033

main22100-56102iB..BU2#,30¥224,000197904-198201

sub22100-57033

main22100-56103iB..BU20,25,30..EUR,GEN,GHI¥237,000198201-198411

sub22100-58081¥237,000

main22100-56112iB..BU2#,30..GEN¥237,000197904-198201

W/HAC

sub22100-57043

main22100-56113iB..BU20,25,30..GEN,GHI¥237,000198201-198411

W/HAC

sub22100-58061

main22100-57050iB..BU2#,30..GEN¥219,000197804-197904

W/EDIC

sub22100-57011¥219,000

main22100-57050i2B..BU31..CBU¥219,000198104-198201

W/EDIC

sub22100-57011¥219,000

main22100-57051i2B..BU31..CBU198201-198204

W/EDIC

sub22100-58011

main22100-58020i3B..BU32¥180,000198104-198201

W/EDIC

main22100-58021i3B..BU32,40;2B..BU31..IV3¥217,000198201-198302

W/EDIC

main22100-58021i2B,3B..BU23,31,32,36,40¥217,000198302-198408

W/EDIC

main22100-58060i3B..BU32..GEN198104-198201

W/HAC

main22100-58061i3B..BU32,40..GEN198201-198302

W/HAC

main22100-58061i3B..BU32,36..GEN198302-198408

W/HAC

main22100-58070i3B..BU32..GEN198104-198201

W/EDIC & HAC

main22100-58071i3B..BU32,36,40..GEN¥213,000198201-198408

W/EDIC & HAC

sub22100-58072¥216,000

main22100-58080i3B..BU32..GEN198104-198201

main22100-58081i3B..BU32,36..GEN¥237,000198302-198408

main22100-58081i3B..BU32,40..GEN¥237,000198201-198302

main22100-68020i2H..HU40,50198204-198408

W/EDIC

main22100-68040i2H..HU40,50..GEN¥239,000198210-198408

W/EDIC & HAC

sub22100-68041¥241,000

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-47020iH..HU30197708-198104

FEED PUMP

main23801-48010i2J..JU20¥1,990197708-197904

FEED PUMP

main23801-56030iB..BU2#,30¥3,680197708-198008

L=370

main23801-56040iB,2B,3B..BU2#,3#,40¥4,300198008-198408

L=312,HOSE

main23801-56060iB..BU20,30¥3,510198408-198411

PIPE L=300,L=300,PIPE

main23801-68030i2H..HU40,50¥2,290198204-198408

PIPE L=336,FEED PUMP TO FILTER

main23802-47020iH..HU30197708-198104

INJECTION PUMP

main23802-48010i2J..JU20¥1,950197708-197904

INJECTION PUMP

main23802-56030iB..BU2#,30¥3,450197708-198008

L=275

main23802-56040iB,2B,3B..BU2#,3#,40¥3,520198008-198411

HOSE L=210,L=210

main23802-68020i2H..HU40,50¥2,060198204-198408

PIPE L=216,FILTER TO PUMP BODY

main23814-78010i1W..WU40,50198304-198408

MAIN HOSE TO FEED PUMP

sub23814-78011¥3,330

main23815-78010i1W..WU40,50¥1,000198304-198408

FEED PUMP TO FILTER

main23826-78010i1W..WU40,50¥5,500198304-198408

FILTER TO INJECTION PUMP

subS2380-64180¥5,400

22811STAY, INJECTION PUMP, NO.1

main22811-47011iH..HU30197708-198104

main22811-48010i2J..JU20197708-197904

main22811-56010iB,2B,3B..BU2#,3#¥790197708-198201

main22811-56011iB,2B,3B..BU2#,3#,40¥940198201-198411

main22811-68010i2H..HU40,50¥870198204-198408

main22811-78010i1W..WU40,50¥940198304-198408

subS2234-32060

22821GASKET, INJECTION PUMP

main90301-77001iB,2B,3B..BU2#,3#,40¥910197811-198411

main90301-78177iH..HU30¥810197708-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-47012iH..HU30197708-198104

main23701-48011i2J..JU20¥2,220197708-197904

main23701-56010iB..BU2#,30¥2,100197708-198008

main23701-56030iB,2B,3B..BU2#,3#,40¥2,640198008-198411

main23701-68010i2H..HU40,50¥3,030198204-198408

main23701-78010i1W..WU40,50¥2,910198304-198408

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-47012iH..HU30197708-198104

main23702-48011i2J..JU20¥2,220197708-197904

main23702-56010iB..BU2#,30¥2,100197708-198008

main23702-56030iB,2B,3B..BU2#,3#,40¥2,640198008-198411

main23702-68010i2H..HU40,50¥3,030198204-198408

main23702-78010i1W..WU40,50¥2,910198304-198408

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-47012iH..HU30197708-198104

main23703-48011i2J..JU20¥2,220197708-197904

main23703-56020iB,2B,3B..BU2#,3#,40¥2,330198008-198411

main23703-56030iB..BU2#,30¥2,060197708-198008

main23703-68010i2H..HU40,50¥2,800198204-198408

main23703-78010i1W..WU40,50¥2,910198304-198408

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-47012iH..HU30197708-198104

main23704-48011i2J..JU20¥2,220197708-197904

main23704-56020iB,2B,3B..BU2#,3#,40¥2,420198008-198411

main23704-56030iB..BU2#,30¥2,060197708-198008

main23704-68010i2H..HU40,50¥2,800198204-198408

main23704-78010i1W..WU40,50¥2,910198304-198408

23741CLAMP, INJECTION PIPE, NO.1

main23741-46010iH..HU30¥710197708-198104

2 WAY

main23741-48010i2H..HU40,50¥750198204-198408

main23741-48010iH..HU30¥750198012-198104

main23741-56010iH..HU30¥450197708-198012

main23741-56010iB,2B,3B..BU2#,3#,40¥450198012-198411

main90929-01058i1W..WU40,50¥390198304-198408

subS7990-41900¥570

9004179064

main90041-79064¥180

9017906070

main90179-06070¥180

9017908060

main90179-08060¥140

9161161016

main91611-61016¥270

9165160816

main91651-60816¥100

9212260625

main92122-60625¥130

15 parts on this diagram · 5 diagrams in section
