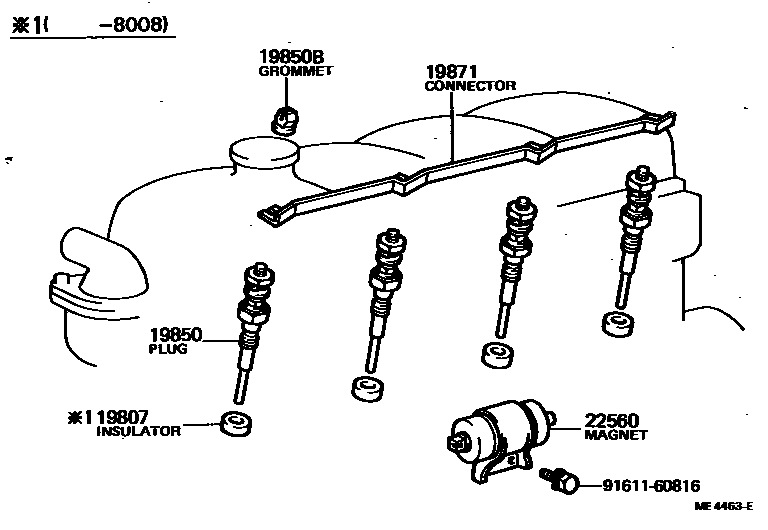

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0005 1 0006 1

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010iB..BU2#,30¥310197708-198008

19850PLUG ASSY, GLOW

main19850-56012i2J..JU20¥3,960197708-198008

*BV-GV=24V-20.5V,*24V-20.5V

sub19850-68040¥4,180

sub90189-04024¥90

main19850-56022iB..BU2#,30..ARL,GEN¥3,450197708-198008

*12V-8.5V

sub19850-68030¥3,790

sub90189-04024¥90

main19850-68030iB,2B,3B..BU2#,3#,40..ARL,GEN,GHI¥3,790198008-198411

*12V-8.5V

main19850-68040iB..BU25,30..LHD..5H..(GEN,GHI)¥4,180198008-198408

*24V-20.5V

main19850-68040i3B..BU40..LHD¥4,180198302-198408

*24V-20.5V

main19850-78010i1W..WU40..LHD¥3,600198304-198408

*BV-GV=24V-14V,24V

sub19850-78011¥3,610

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1W..WU40..LHD¥90198304-198408

24V

main90189-04024iB,2B,3B..BU2#,3#,40¥90198008-198411

main90189-05011iB..BU2#,30¥210197904-198008

main90189-06004iH..HU30¥200197708-197904

main90189-06004iH..HU30¥200197904-198008

19871CONNECTOR, GLOW PLUG NO.1

main19871-47011iH..HU30¥1,090197708-198104

main19871-48010i2J..JU20¥1,560197708-197904

main19871-56010iB..BU2#,30¥1,470197708-198008

sub19871-56020¥1,650

main19871-56020iB,2B,3B..BU2#,3#,40¥1,650198008-198411

main19871-68011i2H..HU40,50¥2,600198204-198408

main19871-78010i1W..WU40..LHD¥370198304-198408

24V

sub19871-78021

22560MAGNET ASSY, OVER INJECTION

main22560-48010i2J..JU20¥12,200197708-197904

12V

main22560-48010iH..HU30..GEN¥12,200197708-198104

main22560-48020i2J..JU20¥11,500197708-197904

24V

main22560-56030iB..BU20..LHD..5H..WT..GEN¥11,700198008-198408

24V

main22560-56030iB..BU20,30..EUR¥11,700197708-198408

24V

main22560-56040iB,3B..BU20,25,30,32,36..GEN,GHI¥11,900198302-198411

12V

main22560-56040iB,3B..BU2#,30,32,40..GEN,GHI¥11,900197708-198302

12V

9161160816

main91611-60816¥230

6 parts on this diagram · 5 diagrams in section
