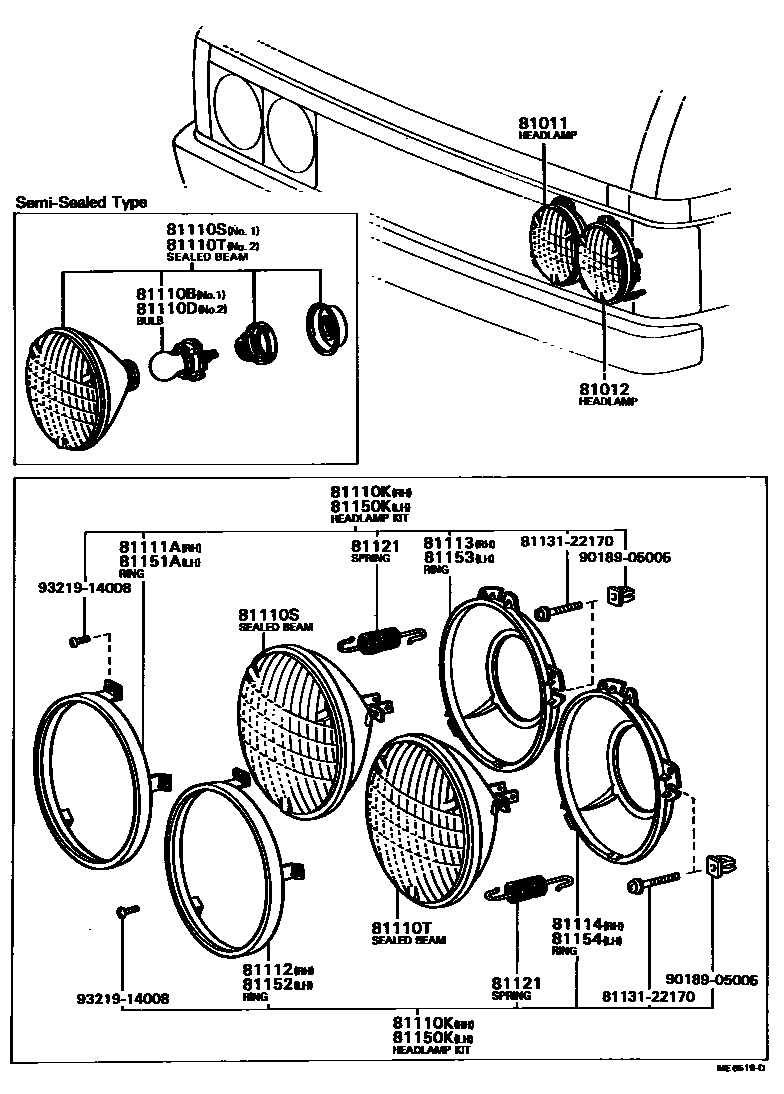

Toyota DYNA — HEADLAMP

81011HEADLAMP SUB-ASSY, NO.1

main81011-39025iBU2#,30,HU30,RU2#,30..ARL,GEN¥6,000197708-197904

12V

sub81011-39085¥6,600

main81011-39035iRU20,30..EUR¥7,100197904-198408

12V,WHITE,SEMI-SEALED

sub81011-95402¥6,500

main81011-39035iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥7,100197708-198408

12V,WHITE,SEMI-SEALED

sub81011-95402¥6,500

main81011-39045iBU40,WU40..LHD¥7,100198302-198408

24V,WHITE,SEMI-SEALED

sub81011-95403¥6,500

main81011-39045iBU20,30,JU20..EUR¥7,100197708-198104

24V,WHITE,SEMI-SEALED

sub81011-95403¥6,500

main81011-39045iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥7,100198104-198408

24V,WHITE,SEMI-SEALED

sub81011-95403¥6,500

main81011-39055iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥7,100197708-198408

12V,YELLOW,SEMI-SEALED

sub81011-95404¥6,500

main81011-39065iBU20,30,JU20..EUR¥7,100197708-198104

24V,YELLOW,SEMI-SEALED

sub81011-95405¥6,500

main81011-39065iBU40,WU40..LHD¥7,100198302-198408

24V,YELLOW,SEMI-SEALED

sub81011-95405¥6,500

main81011-39065iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥7,100198104-198408

24V,YELLOW,SEMI-SEALED

sub81011-95405¥6,500

main81011-39075iBU40,WU40..LHD¥6,600198302-198408

24V

sub81011-95406¥7,400

main81011-39075iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥6,600198104-198408

24V

sub81011-95406¥7,400

main81011-39085iBU2#,30,HU30,RU2#,30..ARL,GEN¥6,600197904-198008

12V

sub81011-95407¥9,200

main81011-39085iBU20,30,32,36,40,HU30,40,50,RU20,30,WU40..RHD¥6,600198008-198411

12V

sub81011-95407¥9,200

main81011-39095iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD..(GEN,GHI)¥7,800198008-198408

12V

main81011-39105iBU20,30..EUR¥7,100198008-198408

24V,W/HEADLAMP CLEANER

main81011-39115iBU20,32,36,HU40,50,RU20,30..ARL¥13,800198108-198408

12V,HALOGEN

sub81011-95411¥8,500

81012HEADLAMP SUB-ASSY, NO.2

main81012-39025iBU20,30,HU30,RU2#,30..RHD¥6,000197708-197904

12V

sub81012-39105¥6,600

main81012-39035iBU2#,30,HU30,RU2#,30..LHD..GEN¥6,000197708-197904

12V

sub81012-39115¥7,000

main81012-39055iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥7,100197708-198408

12V,WHITE,SEMI-SEALED

sub81012-95404¥6,500

main81012-39055iRU20,30..EUR¥7,100197904-198408

12V,WHITE,SEMI-SEALED

sub81012-95404¥6,500

main81012-39065iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥7,100198104-198408

24V,WHITE,SEMI-SEALED

sub81012-95405¥6,500

main81012-39065iBU20,30,JU20..EUR¥7,100197708-198104

24V,WHITE,SEMI-SEALED

sub81012-95405¥6,500

main81012-39065iBU40,WU40..LHD¥7,100198302-198408

24V,WHITE,SEMI-SEALED

sub81012-95405¥6,500

main81012-39075iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥7,100197708-198408

12V,YELLOW,SEMI-SEALED

sub81012-95406¥6,500

main81012-39085iBU40,WU40..LHD¥7,100198302-198408

24V,YELLOW,SEMI-SEALED

sub81012-95407¥6,500

main81012-39085iBU20,30,JU20..EUR¥7,100197708-198104

24V,YELLOW,SEMI-SEALED

sub81012-95407¥6,500

main81012-39085iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥7,100198104-198408

24V,YELLOW,SEMI-SEALED

sub81012-95407¥6,500

main81012-39105iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥6,600197904-198411

12V

sub81012-95409¥8,000

main81012-39115iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD..(GEN,GHI)¥7,000197904-198408

12V

sub81012-95411¥9,200

main81012-39125iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥7,100198104-198408

24V

sub81012-95410¥6,300

main81012-39125iBU40,WU40..LHD¥7,100198302-198408

24V

sub81012-95410¥6,300

main81012-39135iBU20,30..EUR¥7,100198008-198408

24V,W/HEADLAMP CLEANER

main81012-39145iBU20,32,36,HU40,50,RU20,30..ARL¥13,800198108-198408

12V,HALOGEN

sub81012-95413¥8,500

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iRU20,30..EUR¥1,500197904-198408

12V 45/40W,WHITE,12V,45/40W WHITE

main90981-13013iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥1,500197708-198408

12V 45/40W,WHITE,12V,45/40W WHITE

main90981-13014iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥2,000197708-198408

12V 45/40W,YELLOW,12V,45/40W YELLOW

sub90981-13H00

main90981-17008iBU20,30,JU20..EUR¥1,500197708-198104

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17008iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥1,500198104-198408

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17008iBU40,WU40..LHD¥1,500198302-198408

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17009iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥2,000198104-198408

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

main90981-17009iBU40,WU40..LHD¥2,000198302-198408

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

main90981-17009iBU20,30,JU20..EUR¥2,000197708-198104

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥1,500197708-198408

12V 45/40W,WHITE,12V,45/40W WHITE

main90981-13013iRU20,30..EUR¥1,500197904-198408

12V 45/40W,WHITE,12V,45/40W WHITE

main90981-13014iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥2,000197708-198408

12V 45/40W,YELLOW,12V,45/40W YELLOW

sub90981-13H00

main90981-17008iBU20,30,JU20..EUR¥1,500197708-198104

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17008iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥1,500198104-198408

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17008iBU40,WU40..LHD¥1,500198302-198408

24V 55/50W,WHITE,24V 55/50W WHITE

main90981-17009iBU20,30,JU20..EUR¥2,000197708-198104

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

main90981-17009iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥2,000198104-198408

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

main90981-17009iBU40,WU40..LHD¥2,000198302-198408

24V 55/50W,YELLOW,24V 55/50W YELLOW

sub90981-17H00

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-36010iBU20,32,36,HU40,50,RU20,30..ARL¥1,890198108-198408

HEADLAMP=81011(INNER),HALOGEN

main04818-36010iBU20,32,36,HU40,50,RU20,30..ARL¥1,890198108-198408

HEADLAMP=81012(OUTER),HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-02018iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥3,480197708-198408

12V 45/40W,*WSB,12V,WHITE,SEMI-SEALED

main90981-02018iRU20,30..EUR¥3,480197904-198408

12V 45/40W,*WSB,12V,WHITE,SEMI-SEALED

main90981-02020iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥3,920197708-198408

12V 45/40W,*YSB,12V,YELLOW,SEMI-SEALED

sub90981-02H00

main90981-02027iBU2#,30,HU30,RU2#,30..ARL,GEN¥2,010197708-197904

12V 37.5W,TOSHIBA

sub90981-02039¥2,440

main90981-02039iBU20,30,32,36,40,HU30,40,50,RU20,30,WU40..RHD¥2,440198008-198411

12V 37.5W,*WB,12V 37.5W,IKI

sub90981-02011¥3,650

main90981-02039iBU2#,30,HU30,RU2#,30..ARL,GEN¥2,440197904-198008

12V 37.5W,*WB,12V 37.5W,IKI

sub90981-02011¥3,650

main90981-02044iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD..(GEN,GHI)¥1,840198008-198408

12V 37.5W,IKI

sub90981-02011¥3,650

main90981-02047iBU20,32,36,HU40,50,RU20,30..ARL¥4,630198108-198408

12V 37.5W,*HAL,*WB,12V 37.5W,HALOGEN

main90981-08010iBU40,WU40..LHD¥2,630198302-198408

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08010iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥2,630198104-198408

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08010iBU20,30,JU20..EUR¥2,630197708-198104

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08012iBU20,30,JU20..EUR¥6,900197708-198104

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H00

main90981-08012iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥6,900198104-198408

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H00

main90981-08012iBU40,WU40..LHD¥6,900198302-198408

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H00

main90981-08017iBU40,WU40..LHD¥2,440198302-198408

24V 40W,*WB,24V

sub90981-08007¥2,440

main90981-08017iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥2,440198104-198408

24V 40W,*WB,24V

sub90981-08007¥2,440

main90981-08020iBU20,30..EUR¥6,700198008-198408

24V 55/50W,*WSB,24V,W/HEADLAMP CLEANER

81110TSEALED BEAM UNIT, NO.2

main90981-02019iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥3,480197708-198408

12V 45/40W,*WSB,12V,WHITE,SEMI-SEALED

main90981-02019iRU20,30..EUR¥3,480197904-198408

12V 45/40W,*WSB,12V,WHITE,SEMI-SEALED

main90981-02021iBU20,25,30,32,36,40,HU30,RU2#,30,WU40..LHD..(GEN,GHI)¥3,920197708-198408

12V 45/40W,*YSB,12V,YELLOW,SEMI-SEALED

sub90981-02H01

main90981-02028iBU20,30,HU30,RU2#,30..RHD¥2,010197708-197904

12V 37.5/50W,TOSHIBA

sub90981-02040¥2,440

main90981-02029iBU2#,30,HU30,RU2#,30..LHD..GEN¥1,840197708-197904

12V 37.5/50W,TOSHIBA

sub90981-02041¥2,020

main90981-02040iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥2,440197904-198411

12V 37.5/50W,*WB,12V 37.5/50W,IKI

sub90981-02012¥3,640

main90981-02041iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD..(GEN,GHI)¥2,020197904-198408

12V 37.5/50W,*WB,12V 37.5/50W,IKI

sub90981-02013¥2,060

main90981-02048iBU20,32,36,HU40,50,RU20,30..ARL¥6,600198108-198408

12V37.5/60W,*HAL,*WB,12V 37.5/60W,HALOGEN

main90981-08011iBU40,WU40..LHD¥2,630198302-198408

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08011iBU20,30,JU20..EUR¥2,630197708-198104

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08011iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥2,630198104-198408

24V 55/50W,*WSB,24V,WHITE,SEMI-SEALED

main90981-08013iBU20..ST..EUR;BU20,25,30..LHD..5H..WT¥6,900198104-198408

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H01

main90981-08013iBU20,30,JU20..EUR¥6,900197708-198104

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H01

main90981-08013iBU40,WU40..LHD¥6,900198302-198408

24V 55/50W,*YSB,24V,YELLOW,SEMI-SEALED

sub90981-08H01

main90981-08019iBU40,WU40..LHD¥2,020198302-198408

24V 40/60W,*WB,24V

sub90981-08009¥2,060

main90981-08019iBU20,25,30..LHD..5H..WT..(GEN,GHI)¥2,020198104-198408

24V 40/60W,*WB,24V

sub90981-08009¥2,060

main90981-08021iBU20,30..EUR¥6,700198008-198408

24V 55/50W,*WSB,24V,W/HEADLAMP CLEANER

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥530197901-198411

main81111-20110iBU2#,30,HU30,JU20,RU2#,30¥600197708-197901

sub81111-14261¥530

main81111-20280iBU20,30..EUR¥960198008-198408

W/HEADLAMP CLEANER

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥530197901-198411

main81111-20110iBU2#,30,HU30,JU20,RU2#,30¥600197708-197901

sub81111-14261¥530

main81111-20280iBU20,30..EUR¥960198008-198408

W/HEADLAMP CLEANER

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥700197708-198411

main81113-20170iBU20,30..EUR¥1,130198008-198408

W/HEADLAMP CLEANER

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20170iBU20,30..EUR¥1,270198008-198408

W/HEADLAMP CLEANER

main81114-20210iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥920197708-198411

81121SPRING, HEADLAMP TENSION

main81112-95410iBU20,30..EUR¥260198008-198408

W/HEADLAMP CLEANER

main90506-16017iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥270197708-198411

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04817-36010iBU20,32,36,HU40,50,RU20,30..ARL¥1,890198108-198408

HEADLAMP=81011(INNER),HALOGEN

main04818-36010iBU20,32,36,HU40,50,RU20,30..ARL¥1,890198108-198408

HEADLAMP=81012(OUTER),HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥530197901-198411

main81111-20110iBU2#,30,HU30,JU20,RU2#,30¥600197708-197901

sub81111-14261¥530

main81111-20280iBU20,30..EUR¥960198008-198408

W/HEADLAMP CLEANER

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥530197901-198411

main81111-20110iBU2#,30,HU30,JU20,RU2#,30¥600197708-197901

sub81111-14261¥530

main81111-20280iBU20,30..EUR¥960198008-198408

W/HEADLAMP CLEANER

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-14100iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥700197708-198411

main81113-20170iBU20,30..EUR¥1,130198008-198408

W/HEADLAMP CLEANER

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-20170iBU20,30..EUR¥1,270198008-198408

W/HEADLAMP CLEANER

main81114-20210iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥920197708-198411

8113122170SCREW, HEADLAMP ADJUSTING

main81131-22170¥330

9018905005

main90189-05005¥120

9321914008

main93219-14008¥130

20 parts on this diagram · 1 diagram in section
