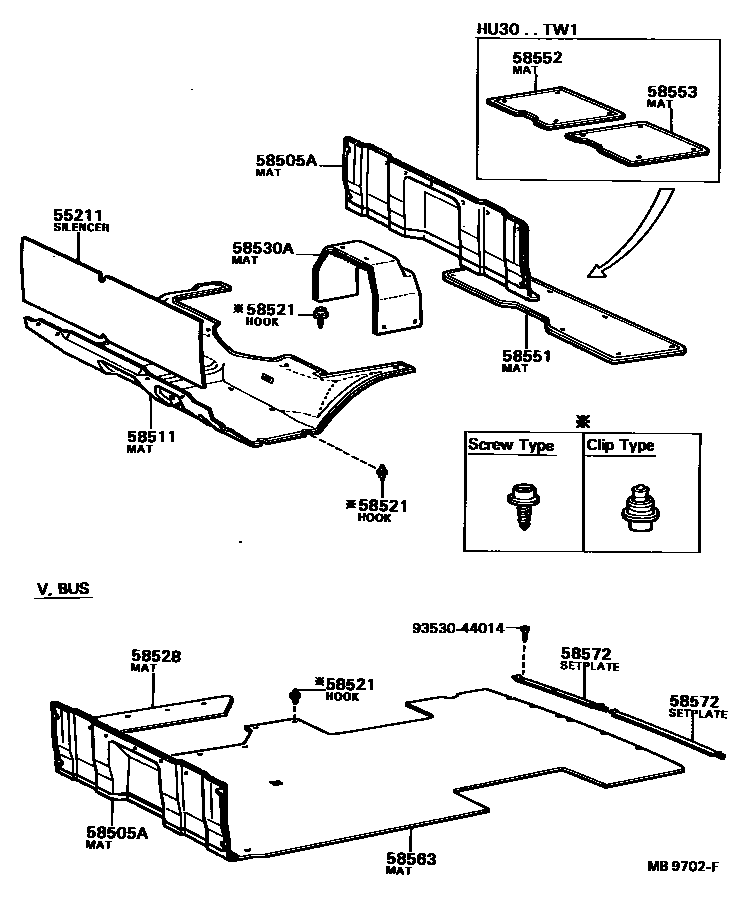

Toyota DYNA — FLOOR MAT & SILENCER PAD

0001 1 0002 1

55211SILENCER, FRONT PANEL

main55211-95401iBU2#,30,HU30,JU20,RU2#,30¥3,870197708-198002

sub55211-95403¥3,870

main55211-95402iBU36,40,HU40,50,WU40,50198204-198408

main55211-95403iBU2#,30,31,32,HU30,RU2#,30¥3,870198002-198411

58505AMAT SUB-ASSY, HEADER

main58505-92605iBU20,JU20,RU20..V¥28,800197708-198008

MICRO BUS SPEC

sub58505-92607

main58505-92606iBU20,RU20..HRF,SRF198008-198204

main58505-92607iBU20,RU20..SRF198204-198408

main58505-95401iBU32..TS198008-198204

main58505-95402iBU32..TS198204-198408

58511MAT, FLOOR, FRONT

main58510-95416iBU20,30,HU30,RU2#,30..4F,5F¥20,900197708-198008

T=1.2

sub58510-95435

main58510-95418iBU20,30,JU20..EUR¥29,400197708-198008

sub58510-95436

main58510-95420iBU20,30,HU30,RU2#,30..RHD..GEN¥29,400197708-198008

T=1.2

sub58510-95433

main58510-95421iBU2#,30,HU30,RU2#,30..LHD..(4H,5H)..GEN¥29,400197708-198008

T=1.2

sub58510-95434

main58510-95424iBU20,HU30,RU2#,30..ARL¥29,400197708-198008

sub58510-95437

main58510-95425iBU20,30,HU30,RU2#,30..4F,5F¥30,000197708-198008

T=2.0

sub58510-95438

main58510-95426iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

T=2.0

sub58510-37070¥29,400

main58510-95427iBU2#,30,HU30,RU2#,30..LHD..(4H,5H)..GEN197708-198008

T=2.0

sub58510-37080¥29,400

main58510-95433iBU20,30,RU20,30..RHD..GEN198008-198104

T=1.2

main58510-95434iBU2#,30,HU30,RU20,30..LHD..(4H,5H)..GEN198008-198104

T=1.2

main58510-95435iBU20,30,HU30,RU20,30..(4F,5F)..GEN198008-198104

T=1.2

main58510-95436iBU20,30..EUR198008-198104

T=2.0

main58510-95437iBU20,HU30,RU20,30..ARL198008-198104

T=2.0

main58510-95438iRU20,30..EUR198008-198104

main58510-95441iBU20,30..WT..EUR..IV3198008-198104

T=2.0,W/HEADLAMP CLEANER

main58510-95442iBU20,RU20,30..ARL¥30,100198104-198204

sub58510-95463

main58510-95443iBU20,3#,RU20,30..LHD..5F..(GEN,GHI)¥29,500198104-198204

sub58510-95461

main58510-95446iBU20,30,RU20,30..RHD..5H..(GEN,GHI)¥29,500198104-198204

sub58510-95459¥29,500

main58510-95447iBU2#,30,32,RU20,30..LHD..(4H,5H)..(GEN,GHI)¥29,500198104-198204

sub58510-95460

main58510-95448iBU20,30..EUR¥30,100198104-198204

sub58510-95462¥30,100

main58510-95449iRU20,30..EUR¥30,100198104-198204

sub58510-95464¥30,100

main58510-95450iBU20,30..WT..EUR..IV3¥30,100198104-198204

T=2.0,W/HEADLAMP CLEANER

sub58510-95467

main58510-95451iBU32..ARL¥30,100198104-198204

sub58510-95468

main58510-95452iBU30..RHD..5F¥29,500198104-198204

sub58510-95469

main58510-95454iBU40,HU40,50..GEN198204-198302

main58510-95455iHU50..ARL198204-198302

main58510-95459iBU20,30,RU20,30..RHD..5H..(GEN,GHI)¥29,500198204-198408

main58510-95460iBU2#,30,RU20,30..LHD..(4H,5H)..(GEN,GHI)198204-198408

main58510-95461iBU20,30,31,32,RU20,30..LHD..5F..(GEN,GHI)198204-198408

main58510-95462iBU20,30..EUR¥30,100198204-198408

main58510-95463iBU20,RU20,30..ARL198204-198302

main58510-95464iRU20,30..EUR¥30,100198204-198408

main58510-95467iBU20,30..EUR198204-198408

T=2.0,W/HEADLAMP CLEANER

main58510-95468iBU32..ARL198204-198302

main58510-95469iBU20,30..RHD..5F..(GEN,GHI)198204-198411

main58510-95470iBU36,40,WU40,50..LHD198302-198408

main58510-95471iBU20,32,RU20,30..ARL¥28,700198302-198408

main58510-95474iBU40,HU40,50,WU40..RHD..GEN¥26,400198302-198408

main58510-95475iBU36,HU40,50..ARL198302-198408

main58510-95476iBU36..RHD..CBU198302-198408

58521HOOK, MALE, NO.1

main90530-04007iBU20,RU20..HRF,SRF¥120198008-198408

SCREW TYPE

main90530-04007iBU2#,30,HU30,JU20,RU2#,30¥120197708-198008

SCREW TYPE

main90530-06001iBU2#,30,40,HU30,40,50,JU20,RU2#,30,WU40,50¥110197708-198411

CLIP TYPE

58528MAT, REAR DOOR STEP

main58543-92605iBU20,JU20,RU20..LHD..V197711-198008

RH

sub58543-92607

main58543-92606iBU20,RU20..LHD..(HRF,SRF)¥2,350198008-198204

RH

sub58543-92607

main58543-92607iBU20,RU20..LHD..SRF198204-198408

RH

main58544-92605iBU20,RU20..RHD..SRF¥2,060197711-198008

LH

sub58544-92607

main58544-92606iBU20,RU20..RHD..SRF¥2,350198008-198204

LH

sub58544-92607

main58544-92607iBU20,RU20..RHD..SRF198204-198408

LH

58530AMAT ASSY, TRANSMISSION COVER

main58530-95401iHU30..TS197708-197908

main58530-95402iHU30..TS198008-198104

58551MAT, FLOOR, REAR

main58551-95400iRU20,30..TW1¥11,100197708-198008

sub58551-95403¥11,200

main58551-95403iRU20,30..TW1..GEN¥11,200198008-198204

T=1.2

sub58551-95405

main58551-95405iBU32,RU20,30..TW1..(ARL,EUR)198008-198204

T=2.0

main58551-95406iRU20,30..TW1..GEN198204-198408

T=1.2

main58551-95407iBU32,RU20,30..TW1..(ARL,EUR)198204-198408

T=2.0

58552MAT, REAR SEAT SIDE, RH

main58551-95401iHU30..TS197708-197908

main58551-95404iHU30..TS198008-198104

58553MAT, REAR SEAT SIDE, LH

main58552-95400iHU30..TS197708-197908

main58552-95401iHU30..TS198008-198104

58563MAT, REAR FLOOR

main58523-92120iBU20,RU20..RHD..VSG197708-198008

W/PARALLEL SEAT

sub58523-92125

main58523-92121iBU20,RU20..LHD..VSG..GEN197708-198008

W/PARALLEL SEAT

sub58523-92130

main58523-92122iBU20,RU20..LHD..VSG..GEN197708-198008

W/COMBINATION SEAT,RR

sub58523-92274

main58523-92123iBU20,RU20..RHD..VSG197708-198008

W/COMBINATION SEAT,FR

sub58523-92127

main58523-92124iBU20,RU20..LHD..VSG..GEN197708-198008

W/COMBINATION SEAT,FR

sub58523-92275

main58523-92125iBU20,RU20..RHD..VSG198008-198204

W/PARALLEL SEAT

main58523-92126iBU20,RU20..LHD..VSG198008-198104

W/PARALLEL SEAT

main58523-92126iBU20,RU20..BUS198104-198204

W/PARALLEL SEAT

main58523-92127iBU20,RU20..RHD..VSG198008-198204

W/COMBINATION SEAT,FR

main58523-92128iBU20,RU20..BUS198104-198204

W/COMBINATION SEAT,RR

main58523-92128iBU20,RU20..VSG198008-198104

W/COMBINATION SEAT,RR

main58523-92129iBU20,RU20..LHD..VSG198008-198104

W/COMBINATION SEAT,FR

main58523-92129iBU20,RU20..LHD..VSG198008-198104

W/CONBINATION SEAT,FR

main58523-92129iBU20,RU20..BUS198104-198204

W/COMBINATION SEAT,FR

main58523-92130iBU20,RU20..BUS198204-198408

W/PARALLEL SEAT

main58523-92161iBU20,RU20..BUS198104-198204

FR FACED SEAT

main58523-92162iBU20,RU20..BUS198204-198408

FR FACED SEAT

main58523-92274iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT,RR

main58523-92275iBU20,RU20..BUS198204-198408

W/COMBINATION SEAT,FR

main58523-92605iBU20,RU20..RHD..SRF¥46,500197708-198008

T=2.0

sub58523-92610

main58523-92608iBU20,RU20..RHD..SRF198008-198204

T=2.0

main58523-92610iBU20,RU20..RHD..SRF198204-198408

T=1.2

main58523-92615iBU20,JU20,RU20..LHD..V197708-198008

T=2.0

sub58523-92619

main58523-92618iBU20,RU20..LHD..V¥57,600198008-198204

T=2.0

sub58523-92617

main58523-92619iBU20,RU20..LHD..VSG198204-198408

T=1.2

58572SET PLATE, REAR FLOOR MAT, REAR

main51775-92605iBU20,JU20,RU20..HRF,SRF¥2,890197708-198408

RH

main51776-92605iBU20,JU20,RU20..HRF,SRF¥2,890197708-198408

LH

9353044014

main93530-44014¥120

12 parts on this diagram · 2 diagrams in section
