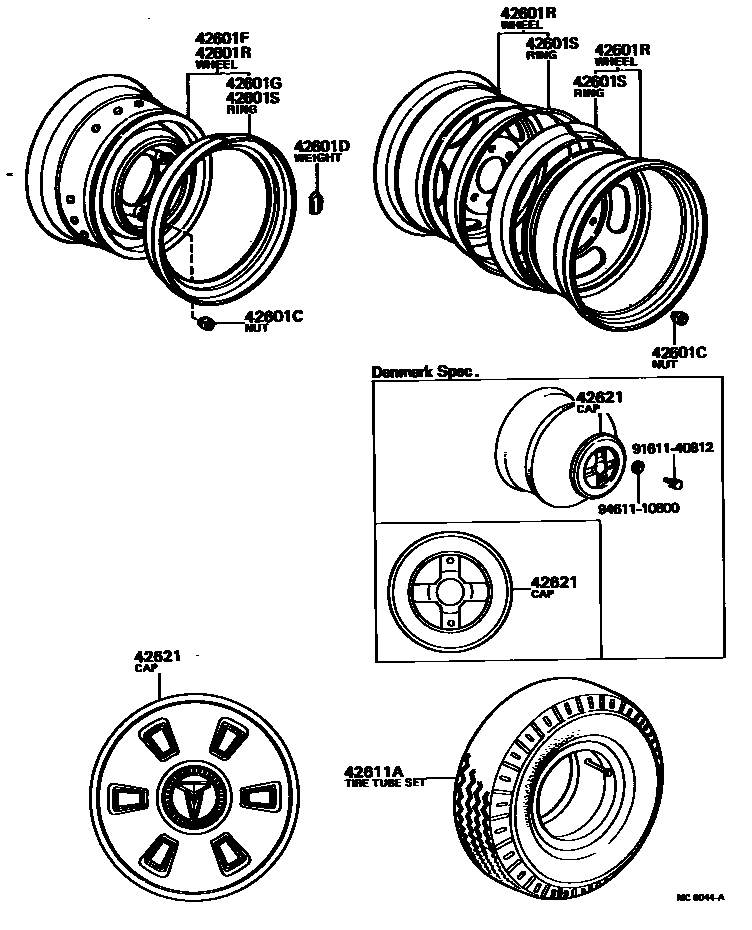

Toyota DYNA — DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main42633-37010iBU40,HU40,50,WU40,50¥710198204-198408

RR,RH

main42633-55030iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥710198008-198411

RR,RH

main42633-55030iBU40,WU40,50..LHD¥710198403-198408

TAIWAN WIDE CAB,RR,RH

main42634-37010iBU40,HU40,50,WU40,50¥710198204-198408

RR,LH

main42634-55030iBU40,WU40,50..LHD¥710198403-198408

TAIWAN WIDE CAB,RR,LH

main42634-55030iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥710198008-198411

RR,LH

main90039-11002iBU40,HU40,50,WU40,50¥470198204-198408

FR,RH

main90039-11003iBU40,HU40,50,WU40,50¥470198204-198408

FR,LH

main90942-01010iBU20,30..T2¥350198302-198408

RR,RH

main90942-01010iBU2#,30,HU30,RU2#,30..WT¥350197708-198008

RR,RH

main90942-01011iBU20,30..T2¥350198302-198408

RR,LH

main90942-01011iBU2#,30,HU30,RU2#,30..WT¥350197708-198008

RR,LH

main90942-01012iBU20,JU20,RU20..ST¥400197708-198411

RR,RH

main90942-01012iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP¥400198008-198411

FR,RH

main90942-01012iBU2#,30,HU30,JU20,RU2#,30¥400197708-198008

FR,RH

main90942-01013iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP¥400198008-198411

FR,LH

main90942-01013iBU2#,30,HU30,JU20,RU2#,30¥400197708-198008

FR,LH

main90942-01013iBU20,JU20,RU20..ST¥400197708-198411

RR,LH

main90942-01023iBU40,WU40,50..LHD¥850198403-198408

TAIWAN WIDE CAB,FR,RH

main90942-01023iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥850198008-198411

FR,RH

main90942-01024iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥850198008-198411

FR,LH

main90942-01024iBU40,WU40,50..LHD¥850198403-198408

TAIWAN WIDE CAB,FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iBU2#,3#,HU30,JU20,RU2#,30¥230197708-198411

20G,20G

sub90942-03079¥370

main90942-03047iBU2#,3#,HU30,JU20,RU2#,30¥250197708-198411

40G,40G

sub90942-03081¥430

main90942-03049iBU2#,3#,HU30,JU20,RU2#,30¥300197708-198411

60G,60G

sub90942-03083¥480

main90942-03050iBU2#,3#,HU30,JU20,RU2#,30¥240197708-198411

30G,30G

sub90942-03080¥380

main90942-03051iBU2#,3#,HU30,JU20,RU2#,30¥320197708-198411

80G,80G

sub90942-03085¥540

main90942-03052iBU2#,3#,HU30,JU20,RU2#,30¥270197708-198411

50G,50G

sub90942-03082¥450

main90942-03053iBU2#,3#,HU30,JU20,RU2#,30¥350197708-198411

100G,100G

sub90942-03086

main90942-03064iBU2#,3#,HU30,JU20,RU2#,30¥310197708-198411

70G,70G

sub90942-03084¥520

main90942-03067iBU40,HU40,50,WU40,50¥260198204-198408

50G,50G

main90942-03068iBU40,HU40,50,WU40,50¥350198204-198408

100G,100G

main90942-03069iBU40,HU40,50,WU40,50¥470198204-198408

150G,150G

main90942-03070iBU40,HU40,50,WU40,50¥620198204-198408

200G

main90942-03071iBU40,HU40,50,WU40,50¥710198204-198408

250G

42601FWHEEL, DISC (FOR FRONT)

main42610-36040iHU30¥13,000197708-198008

5.50F-16,TOPY

main42610-36130iBU2#,30,RU2#,30..WT¥13,000197708-198008

5.50F-16,TOPY

main42610-36140iBU20..BUS;RU20..ST..GEN;BU20..T3..ST..GEN;BU20,30..(T1,T2,VSG,VSP)..GEN¥12,800197708-198411

5.50FX15,5.50F-15,TOPY

main42610-36180iBU20,JU20,RU20..ST¥15,600197708-198411

5.50F-16,TOPY

sub42610-36350¥16,000

main42610-36220iBU25,RU2#,30..WT;BU20,30..T3..WT..(ARL,EUR,GEN)¥13,000198008-198408

5.5F-16,5.50F-16-108,TOPY

main42610-36230iBU23,25,31,32,36,HU30,RU25;BU20,30,RU20,30..(T3,TW1)..WT..GEN¥13,000198008-198411

AFJ 16X5.50F,5.50F-16-115,TOPY

main42610-36230iBU30..GHI¥13,000198104-198411

AFJ 16X5.50F,5-50F-16-115,TOPY

main42610-36270iBU40,HU40,50,WU40,50¥17,500198204-198408

6.00GS-16

sub42610-36272¥17,400

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-35010iJU20;BU20..V..EUR;BU20..ST..GEN;RU20..(4F,4H,5F)..ST;RU20..(TW1,VSG,VSP)..5H..GEN¥2,320197708-198008

5.50F-15 DISC WHEEL,TOPY

main42613-35010iBU20..BUS;RU20..ST..GEN;BU20..T3..ST..GEN;BU20,30..T1,T2,VSG,VSP¥2,320198008-198411

5.50F-15 DISC WHEEL,TOPY

main42613-36010iBU2#,30,HU30,RU2#,30..WT¥2,130197708-198008

5.50F-16 DISK WHEEL,TOPY,GRAY

sub42613-36080¥3,370

main42613-36010iBU20,JU20,RU20..ST¥2,130197708-198411

5.50F-16 DISC WHEEL,TOPY

sub42613-36080¥3,370

main42613-36020iBU20,JU20..ST..EUR¥4,130197708-198008

5.50F-16 DISC WHEEL,CHUOSEIKI

sub42613-60080¥2,610

main42613-36060iJU20;BU20..V..EUR;BU20..ST..GEN;RU20..(4F,4H,5F)..ST;RU20..(TW1,VSG,VSP)..5H..GEN¥3,330197708-198008

5.50F-15 DISC WHEEL,CHUOSEIKI

sub42613-35010¥2,320

main42613-36060iBU20,RU20..ST..GEN¥3,330198008-198411

5.50F-15 DISC WHEEL,CHUOSEIKI

sub42613-35010¥2,320

main42613-36080iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥3,370198008-198411

5.50F-16 DISK WHEEL,TOPY,BLACK

main42613-37020iBU40,HU40,50,WU40,50¥6,500198204-198408

6.00GS-16

42601RWHEEL, DISC (FOR REAR)

main42601-25140iBU20,30..T2¥13,100198302-198408

4.5J-14

main42601-36210iBU20,30..T2¥12,200198302-198408

13X4.5J,4.5J-13

main42610-36040iHU30¥13,000197708-198008

5.50F-16,TOPY

main42610-36130iBU2#,30,RU2#,30..WT¥13,000197708-198008

5.50F-16,TOPY

main42610-36140iBU20,RU20..(T1,T3)..ST..GEN¥12,800198008-198204

5.50FX15,5.50F-15,TOPY

main42610-36140iBU20,RU20..ST..GEN¥12,800197708-198008

5.50FX15,5.50F-15,TOPY

main42610-36140iBU20..BUS;BU20..T3..ST;RU20..ST..GEN;BU20,30..T1,T2,VSG¥12,800198204-198411

5.50FX15,5.50F-15,TOPY

main42610-36160iBU20,RU20..ST..GEN¥18,100197708-198411

6.00GSX15,6.00GS-15,TOPY

main42610-36180iBU20,JU20,RU20..ST¥15,600197708-198411

5.50F-16,TOPY

sub42610-36350¥16,000

main42610-36220iBU25,RU2#,30..WT;BU20,30..T3..WT..(ARL,EUR,GEN)¥13,000198008-198411

5.5F-16,5.50F-16-108,TOPY

main42610-36230iBU23,25,31,32,36,HU30,RU25;BU20,30,RU20,30..(T3,TW1)..WT..GEN¥13,000198008-198411

AFJ 16X5.50F,5.50F-16-115,TOPY

main42610-36230iBU30..GHI¥13,000198104-198411

AFJ 16X5.50F,5-50F-16-115,TOPY

main42610-36270iBU40,HU40,50,WU40,50¥17,500198204-198408

6.00GS-16

sub42610-36272¥17,400

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-35010iBU20,RU20..ST..GEN¥2,320198204-198411

5.50F-15,TOPY

main42613-35010iJU20;RU20..TS..4F..ST;BU20,RU20..(T1,T3)..ST..GEN¥2,320197708-198008

5.50F-15,TOPY

main42613-35010iBU20,RU20..(T1,T3)..ST..GEN¥2,320198008-198204

5.50F-15,TOPY

main42613-35020iBU20,RU20..ST..GEN¥5,400197708-198411

6.00GS-15,TOPY

main42613-36010iBU2#,30,HU30,RU2#,30..WT¥2,130197708-198008

5.50F-16,TOPY,GRAY

sub42613-36080¥3,370

main42613-36010iBU20,JU20,RU20..ST¥2,130197708-198411

5.50F-16,TOPY

sub42613-36080¥3,370

main42613-36020iBU20,JU20..ST..EUR¥4,130197708-198008

5.50F-16,CHUOSEIKI

sub42613-60080¥2,610

main42613-36060iJU20;RU20..TS..4F..ST;BU20,RU20..(T1,T3)..ST..GEN¥3,330197708-198008

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36060iBU20,RU20..(T1,T3)..ST..GEN¥3,330198008-198204

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36060iBU20,RU20..ST..GEN¥3,330198204-198411

5.50F-15,CHUOSEIKI

sub42613-35010¥2,320

main42613-36070iBU20,RU20..ST..GEN¥4,270197708-198411

6.00GS-15,CHUOSEIKI

sub42613-35020¥5,400

main42613-36080iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT¥3,370198008-198411

5.50F-16,TOPY,BLACK

main42613-37020iBU40,HU40,50,WU40,50¥6,500198204-198408

6.00GS-16

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-25030iRU20197807-198408

RR,7.50-15-12,LUG

main42605-25120iBU20,30..T2198302-198408

7.00R-15-8

main42605-36020iBU2#,30,RU2#,30197708-198008

RR,6.50-16-8,LUG

main42605-36020iBU20,RU20,30197708-197711

FR,6.50-16-8,LUG

main42605-36020iBU20,RU2#198204-198408

6.50-16-8,LUG

main42605-36020iBU2#,RU2#,30197711-198204

FR,6.50-16-8,LUG

main42605-36020iBU2#,RU2#,30198008-198204

RR,6.50-16-8,LUG

main42605-36070iBU20,JU20197708-197810

7.00R-16-12,RIB

main42605-36080iRU20197807-198408

FR,7.00-15-8,LUG

main42605-36090iRU30197807-198008

6.50-16-10,NATURAL RUBBER

main42605-36090iBU30,RU30198008-198408

6.50-16-10,NATURAL RUBBER

main42605-36120iBU30198204-198411

RR,6.50R16-10,*(D)

main42605-36120iBU30198204-198302

FR,6.50R16-10,*(D)

main42605-36130iBU30,32198206-198411

7.00R-16-10,RIB

main42605-36150iBU20,30..T2198302-198408

7.00-15-8

main42605-36170iBU20,RU20,30198008-198411

RR,6.50R16-8

main42605-36170iBU20,30,RU20,30198008-198104

FR,6.50R16-8

main42605-36170iBU20,RU20,30198104-198411

FR,6.50R16-8

main42605-36180iBU30198008-198206

6.50R16-10,*(B) & *(T)

main42605-36180iBU20,30,RU20,30198206-198408

6.50R16-10,*(B) & *(T)

main42605-36190iBU20,30..T2198302-198408

175R14-8

main42605-36260iBU40,WU40,50198302-198408

7.50-16-10,LUG,NATURAL RUBBER

main42605-36270iBU40,WU40,50198302-198408

7.50-16-12,LUG,NATURAL RUBBER

main42605-36280iBU40,HU40,50,WU40,50198204-198408

7.50-16-10,RIB

main42605-36290iBU40,HU40,50,WU40,50198204-198408

7.50-16-12,RIB

main98061-60134iBU20,30..T2198302-198408

6.00-13-8

main98061-70153iRU20197708-198104

FR,7.00-15-6,RIB

main98061-70153iBU20,RU20198104-198411

FR,7-00-15-6,RIB

main98061-70155iBU20,JU20,RU20197708-198411

FR,7.00-15-10,RIB

main98061-70155iBU20,JU20197708-198008

FR,7.00-15-10,RIB

main98061-70155iJU20197708-197904

RR,7.00-15-10,RIB

main98061-70164iRU20197708-198408

FR,7.00-16-8,RIB

main98061-70165iBU20198008-198204

RR,7.00-16-10,RIB

main98061-70165iJU20197708-197904

7.00-16-10,RIB

main98061-70165iBU20197904-198204

FR,7.00-16-10,RIB

main98061-70166iBU20,RU20198104-198411

RR,7-00-16-12,RIB

main98061-70166iBU2#,30,RU2#,30198008-198104

RR,7.00-16-12,RIB

main98061-70166iBU20,RU20197708-198411

FR,7.00-16-12,RIB

main98061-75155iBU20,RU20197708-198411

RR,7.50-15-10,RIB

main98061-75155iBU20,RU20197708-198411

FR,7.50-15-10,RIB

main98061-75156iBU20,RU20197708-198302

RR,7.50-15-12,RIB

main98061-75157iBU20,RU20197708-198302

RR,7.50-15-14,RIB

main98061-75165iRU20197708-198408

RR,7.50-16-10,RIB

main98661-70154iBU20,RU20197708-198411

FR,7.00-15-8,RIB

main98961-65164iBU20,25,30,RU2#,30¥15,500198204-198411

6.50-16-8,RIB

main98961-65164iBU2#,RU2#,30¥15,500198008-198204

6.50-16-8,RIB

main98961-65164iBU2#,30,RU2#,30¥15,500197708-198008

6.50-16-8,RIB

main98961-65165iBU20,25,30,RU2#,30197708-198411

6.50-16-10,RIB

main98961-70164iBU32,HU30197708-198408

7.00-16-8,RIB

main98961-70165iBU2#,3#,HU30,RU2#,30198008-198411

7.00-16-10,RIB

main98961-70165iHU30197708-198008

7.00-16-10,RIB

main98961-70166iBU2#,3#,RU2#,30198008-198411

RR,7.00-16-12,RIB

main98961-70166iBU2#,3#,RU2#,30198104-198411

FR,7-00-16-12,RIB

main98961-70166iHU30197708-198104

7.00-16-12,RIB

main98961-70166iBU20,RU20197708-198008

RR,7.00-16-12,RIB

main98964-65164iBU2#,30,RU2#,30197708-198008

6.50-16-8,SNOW

main98964-65164iBU2#,RU2#,30198008-198204

6.50-16-8,SNOW

main98964-65164iBU20,25,30,RU2#,30198204-198411

6.50-16-8,SNOW

main98964-65165iBU20,25,30,RU2#,30197708-198411

6.50-16-10,SNOW

main98966-65164iBU2#,RU2#,30198008-198204

6.50-16-8,LUG

main98966-65164iBU2#,30,RU2#,30197708-198008

6.50-16-8,LUG

main98966-65164iBU20,25,30,RU2#,30198204-198411

6.50-16-8,LUG

main98966-65165iBU20,25,30,RU2#,30197708-198411

6.50-16-10,LUG

42621CAP, WHEEL

main42621-36110iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP¥1,960197708-198411

sub42621-35200¥2,080

main42621-36120iBU20,30..WT..EUR¥3,100197907-198008

FR,DENMARK SPEC

sub42621-25080¥3,110

main42621-36121iBU20,30,RU20,30..WT..EUR¥3,070198008-198408

sub42621-36122¥2,900

9161140812

main91611-40812¥110

9461110800

main94611-10800¥80

10 parts on this diagram · 1 diagram in section
