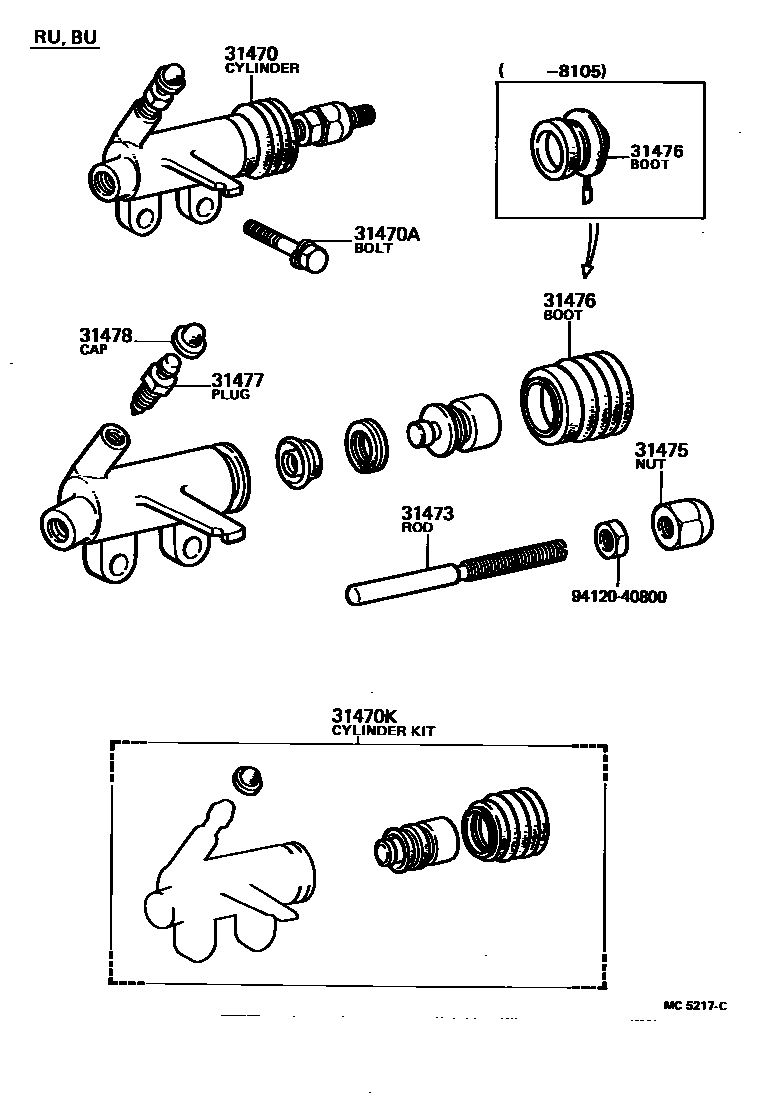

Toyota DYNA — CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36050iBU2#,3#,40¥7,200197708-198411

main31470-36060iJU20¥7,200197708-197904

main31470-36070iHU30¥8,000197708-198104

main31470-36080iRU2#,30¥7,200197708-198408

main31470-36090iHU40,50¥7,000198204-198408

main31470-36100iWU40,50¥7,500198304-198404

sub31470-36190¥7,500

main31470-36190iWU40,50¥7,500198404-198408

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40828iBU2#,3#,40,JU20,RU2#,30¥210197708-198411

sub91611-60828¥110

main91611-41055iHU30,40,50¥210197708-198408

sub91611-61055¥170

main91611-60825iWU40,50¥140198304-198408

*8-1.25PX25-25

sub91611-B0825¥160

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-36020iBU2#,3#,RU2#,30¥1,020197708-198105

main04313-36021iBU2#,3#,40,RU2#,30¥1,030198105-198411

main04313-36030iJU20197708-197904

main04313-36040iHU30,40,50¥820197708-198408

main04313-36050iWU40,50¥570198304-198404

sub04313-36051

main04313-36051iWU40,50198404-198408

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iBU2#,3#,40,RU2#,30¥870198105-198411

main31473-30020iJU20¥740197708-197904

main31473-30021iBU2#,3#,RU2#,30¥800197708-198105

main31473-36010iHU30197708-198104

main31473-36020iWU40,50¥740198304-198404

sub31473-36H00¥740

main31473-36060iWU40,50198404-198408

main31473-60071iHU40,50¥700198204-198408

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iBU2#,3#,40,RU2#,30¥680197708-198411

main31475-57010iHU30¥630197708-198104

main31475-60020iHU40,50,WU40,50¥380198204-198408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iBU2#,3#,RU2#,30¥470197708-198105

main31476-22010iBU2#,3#,40,RU2#,30¥230198105-198411

main31476-30020iJU20¥330197708-197904

main31476-36010iWU40,50¥460198304-198404

main31476-60031iHU30,40,50¥410197708-198408

main31476-60060iWU40,50¥580198404-198408

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥180197708-198411

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥160197708-198411

9412040800

main94120-40800¥90

9 parts on this diagram · 4 diagrams in section
