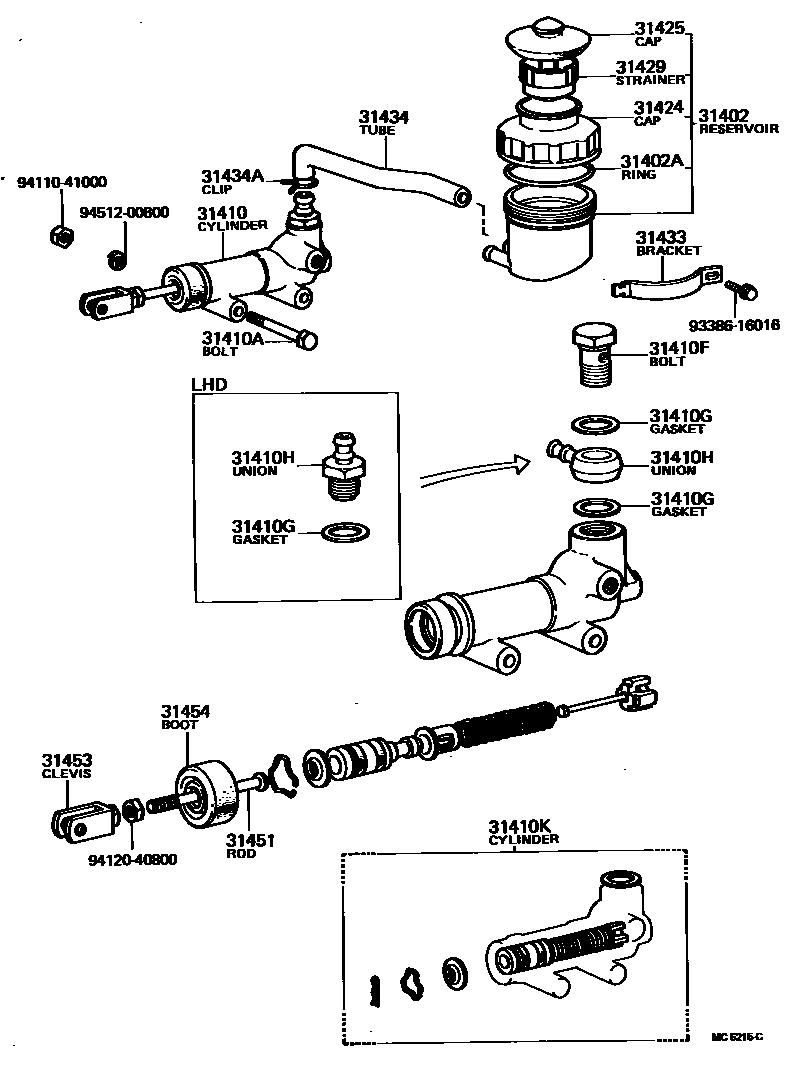

Toyota DYNA — CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47220-36010iBU2#,30,HU30,RU2#,30..EUR,GEN¥8,100197708-198101

sub47220-36011¥8,000

main47220-36011iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..EUR,GEN,GHI¥8,000198101-198411

main47220-36020iHU30,RU2#,30..ARL197905-198101

sub47220-36021

main47220-36021iBU20,32,36,HU30,40,50,RU20,30..ARL198101-198408

31402ARING, O(FOR RESERVOIR CAP SET)

main90301-59149iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥650197708-198411

31410CYLINDER ASSY, CLUTCH MASTER

main31420-36020iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥12,600197708-198411

sub31420-36021

main31420-36030iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD¥11,300197708-198408

sub31420-36031¥11,500

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40870iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥200197708-198411

sub91131-40870¥110

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥670197708-198411

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥190197708-198411

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90404-16307iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD¥610197708-198408

main90405-10125iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥1,940197708-198411

31410KCYLINDER KIT, CLUTCH MASTER

main04311-20050iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥2,280197708-198411

sub04311-14011¥2,880

31424CAP, RESERVOIR(FOR CLUTCH MASTER CYLINDER)

main31424-36010iBU2#,30,HU30,JU20,RU2#,30197708-198101

main31424-36011iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥750198101-198411

sub47230-20040¥640

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBU2#,30,HU30,JU20,RU2#,30¥720197708-198101

sub47230-20040¥640

main47230-25020iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥930198101-198411

31429STRAINER, MASTER CYLINDER RESERVOIR

main47299-25010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥410198101-198411

main47299-36010iBU2#,30,HU30,JU20,RU2#,30197708-198101

31433BRACKET, CLUTCH RESERVOIR

main47233-95600iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥630197708-198411

31434TUBE, CLUTCH RESERVOIR

main31434-36050iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD¥1,170197708-198411

main31434-36060iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD¥1,020197708-198408

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥200197708-198411

sub96132-51300¥120

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥820197708-198411

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥490197708-198411

sub31453-35010¥510

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥300197708-198411

9338616016

main93386-16016¥80

9411041000

main94110-41000¥160

9412040800

main94120-40800¥90

9451200800

main94512-00800¥80

21 parts on this diagram · 1 diagram in section
