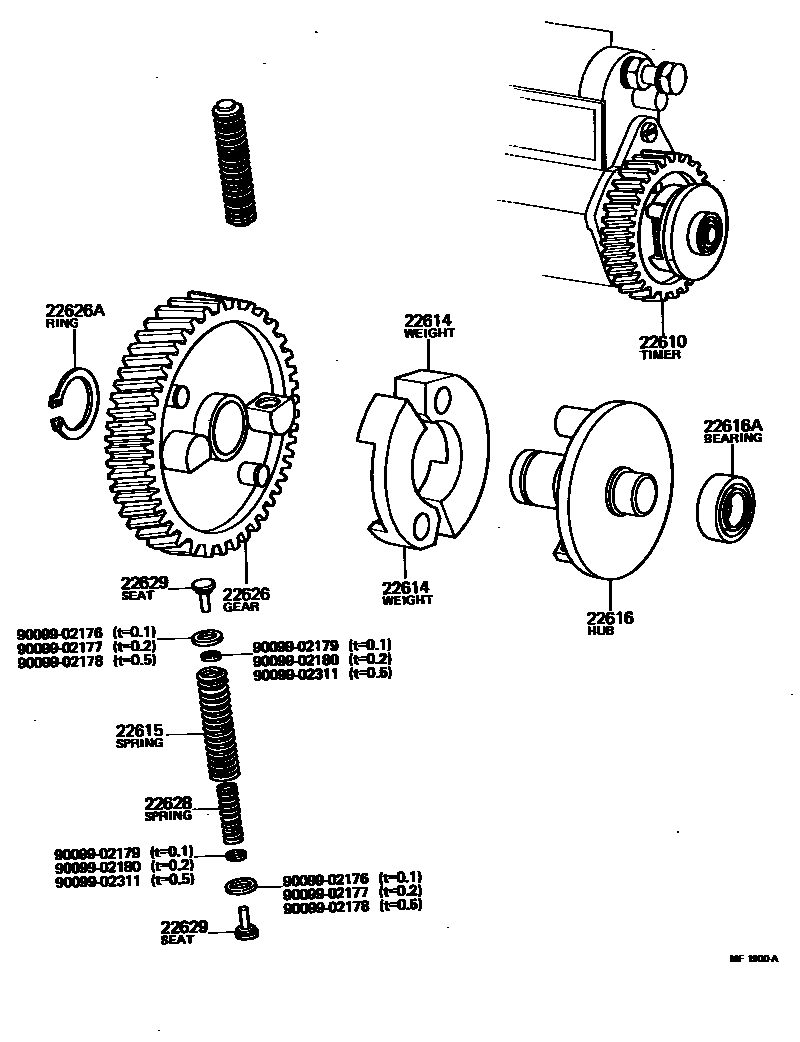

Toyota DYNA — AUTOMATIC TIMER

0001 1 0002 1 0004 1 0006 1

22610TIMER ASSY, AUTOMATIC

main22610-47020iH..HU30197708-198104

main22610-48020i2J..JU20¥56,800197708-197904

main22610-56020iB..BU2#,30197708-197904

main22610-56030iB..BU20,25,30;2B..BU31..CBU¥60,100197904-198411

main22610-56040i3B..BU32,36,40;2B,3B..BU23,31..IV3¥60,300198104-198408

main22610-68011i2H..HU40,50¥60,700198204-198408

main22610-78030i1W..WU40,50¥47,700198304-198408

22614WEIGHT, TIMER

main22614-48010iH..HU30197708-198104

main22614-56020iB,2B,3B..BU2#,3#,40197708-198411

main22614-68010i2H..HU40,50198204-198408

main22614-78030i1W..WU40,50198304-198408

22615SPRING, TIMER

main22615-47020iH..HU30197708-198104

main22615-48020i2J..JU20197708-197904

main22615-56010iB..BU2#,30197708-197904

main22615-56030iB..BU20,25,30;2B..BU31..CBU197904-198411

main22615-56040i3B..BU32,36,40;2B,3B..BU23,31..IV3198104-198408

main22615-68012i2H..HU40,50198204-198408

main22615-78030i1W..WU40,50198304-198408

22616HUB, TIMER

main22616-47020iH..HU30197708-198104

main22616-48020i2J..JU20197708-197904

main22616-56020iB..BU2#,30197708-197904

main22616-56030iB,2B,3B..BU2#,3#,40197904-198411

main22616-68011i2H..HU40,50198204-198408

main22616-78030i1W..WU40,50198304-198408

22616ABEARING(FOR TIMER HUB)

main90099-10018iB,2B,3B..BU2#,3#,40¥650197708-198411

22626GEAR, DRIVE

main22626-47020iH..HU30197708-198104

main22626-48020i2J..JU20197708-197904

main22626-56020iB..BU2#,30197708-197904

main22626-56030iB,2B,3B..BU2#,3#,40197904-198411

main22626-68010i2H..HU40,50198204-198408

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001iH..HU30197708-198411

main90096-90001i2J..JU20197708-197904

main90096-90021i2H..HU40,50198204-198408

22628SPRING, TIMER SUB

main22628-48020i2J..JU20197708-198104

main22628-56010iB..BU2#,30197708-197904

main22628-56030iB..BU20,25,30;2B..BU31..CBU197904-198411

main22628-68011i2H..HU40,50198204-198408

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-47010i2J..JU20197708-198411

main22629-68010i2H..HU40,50198204-198408

main22629-78030i1W..WU40,50198304-198408

9009902176

main90099-02176¥120

9009902177

main90099-02177

9009902178

main90099-02178

9009902179

main90099-02179

9009902180

main90099-02180

9009902311

main90099-02311¥0

15 parts on this diagram · 4 diagrams in section
